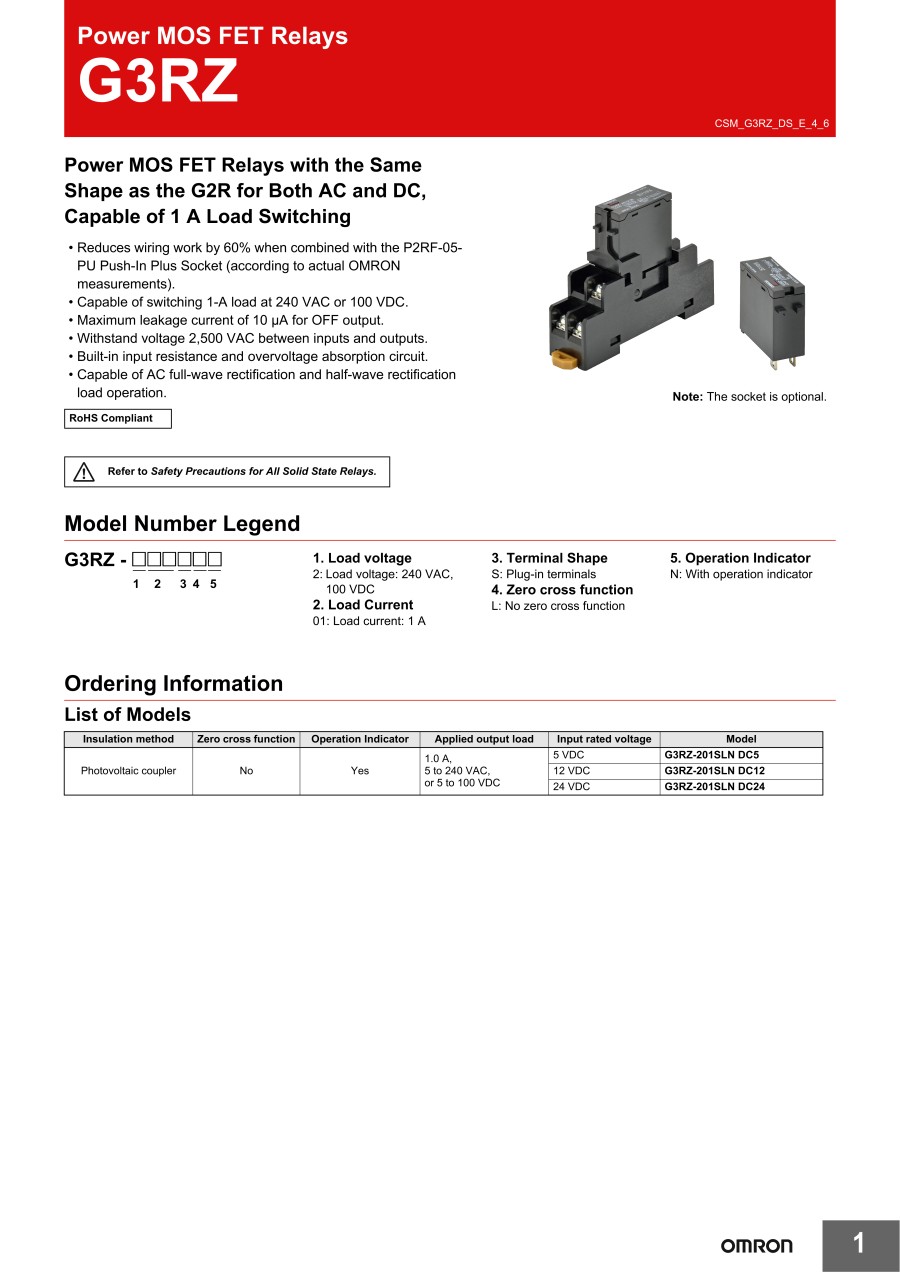

Power MOS FET Relay G3RZ
- Volume Discount
[Features]
· Same shape as model 7G2R, 1A load switching possible in this MOSFET relay with AC/DC.
· AC240V or DC100V, 1A load switching possible.
· Open state leakage current between outputs is 10 µA or less.
· Open state electrical resistance AC2, 500V.
· Built-in input resistance and overcurrent absorbing circuits.
· Can switch between AC full-wave rectification and half-wave rectification.
· Same shape as model 7G2R, 1A load switching possible in this MOSFET relay with AC/DC.
· AC240V or DC100V, 1A load switching possible.
· Open state leakage current between outputs is 10 µA or less.
· Open state electrical resistance AC2, 500V.
· Built-in input resistance and overcurrent absorbing circuits.
· Can switch between AC full-wave rectification and half-wave rectification.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| G3RZ-201SLN DC5 |
| G3RZ-201SLN DC12 |
| G3RZ-201SLN DC24 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Input rated voltage (V) | |
|---|---|---|---|---|---|
17.16 € | 1 | Available | 6 Days | DC5 | |
17.15 € | 1 | Available | 6 Days | DC12 | |
17.16 € | 1 | Available | 6 Days | DC24 |
Loading...
Basic information
| Application | SSR | Terminal shape | Socket / plug-in | Dimension height(mm) | 28 |
|---|---|---|---|---|---|
| Dimension width(mm) | 29 | Dimension depth(mm) | 13 | Insulation method | Photovoltaic coupler |
| Operation Indicator Lamp | Available | Applicable output load(A)/(V) | 100 µA to 1.0 A/ 3 to 264 VAC/ 3 to 125 VDC |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
