Crimp Relay Connector【20 Pieces Per Package】
- Volume Discount
A relay connector that does not require special crimping tools.
[Features]
· Male-female connections can be made with a single connector.
· No wire coating removal required.
· Easily connected with pliers.
· Can be used in a multi-lead capacity when joined to a connector.
[Features]
· Male-female connections can be made with a single connector.
· No wire coating removal required.
· Easily connected with pliers.
· Can be used in a multi-lead capacity when joined to a connector.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
NDC-2420
Part Number
|
|---|
| NDC-2420 |
| Part Number |
Standard Unit Price
| Number of pc(s). included in pkg. | Minimum order quantity | Volume Discount | RoHS | |
|---|---|---|---|---|---|---|
4.62 € | 20 Pieces Per Package | 1 pack | Available | 6 Days | 10 |
Loading...
Basic information
| Connector Shape | Round | Connector series initials | M/N/O | M/N/O | N |
|---|---|---|---|---|---|
| Applicable pin/contact | Not polarized | Number Of Cores | 1 | Application | Cable Connection |
| Allowable Current(A) | 3 | Allowable Voltage(V) | 100 | Wire connection method | Pressure Welding |
| Connection direction | Straight | Protection function (environmentally resistant) | N/A | Representative Standard | UL |
| Type | Relay Connector | Material | Polycarbonate | Color | Black/yellow transparent |

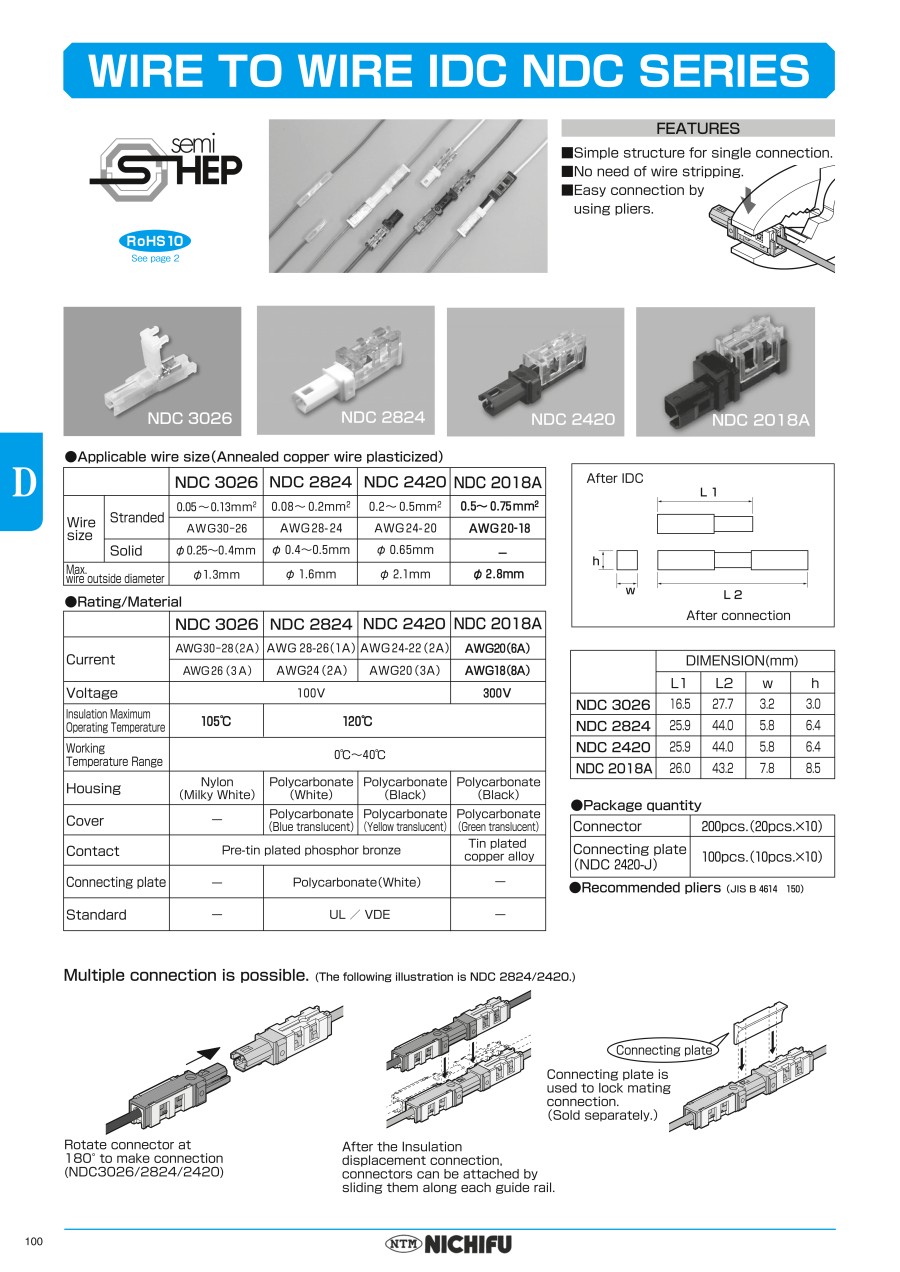

This page is Crimp Relay Connector, part number NDC-2420.
You can find the detail information about specifications and dimensions on part number NDC-2420.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
