Process Input Unit CS1W-P
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|

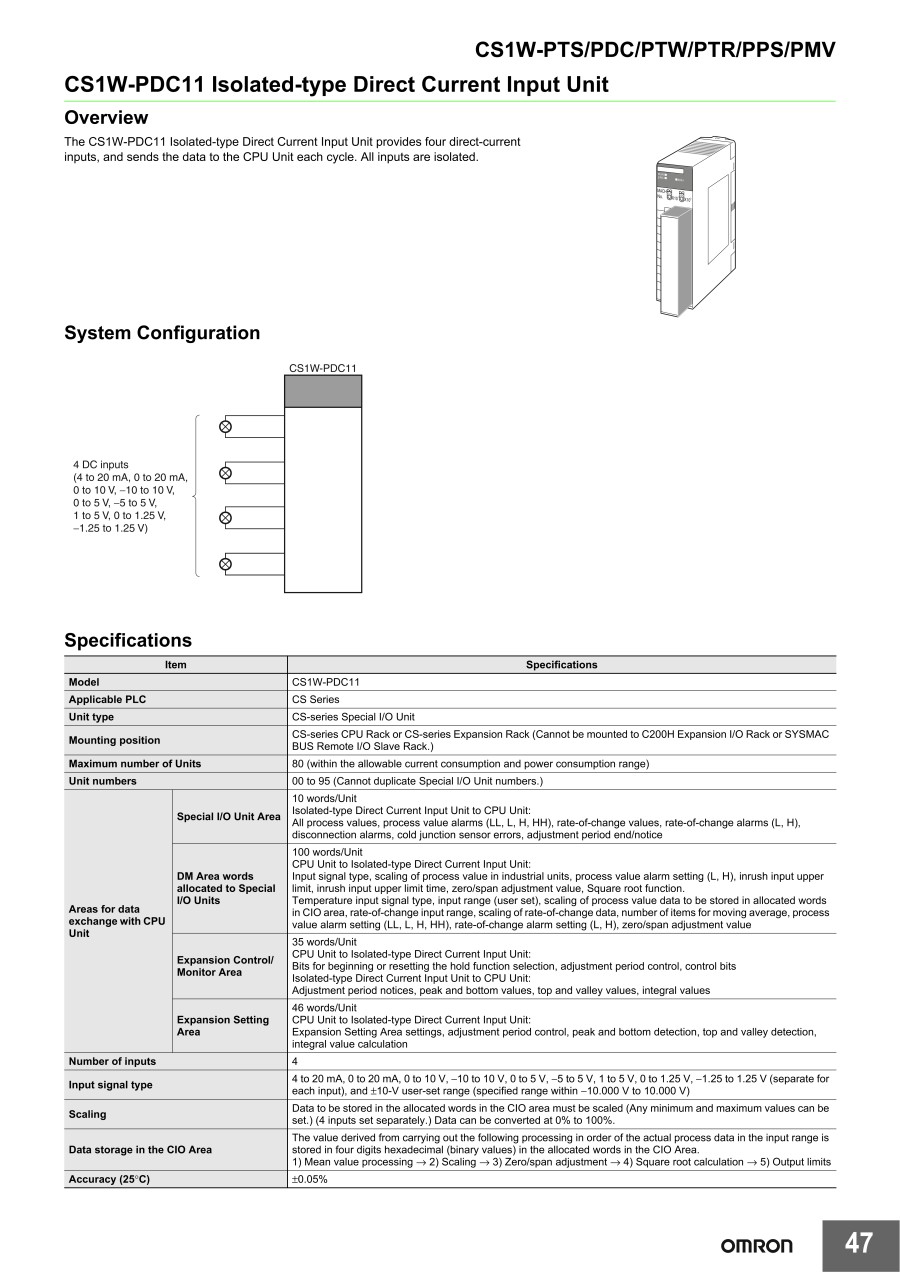

| CS1W-PDC11 |
| CS1W-PDC55 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Number of Input Channels | A/D Conversion Speed (Conversion Time) | Consumed current (5 V system) (A) | Consumed current (26V system) (A) | Input Signal Range | |
|---|---|---|---|---|---|---|---|---|---|
2,986.67 € | 1 | 7 Days | 4 | Less than 10 to 50 ms | 0.12 | 0.12 | 4 to 20 mA, 0 to 20 mA, 0 to 10 V, ±10 V, 0 to 5 V, ±5 V, 1 to 5 V, 0 to 1.25 V, ±1.25 V | ||
2,986.67 € | 1 | 7 Days | 8 | Less than 100 to 500 ms | 0.18 | 0.06 | 4 to 20 mA, 0 to 10 V, 0 to 5 V, 1 to 5 V |
Loading...
Basic information
| Type | Input | Input Type | Voltage / Current | Input Range | Other |
|---|---|---|---|---|---|
| Terminal shape | Terminal Block | Representative Standard | CE / UL / CUL / CSA |
Configure
Basic Attributes
-
Number of Input Channels
-
A/D Conversion Speed (Conversion Time)
- Less than 10 to 50 ms
- Less than 100 to 500 ms
-
Consumed current (5 V system)(A)
-
Consumed current (26V system)(A)
- 0.06
- 0.12
Filter by standard shipping days
-
- All
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
