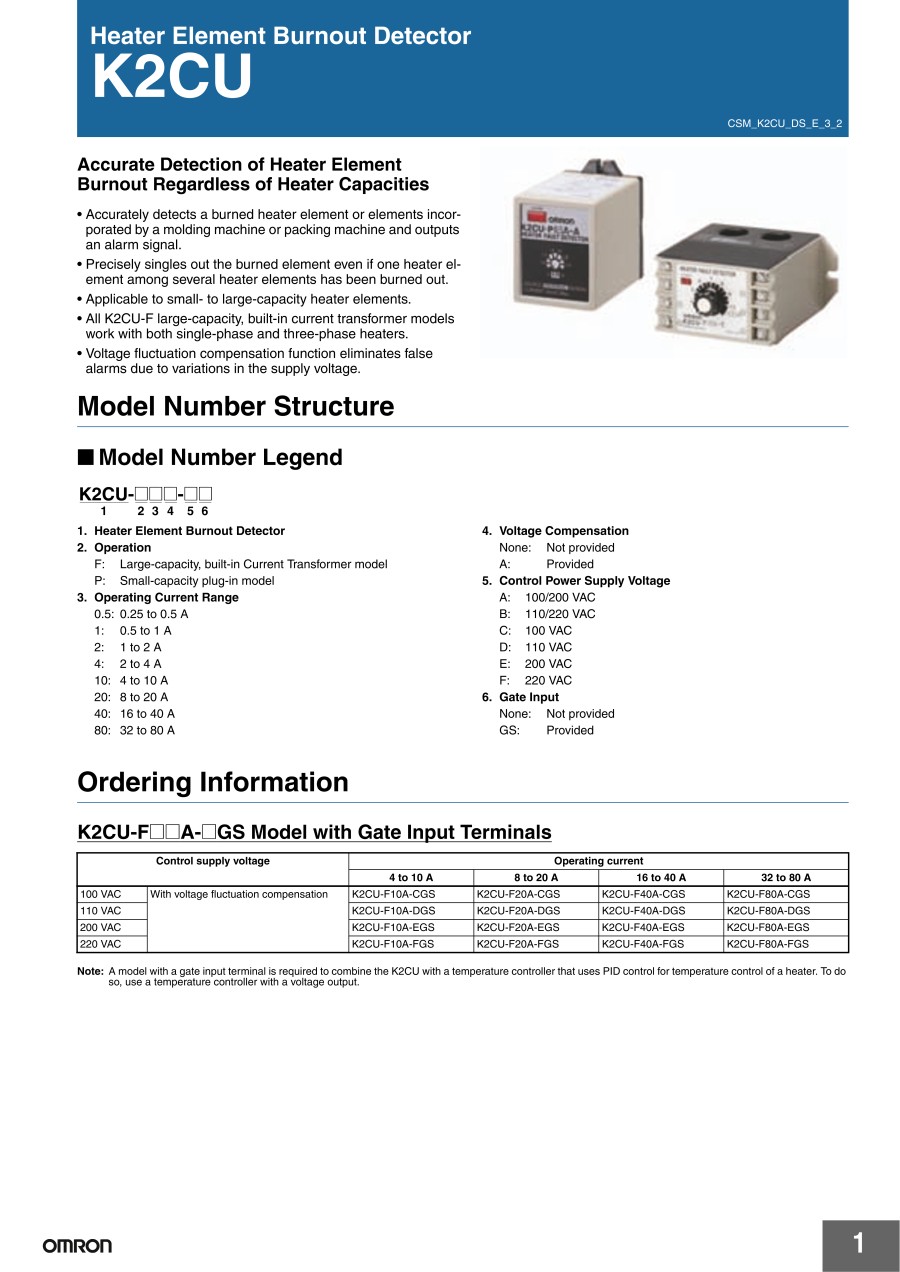

    Heater Burnout Alarm K2CU

    Heater Burnout Alarm K2CU

    Part number:

    Still undefined. 27 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    K2CU-F10A-C AC4-10A AC100
    K2CU-F10A-CGS
    K2CU-F10A-E AC4-10A AC200
    K2CU-F10A-EGS
    K2CU-F10A-F AC4-10A AC220
    K2CU-F10A-FGS
    K2CU-F20A-C AC8-20A AC100
    K2CU-F20A-CGS
    K2CU-F20A-E AC8-20A AC200
    K2CU-F20A-EGS
    K2CU-F20A-F AC8-20A AC220
    K2CU-F20A-FGS
    K2CU-F40A-C AC16-40A AC100
    K2CU-F40A-CGS
    K2CU-F40A-E AC16-40A AC200
    K2CU-F40A-EGS
    K2CU-F40A-F AC16-40A AC220
    K2CU-F40A-FGS
    K2CU-F80A-CGS
    K2CU-F80A-E AC32-80A AC200
    K2CU-F80A-EGS
    K2CU-F80A-FGS
    K2CU-P0.5A-A
    K2CU-P1A-A
    K2CU-P1A-B
    K2CU-P2A-A
    K2CU-P4A-A

    Operating Voltage

    (V)

    Terminal shape

    Dimension width

    (mm)

    Dimension: depth

    (mm)

    Main Unit Type

    Operating Current

    (A)

    		Minimum order quantity
    AC100
    Screw terminal
    90
    95
    Large capacity CT, integrated type
    AC4 to 10
    1 pieces
    AC100
    Screw terminal
    90
    95
    Includes gate input terminal type
    AC4 to 10
    1 pieces
    [Other] 200 AC
    Screw terminal
    90
    95
    Large capacity CT, integrated type
    AC4 to 10
    1 pieces
    [Other] 200 AC
    Screw terminal
    90
    95
    Includes gate input terminal type
    AC4 to 10
    1 pieces
    [Other] 220 AC
    Screw terminal
    90
    95
    Large capacity CT, integrated type
    AC4 to 10
    1 pieces
    [Other] 220 AC
    Screw terminal
    90
    95
    Includes gate input terminal type
    AC4 to 10
    1 pieces
    AC100
    Screw terminal
    90
    95
    Large capacity CT, integrated type
    AC8 to 20
    1 pieces
    AC100
    Screw terminal
    90
    95
    Includes gate input terminal type
    AC8 to 20
    1 pieces
    [Other] 200 AC
    Screw terminal
    90
    95
    Large capacity CT, integrated type
    AC8 to 20
    1 pieces
    [Other] 200 AC
    Screw terminal
    90
    95
    Includes gate input terminal type
    AC8 to 20
    1 pieces
    [Other] 220 AC
    Screw terminal
    90
    95
    Large capacity CT, integrated type
    AC8 to 20
    1 pieces
    [Other] 220 AC
    Screw terminal
    90
    95
    Includes gate input terminal type
    AC8 to 20
    1 pieces
    AC100
    Screw terminal
    90
    95
    Large capacity CT, integrated type
    AC16 to 40
    1 pieces
    AC100
    Screw terminal
    90
    95
    Includes gate input terminal type
    AC16 to 40
    1 pieces
    [Other] 200 AC
    Screw terminal
    90
    95
    Large capacity CT, integrated type
    AC16 to 40
    1 pieces
    [Other] 200 AC
    Screw terminal
    90
    95
    Includes gate input terminal type
    AC16 to 40
    1 pieces
    [Other] 220 AC
    Screw terminal
    90
    95
    Large capacity CT, integrated type
    AC16 to 40
    1 pieces
    [Other] 220 AC
    Screw terminal
    90
    95
    Includes gate input terminal type
    AC16 to 40
    1 pieces
    AC100
    Screw terminal
    90
    95
    Includes gate input terminal type
    AC32 to 80
    1 pieces
    [Other] 200 AC
    Screw terminal
    90
    95
    Large capacity CT, integrated type
    AC32 to 80
    1 pieces
    [Other] 200 AC
    Screw terminal
    90
    95
    Includes gate input terminal type
    AC32 to 80
    1 pieces
    [Other] 220 AC
    Screw terminal
    90
    95
    Includes gate input terminal type
    AC32 to 80
    1 pieces
    [Other] 100/200 AC
    Plug-In
    72
    89
    Small capacity, plug-in type
    AC0.25 to 0.5
    1 pieces
    [Other] 100/200 AC
    Plug-In
    72
    89
    Small capacity, plug-in type
    AC0.5 to 1
    1 pieces
    [Other] 110/220 AC
    Plug-In
    72
    89
    Small capacity, plug-in type
    AC0.5 to 1
    1 pieces
    [Other] 100/200 AC
    Plug-In
    72
    89
    Small capacity, plug-in type
    AC1 to 2
    1 pieces
    [Other] 100/200 AC
    Plug-In
    72
    89
    Small capacity, plug-in type
    AC2 to 4
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    115.19 €
    ( 137.08 € )
    6 working days
    115.19 €
    ( 137.08 € )
    6 working days
    117.71 €
    ( 140.07 € )
    6 working days
    115.19 €
    ( 137.08 € )
    6 working days
    115.19 €
    ( 137.08 € )
    6 working days
    115.19 €
    ( 137.08 € )
    6 working days
    115.19 €
    ( 137.08 € )
    6 working days
    115.19 €
    ( 137.08 € )
    6 working days
    115.19 €
    ( 137.08 € )
    6 working days
    115.19 €
    ( 137.08 € )
    6 working days
    155.31 €77.66 €
    ( 92.42 € )
    Stock item: 1 working dayAvailable for same-day shipping
    116.35 €
    ( 138.46 € )
    6 working days
    116.35 €
    ( 138.46 € )
    6 working days
    115.19 €
    ( 137.08 € )
    6 working days
    115.19 €
    ( 137.08 € )
    6 working days
    115.19 €
    ( 137.08 € )
    6 working days
    155.31 €77.66 €
    ( 92.42 € )
    Stock item: 1 working dayAvailable for same-day shipping
    115.19 €
    ( 137.08 € )
    6 working days
    115.19 €
    ( 137.08 € )
    6 working days
    115.19 €
    ( 137.08 € )
    6 working days
    116.30 €
    ( 138.40 € )
    6 working days
    115.19 €
    ( 137.08 € )
    6 working days
    112.25 €
    ( 133.58 € )
    6 working days
    112.25 €
    ( 133.58 € )
    6 working days
    112.25 €
    ( 133.58 € )
    6 working days
    112.25 €
    ( 133.58 € )
    6 working days
    112.25 €
    ( 133.58 € )
    6 working days
  • 1

    • More Information

    Basic information

    A K2CU heater burnout alarm.

    [Features]
    · Detects burnouts from small to large capacity heaters.
    · Detects heater burnout in molding and packing machinery, etc., and then outputs an alarm.
    · Boasts a high level of detection accuracy, enabling detection of single burned out wires, even when using multiple heaters.
    · Can be used with a wide range of heaters; from small to large capacity types.
    · A single K2CU-F large capacity integrated CT unit can be used for both single and triple-phase heaters.
    · The compensation function for fluctuations in voltage
    · means that false alarms will not occur due to fluctuations in heater current caused by fluctuations in the voltage from the power supply, ensuring that alarms only occur when applicable.
