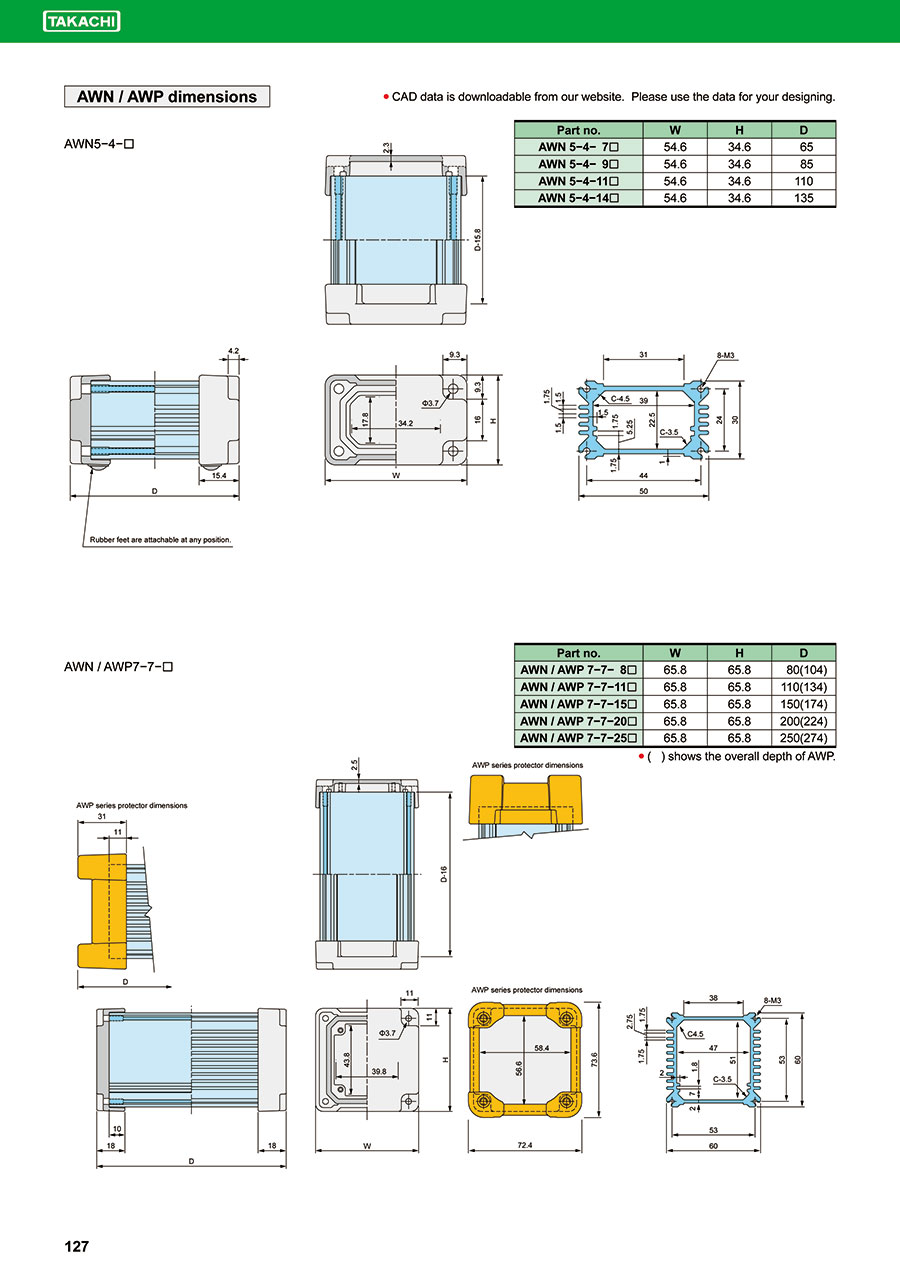

AWN Type Waterproof/ Dust Proof Aluminum Case
· An aluminum case which with a waterproof rating of IP67.
· Select from normal type or shield type.
· The body frame is formed by aluminum extruded heat sink and the panels are aluminum die-cast, giving a strong construction.
· There is an insert groove inside the body frame enabling the board and chassis to slide in.
· Can be used for measuring devices, power supply equipment, control boxes, or industrial cameras.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | W (mm) | H (mm) | D (mm) | Color specifications (Body) | Color specifications (Panel) | Presence of Key | Structure type | Thermal resistance (°C/W) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
24.93 € | 1 | 6 Days | 10 | 54.6 | 34.6 | 65 | Black | Black | - | Shield type | 11.2 | ||
24.93 € | 1 | 6 Days | 10 | 54.6 | 34.6 | 65 | Silver | Black | - | Shield type | 11.2 | ||
24.93 € | 1 | 6 Days | 10 | 54.6 | 34.6 | 65 | Silver | Silver | - | Shield type | 11.2 | ||
24.93 € | 1 | 6 Days | 10 | 54.6 | 34.6 | 65 | Black | Black | - | Normal type | 11.2 | ||
24.93 € | 1 | 6 Days | 10 | 54.6 | 34.6 | 65 | Silver | Black | - | Normal type | 11.2 | ||
24.93 € | 1 | 6 Days | 10 | 54.6 | 34.6 | 65 | Silver | Metallic Gray | - | Normal type | 11.2 | ||
25.65 € | 1 | 6 Days | 10 | 54.6 | 34.6 | 85 | Black | Black | - | Shield type | 9.18 | ||
25.65 € | 1 | 6 Days | 10 | 54.6 | 34.6 | 85 | Silver | Black | - | Shield type | 9.18 | ||
25.65 € | 1 | 6 Days | 10 | 54.6 | 34.6 | 85 | Silver | Silver | - | Shield type | 9.18 | ||
25.65 € | 1 | 6 Days | 10 | 54.6 | 34.6 | 85 | Black | Black | - | Normal type | 9.18 | ||
25.65 € | 1 | 6 Days | 10 | 54.6 | 34.6 | 85 | Silver | Black | - | Normal type | 9.18 | ||
25.65 € | 1 | 6 Days | 10 | 54.6 | 34.6 | 85 | Silver | Metallic Gray | - | Normal type | 9.18 | ||
26.75 € | 1 | 6 Days | 10 | 54.6 | 34.6 | 110 | Black | Black | - | Shield type | 7.64 | ||
26.75 € | 1 | 6 Days | 10 | 54.6 | 34.6 | 110 | Silver | Black | - | Shield type | 7.64 | ||
26.75 € | 1 | 6 Days | 10 | 54.6 | 34.6 | 110 | Silver | Silver | - | Shield type | 7.64 | ||
26.75 € | 1 | 6 Days | 10 | 54.6 | 34.6 | 110 | Black | Black | - | Normal type | 7.64 | ||
26.75 € | 1 | 6 Days | 10 | 54.6 | 34.6 | 110 | Silver | Black | - | Normal type | 7.64 | ||
26.75 € | 1 | 6 Days | 10 | 54.6 | 34.6 | 110 | Silver | Metallic Gray | - | Normal type | 7.64 | ||
27.67 € | 1 | 6 Days | 10 | 54.6 | 34.6 | 135 | Black | Black | - | Shield type | 6.63 | ||
27.67 € | 1 | 6 Days | 10 | 54.6 | 34.6 | 135 | Silver | Black | - | Shield type | 6.63 | ||
27.67 € | 1 | 6 Days | 10 | 54.6 | 34.6 | 135 | Silver | Silver | - | Shield type | 6.63 | ||
27.67 € | 1 | 6 Days | 10 | 54.6 | 34.6 | 135 | Black | Black | - | Normal type | 6.63 | ||
27.67 € | 1 | 6 Days | 10 | 54.6 | 34.6 | 135 | Silver | Black | - | Normal type | 6.63 | ||
27.67 € | 1 | 6 Days | 10 | 54.6 | 34.6 | 135 | Silver | Metallic Gray | - | Normal type | 6.63 | ||
36.46 € | 1 | 6 Days | 10 | 65.8 | 65.8 | 80 | Black | Black | - | Shield type | 4.41 | ||
36.46 € | 1 | 6 Days | 10 | 65.8 | 65.8 | 80 | Silver | Black | - | Shield type | 4.41 | ||
36.46 € | 1 | 6 Days | 10 | 65.8 | 65.8 | 80 | Silver | Silver | - | Shield type | 4.41 | ||
36.46 € | 1 | 6 Days | 10 | 65.8 | 65.8 | 80 | Black | Black | - | Normal type | 4.41 | ||
36.46 € | 1 | 6 Days | 10 | 65.8 | 65.8 | 80 | Silver | Black | - | Normal type | 4.41 | ||
36.46 € | 1 | 6 Days | 10 | 65.8 | 65.8 | 80 | Silver | Metallic Gray | - | Normal type | 4.41 | ||
38.53 € | 1 | 6 Days | 10 | 65.8 | 65.8 | 110 | Black | Black | - | Shield type | 3.5 | ||
38.53 € | 1 | 6 Days | 10 | 65.8 | 65.8 | 110 | Silver | Black | - | Shield type | 3.5 | ||
38.53 € | 1 | 6 Days | 10 | 65.8 | 65.8 | 110 | Silver | Silver | - | Shield type | 3.5 | ||
38.53 € | 1 | 6 Days | 10 | 65.8 | 65.8 | 110 | Black | Black | - | Normal type | 3.5 | ||
38.53 € | 1 | 6 Days | 10 | 65.8 | 65.8 | 110 | Silver | Black | - | Normal type | 3.5 | ||
38.53 € | 1 | 6 Days | 10 | 65.8 | 65.8 | 110 | Silver | Metallic Gray | - | Normal type | 3.5 | ||
41.10 € | 1 | 6 Days | 10 | 65.8 | 65.8 | 150 | Black | Black | - | Shield type | 2.83 | ||
41.10 € | 1 | 6 Days | 10 | 65.8 | 65.8 | 150 | Silver | Black | - | Shield type | 2.83 | ||
41.10 € | 1 | 6 Days | 10 | 65.8 | 65.8 | 150 | Silver | Silver | - | Shield type | 2.83 | ||
41.10 € | 1 | 6 Days | 10 | 65.8 | 65.8 | 150 | Black | Black | - | Normal type | 2.83 | ||
41.10 € | 1 | 6 Days | 10 | 65.8 | 65.8 | 150 | Silver | Black | - | Normal type | 2.83 | ||
41.10 € | 1 | 6 Days | 10 | 65.8 | 65.8 | 150 | Silver | Metallic Gray | - | Normal type | 2.83 | ||
44.52 € | 1 | 6 Days | - | 65.8 | 65.8 | 200 | Black | Black | - | Shield type | 2.33 | ||
44.52 € | 1 | 6 Days | 10 | 65.8 | 65.8 | 200 | Silver | Black | - | Shield type | 2.33 | ||
44.52 € | 1 | 6 Days | 10 | 65.8 | 65.8 | 200 | Silver | Silver | - | Shield type | 2.33 | ||
44.52 € | 1 | 6 Days | 10 | 65.8 | 65.8 | 200 | Black | Black | - | Normal type | 2.33 | ||
44.52 € | 1 | 6 Days | 10 | 65.8 | 65.8 | 200 | Silver | Black | - | Normal type | 2.33 | ||
44.52 € | 1 | 6 Days | 10 | 65.8 | 65.8 | 200 | Silver | Metallic Gray | - | Normal type | 2.33 | ||
48.15 € | 1 | 6 Days | 10 | 65.8 | 65.8 | 250 | Black | Black | - | Shield type | 2.02 | ||
48.15 € | 1 | 6 Days | 10 | 65.8 | 65.8 | 250 | Silver | Black | - | Shield type | 2.02 | ||
48.15 € | 1 | 6 Days | 10 | 65.8 | 65.8 | 250 | Silver | Silver | - | Shield type | 2.02 | ||
48.15 € | 1 | 6 Days | 10 | 65.8 | 65.8 | 250 | Black | Black | - | Normal type | 2.02 | ||
48.15 € | 1 | 6 Days | 10 | 65.8 | 65.8 | 250 | Silver | Black | - | Normal type | 2.02 | ||
48.15 € | 1 | 6 Days | 10 | 65.8 | 65.8 | 250 | Silver | Metallic Gray | - | Normal type | 2.02 | ||
35.82 € | 1 | 6 Days | 10 | 80.8 | 45.8 | 90 | Black | Black | - | Shield type | 5.97 | ||
35.82 € | 1 | 6 Days | 10 | 80.8 | 45.8 | 90 | Silver | Black | - | Shield type | 5.97 | ||
35.82 € | 1 | 6 Days | 10 | 80.8 | 45.8 | 90 | Silver | Silver | - | Shield type | 5.97 | ||
35.82 € | 1 | 6 Days | 10 | 80.8 | 45.8 | 90 | Black | Black | - | Normal type | 5.97 | ||
35.82 € | 1 | 6 Days | 10 | 80.8 | 45.8 | 90 | Silver | Black | - | Normal type | 5.97 | ||
35.82 € | 1 | 6 Days | 10 | 80.8 | 45.8 | 90 | Silver | Metallic Gray | - | Normal type | 5.97 |
Loading...
Basic information
| Material | Aluminum | Mounting Base | There are optional items | Installation location | Indoor |
|---|---|---|---|---|---|
| Rubber Feet | Polyurethane / Black | Operating Temperature Range(°C) | -40 to 105 |
Configure
Basic Attributes
-
W(mm)
-
H(mm)
-
D(mm)
-
Color specifications(Body)
-
Color specifications(Panel)
- Black
- Metallic Gray
- Silver
-
Presence of Key
- NA
-
Structure type
- Normal type
- Shield type
-
Thermal resistance(°C/W)
-
Filter by CAD data type
- 2D
Filter by standard shipping days
-
- All
- 5 Days or Less
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
