XLR Series Receptacle (Square Flange)
- Volume Discount
[Features]
· The surface finish does not reflect light. A satin finish has been applied to prevent diffusion caused by illumination or outdoor lighting.
· A vibration-resistant structure for withstanding severe environments, such as filming locations, etc. Utilizes a synthetic rubber for the socket insulators (female side) for dampening vibrations and noise.
· A one-touch lock latching method is utilized to enable simple connector mating and removal.

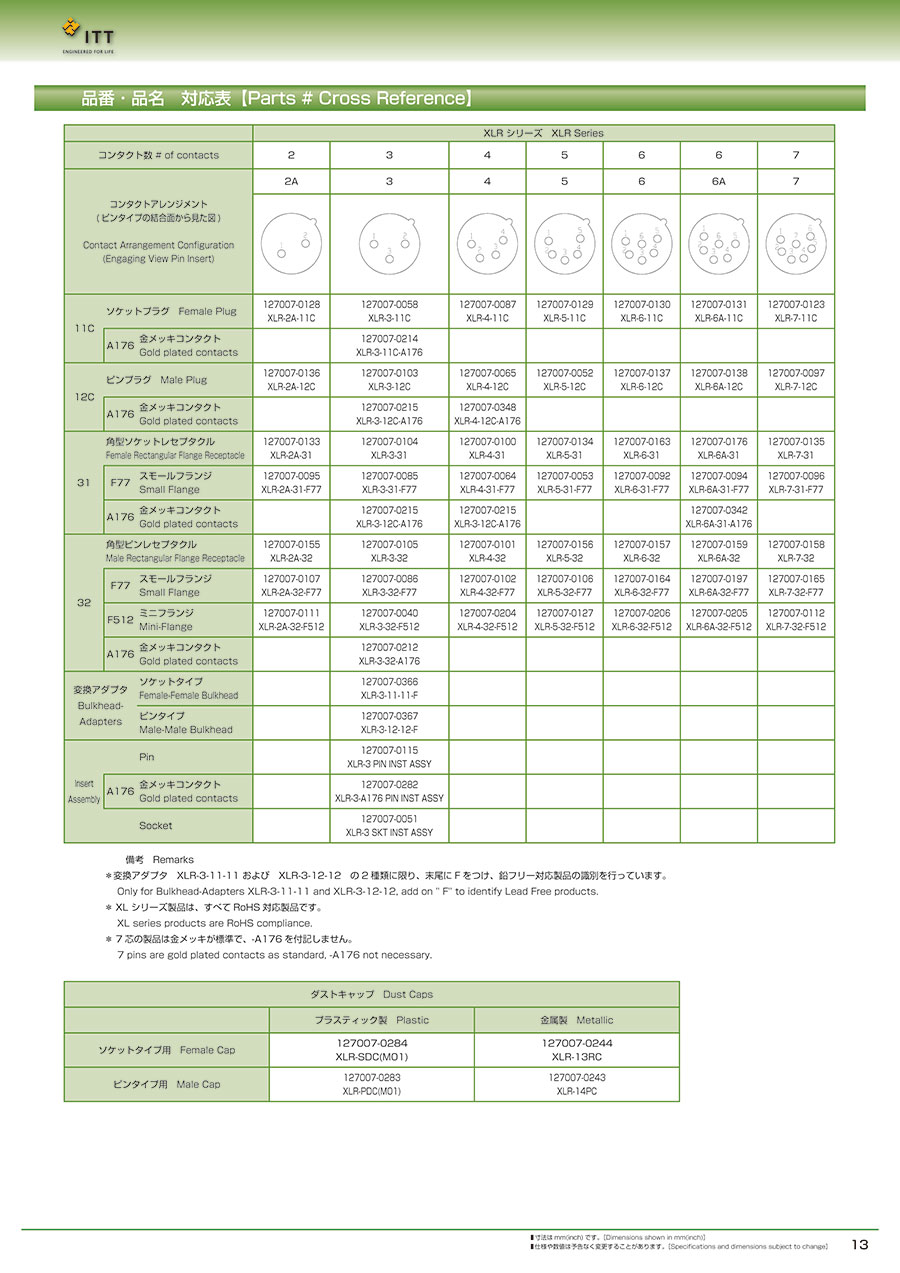

Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| XLR-2A-31 |
| XLR-2A-32 |
| XLR-3-31 |
| XLR-3-32 |
| XLR-4-31 |
| XLR-4-32 |
| XLR-5-31 |
| XLR-5-32 |
| XLR-6-31 |
| XLR-6-32 |
| XLR-7-32 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Applicable pin/contact | Number Of Cores | Allowable Current (A) | Allowable Voltage (V) | Contact arrangement | Shell style | Applicable wire (maximum) (AWG) | Wire cross-sectional area (maximum) (mm2) | Contact material: Finished | Panel cut dimensions φ ((mm) reference value) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
19.61 € | 1 | 6 Days | 10 | Female (socket) | 2 | 15 | 200 | 2A | Square socket receptacle | 14 | 2.1 | Copper alloy/silver plated | 25 | ||
7.56 € | 1 | Available | 6 Days | 10 | Male (plug) | 2 | 15 | 200 | 2A | Square Pin Receptacle | 14 | 2.1 | Copper alloy/silver plated | 20.5 | |
18.50 € | 1 | Available | 6 Days | 10 | Female (socket) | 3 | 15 | 133 | 3 | Square socket receptacle | 14 | 2.1 | Copper alloy/silver plated | 25 | |
8.97 € | 1 | Available | 6 Days | 10 | Male (plug) | 3 | 15 | 133 | 3 | Square Pin Receptacle | 14 | 2.1 | Copper alloy/silver plated | 20.5 | |
20.31 € | 1 | Available | 6 Days | 10 | Female (socket) | 4 | 10 | 133 | 4 | Square socket receptacle | 16 | 1.3 | Copper alloy/silver plated | 25 | |
10.17 € | 1 | Available | 6 Days | 10 | Male (plug) | 4 | 10 | 133 | 4 | Square Pin Receptacle | 16 | 1.3 | Copper alloy/silver plated | 20.5 | |
15.73 € | 1 | Available | 6 Days | 10 | Female (socket) | 5 | 7.5 | 133 | 5 | Square socket receptacle | 18 | 0.8 | Copper alloy/silver plated | 25 | |
12.91 € | 1 | Available | 6 Days | 10 | Male (plug) | 5 | 7.5 | 133 | 5 | Square Pin Receptacle | 18 | 0.8 | Copper alloy/silver plated | 20.5 | |
29.87 € | 1 | Available | 6 Days | 10 | Female (socket) | 6 | 7.5 | 133 | 6 | Square socket receptacle | 18 | 0.8 | Copper alloy/silver plated | 25 | |
18.27 € | 1 | Available | 6 Days | 10 | Male (plug) | 6 | 7.5 | 133 | 6 | Square Pin Receptacle | 18 | 0.8 | Copper alloy/silver plated | 20.5 | |
20.31 € | 1 | Available | 6 Days | 10 | Male (plug) | 7 | 5 | 133 | 7 | Square Pin Receptacle | 20 | 0.5 | Copper alloy/gold plated | 20.5 |
Loading...
Basic information
| Connector Shape | Round | Connector series initials | V/W/X | V/W/X | XLR |
|---|---|---|---|---|---|
| Application | Panel Mount | Wire connection method | Solder | Connection direction | Straight |
| Protection function (environmentally resistant) | N/A | Operating Temperature Range(°C) | -35 to +125 |
Configure
Basic Attributes
-
Applicable pin/contact
- Male (plug)
- Female (socket)
-
Number Of Cores
-
Allowable Current(A)
-
Allowable Voltage(V)
-
Contact arrangement
- 2A
- 3
- 4
- 5
- 6
- 7
-
Shell style
- Square Pin Receptacle
- Square socket receptacle
Filter by standard shipping days
-
- All
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
