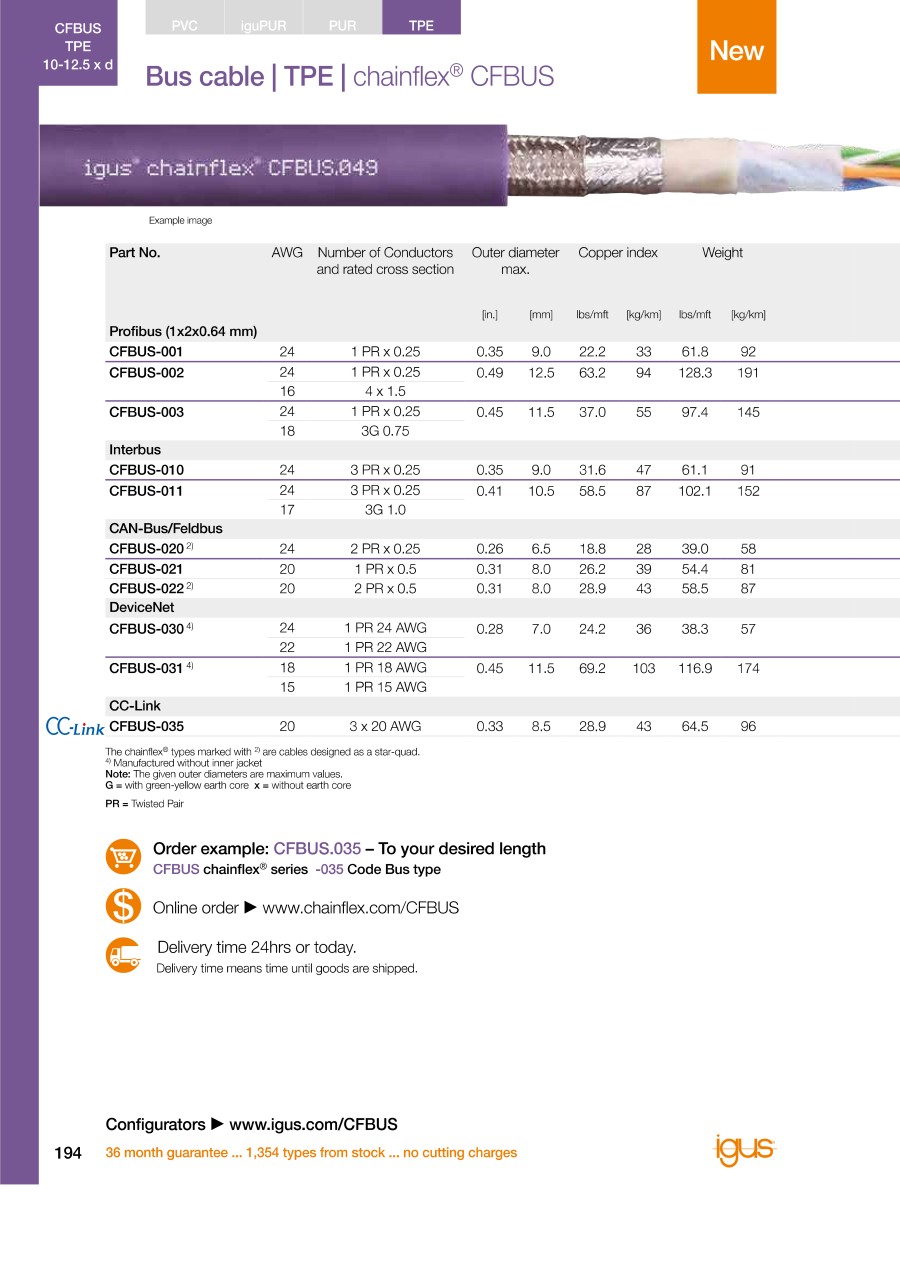

Chain Flex CFBUS- Bus Cable
● Supports high loads
● TPE jacketing
● Oil, bio-oil, and coolant resistant
● Flame retardant
● Hydrolysis and microbial degradation resistant
Application
● For use indoors and outdoors where not exposed to direct sunlight
● Particularly suited to free-span travel and sliding travel (maximum length 400m)
● Ideal as bus connection cable for automated warehouse management and delivery systems, machine tools, applications requiring fast movements, clean rooms, semiconductor conveying devices, indoor cranes, low temperature environment applications, etc.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Overall Length (m) | |
|---|---|---|---|---|---|---|
18.15 € | 1 | 6 Days | 10 | 1 | ||
36.31 € | 1 | 6 Days | 10 | 2 | ||
54.46 € | 1 | 6 Days | 10 | 3 | ||
72.62 € | 1 | 6 Days | 10 | 4 | ||
90.77 € | 1 | 6 Days | 10 | 5 | ||
108.89 € | 1 | 6 Days | 10 | 6 | ||
127.05 € | 1 | 6 Days | 10 | 7 | ||
145.20 € | 1 | 6 Days | 10 | 8 | ||
163.35 € | 1 | 6 Days | 10 | 9 | ||
181.51 € | 1 | 6 Days | 10 | 10 | ||
199.66 € | 1 | 6 Days | 10 | 11 | ||
217.82 € | 1 | 6 Days | 10 | 12 | ||
235.97 € | 1 | 6 Days | 10 | 13 | ||
254.12 € | 1 | 6 Days | 10 | 14 | ||
272.28 € | 1 | 6 Days | 10 | 15 | ||
290.40 € | 1 | 6 Days | 10 | 16 | ||
308.55 € | 1 | 6 Days | 10 | 17 | ||
326.71 € | 1 | 6 Days | 10 | 18 | ||
344.86 € | 1 | 6 Days | 10 | 19 | ||
363.02 € | 1 | 6 Days | 10 | 20 | ||
381.17 € | 1 | 6 Days | 10 | 21 | ||
399.32 € | 1 | 6 Days | 10 | 22 | ||
417.48 € | 1 | 6 Days | 10 | 23 | ||
435.63 € | 1 | 6 Days | 10 | 24 | ||
453.78 € | 1 | 6 Days | 10 | 25 | ||
471.91 € | 1 | 6 Days | 10 | 26 | ||
490.06 € | 1 | 6 Days | 10 | 27 | ||
508.22 € | 1 | 6 Days | 10 | 28 | ||
526.37 € | 1 | 6 Days | 10 | 29 | ||
544.52 € | 1 | 6 Days | 10 | 30 | ||
562.68 € | 1 | 6 Days | 10 | 31 | ||
580.83 € | 1 | 6 Days | 10 | 32 | ||
598.98 € | 1 | 6 Days | 10 | 33 | ||
617.14 € | 1 | 6 Days | 10 | 34 | ||
635.29 € | 1 | 6 Days | 10 | 35 | ||
653.42 € | 1 | 6 Days | 10 | 36 | ||
671.57 € | 1 | 6 Days | 10 | 37 | ||
689.72 € | 1 | 6 Days | 10 | 38 | ||
707.88 € | 1 | 6 Days | 10 | 39 | ||
726.03 € | 1 | 6 Days | 10 | 40 | ||
744.18 € | 1 | 6 Days | 10 | 41 | ||
762.34 € | 1 | 6 Days | 10 | 42 | ||
780.49 € | 1 | 6 Days | 10 | 43 | ||
798.65 € | 1 | 6 Days | 10 | 44 | ||
816.80 € | 1 | 6 Days | 10 | 45 | ||
834.92 € | 1 | 6 Days | 10 | 46 | ||
853.08 € | 1 | 6 Days | 10 | 47 | ||
871.23 € | 1 | 6 Days | 10 | 48 | ||
889.38 € | 1 | 6 Days | 10 | 49 | ||
907.54 € | 1 | 6 Days | 10 | 50 | ||
925.69 € | 1 | 6 Days | 10 | 51 | ||
943.85 € | 1 | 6 Days | 10 | 52 | ||
962.00 € | 1 | 6 Days | 10 | 53 | ||
980.15 € | 1 | 6 Days | 10 | 54 | ||
998.31 € | 1 | 6 Days | 10 | 55 | ||
1,016.43 € | 1 | 6 Days | 10 | 56 | ||
1,034.58 € | 1 | 6 Days | 10 | 57 | ||
1,052.74 € | 1 | 6 Days | 10 | 58 | ||
1,070.89 € | 1 | 6 Days | 10 | 59 | ||
1,089.05 € | 1 | 6 Days | 10 | 60 |
Loading...
Basic information
| AWG size(AWG) | 20 | Number Of Cores(Core) | 3 | Finished outer diameter(mm) | 8.5 |
|---|---|---|---|---|---|
| Rated Voltage | 50V | Shield | Tin plated copper braid | Properties | Oil Resistance |
| Representative Standard | UL / CE / CSA(c-UL) | Sheath (outer coating) color | Purple | Grounding Wire | No grounding conductor |
| Sheath (outer coating) material | Low adhesiveness TPE admixture | Minimum bending radius while running(mm) | 85 | Minimum bending radius when fixed(mm) | 42.5 |
| Free span maximum running speed(m/s) | 10 | Slide maximum running speed(m/s) | 6 | Maximum acceleration(m/s2) | 100 |
| Stroke | Up to 400m | Other standards | ISO class 1 (IPA): Clean room compatible/ CEI: Italian standard/ DESINA/ NFPA 79-2012: Used of UL (AWM) cable allowed | Other cable properties | Flame retardant and silicone free |
| Note 1 | Characteristic impedance 110 Ω, and UL style 1589/21371, 30V, 80°C |
Configure
Basic Attributes
-
Overall Length(m)
Filter by standard shipping days
-
- All
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
