Spring Type Connector, 733 Series, 2.5 mm Pitch, Female - Compact and Optimal for Sensor Connection.

Spring Type Connector, 733 Series, 2.5 mm Pitch, Female - Compact and Optimal for Sensor Connection.
  • Volume Discount

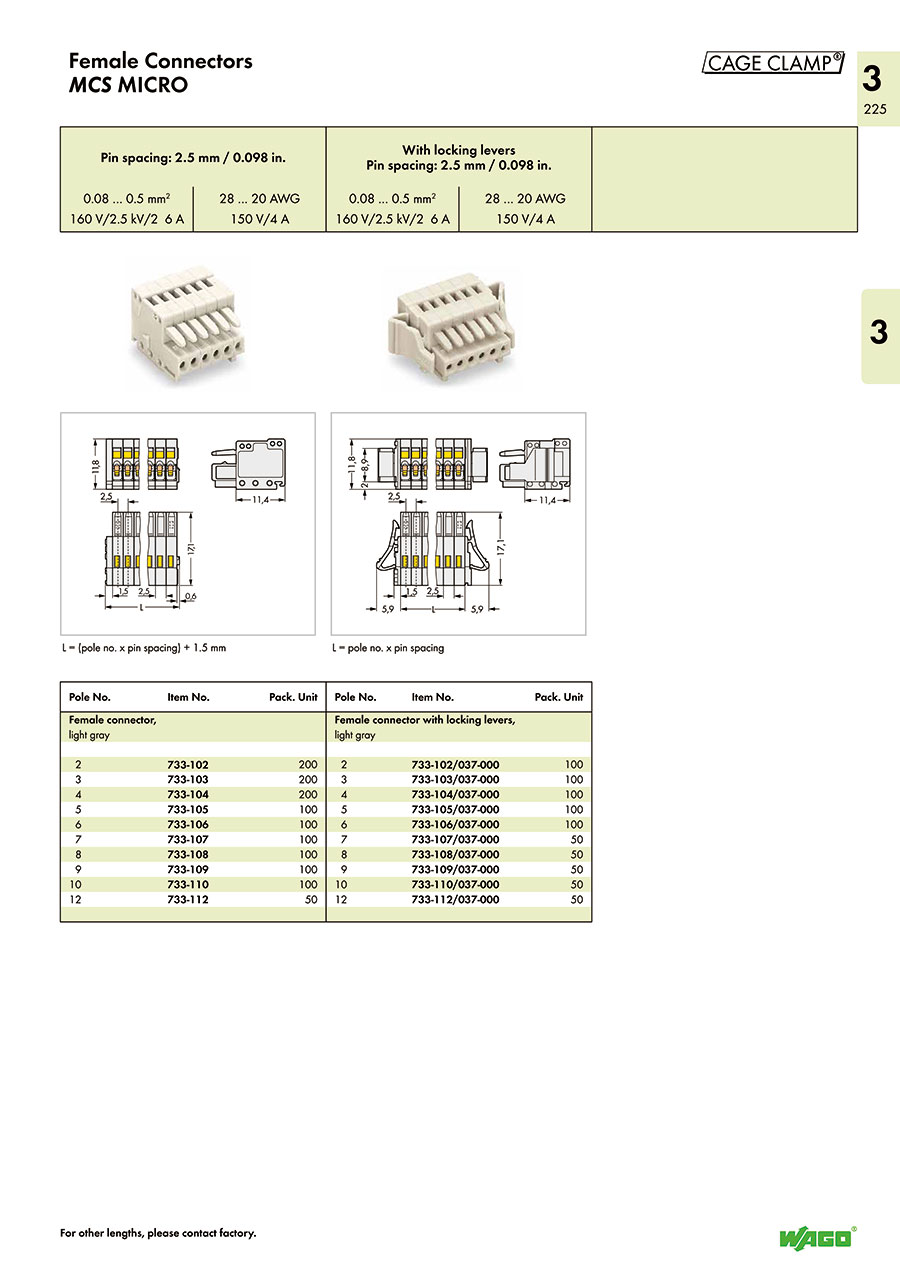

Male side can be connected to 733-200 with the female side of a spring-type connector, and the corresponding circuit board can be connected to 733-300 series connectors. The connector is ideal for sensor wires since it is very compact.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
733-102/037-000
733-103/037-000
733-104/037-000
733-105/037-000
733-106/037-000
733-107/037-000
733-108/037-000
733-110/037-000
733-112/037-000
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSNumber Of Cores

2.77 €

1 Available 5 Days 102

3.61 €

1 Available 5 Days 103

4.37 €

1 Available 5 Days 104

5.10 €

1 Available 5 Days 105

5.82 €

1 Available 5 Days 106

6.55 €

1 Available 5 Days 107

7.28 €

1 Available 5 Days 108

8.73 €

1 Available 5 Days 1010

10.19 €

1 Available 5 Days 1012

Loading...

  1. 1

Basic information

Connector Shape Square shape Connector series initials M/N/O M/N/O MCS-MICRO
Applicable pin/contact Female (socket) Application Cable Connection Allowable Current(A) 4
Allowable Voltage(V) 150 Wire connection method Screwless Connection direction Straight
Representative Standard UL / CUL / CSA Product Type With locking device Color Light Gray
Pin pitch(mm) 2.5 Conforming Wire Single wire / Flexible stranded wire Single wire conforming cross-section(mm2) 0.08 to 0.5
Flexible stranded wire Conforming cross-sectional area(mm2) 0.08 to 0.5 Wire conforming size(AWG) 28 to 20 Maximum Outer Diameter of Coat(mm) 2.2
Insulation materials Nylon 6.6 Flame-Retardant Grade UL94/V0 Contact materials Copper Alloy
Contact surface treatment Tin Plating Supported accessories Marking accessories/operating tools/direct printing/test pin/strain relief plate
