Micro-Lock 1.25 mm Pitch System (504186)
- Volume Discount
The Micro-Lock 1.25 mm pitch system is available for 1-row and 2-row versions and as straight and right-angled types.
The 1-row version is available for 2 to 16 pins, while the 2-row version is available for 16 to 40 pins. This system
supports environmental standards by using low-halogen materials in the housings and harnesses.
In addition to the natural color of the standard products, colored articles are also available to fit the (coupling) application.
[Main Features]
· The buckling prevention function prevents header pins from bending when coupling
· Small and low-profile space-saving design
· Despite being tin-plated, it realizes a low-insertion force and easy removal
· Equipped with a positive lock for improved mechanical stability, coupling retention and a clicking sensation to inform the user when coupling has taken place
· Despite its 1.25 mm pitch, it supports 26 AWG and realizes 1.5 A pins, providing greater design freedom.
The 1-row version is available for 2 to 16 pins, while the 2-row version is available for 16 to 40 pins. This system
supports environmental standards by using low-halogen materials in the housings and harnesses.
In addition to the natural color of the standard products, colored articles are also available to fit the (coupling) application.
[Main Features]
· The buckling prevention function prevents header pins from bending when coupling
· Small and low-profile space-saving design
· Despite being tin-plated, it realizes a low-insertion force and easy removal
· Equipped with a positive lock for improved mechanical stability, coupling retention and a clicking sensation to inform the user when coupling has taken place
· Despite its 1.25 mm pitch, it supports 26 AWG and realizes 1.5 A pins, providing greater design freedom.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
504186-1600
Part Number
|
|---|
| 504186-1600 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | |
|---|---|---|---|---|---|
0.37 € | 1 | 5 Days |
Loading...
Basic information
| Connector Shape | Square shape | Connector series initials | Number | Applicable pin/contact | Female (socket) |
|---|---|---|---|---|---|
| Number Of Cores | 16 | Application | Cable Connection | Allowable Current(A) | 26 AWG: 1.5 / 28 AWG: 1.0 / 30 AWG: 1.0 |
| Allowable Voltage(V) | 50 | Connection direction | Straight | Pitch(mm) | 1.25 |
| Mating Partner | 504187, 504189 | Panel Mount | NA | Number of rows | 2 |
| Color | White | Material | PBT | Flame-retardant grade | UL94V-0 |
| Conforming terminal | 504185-1000 |

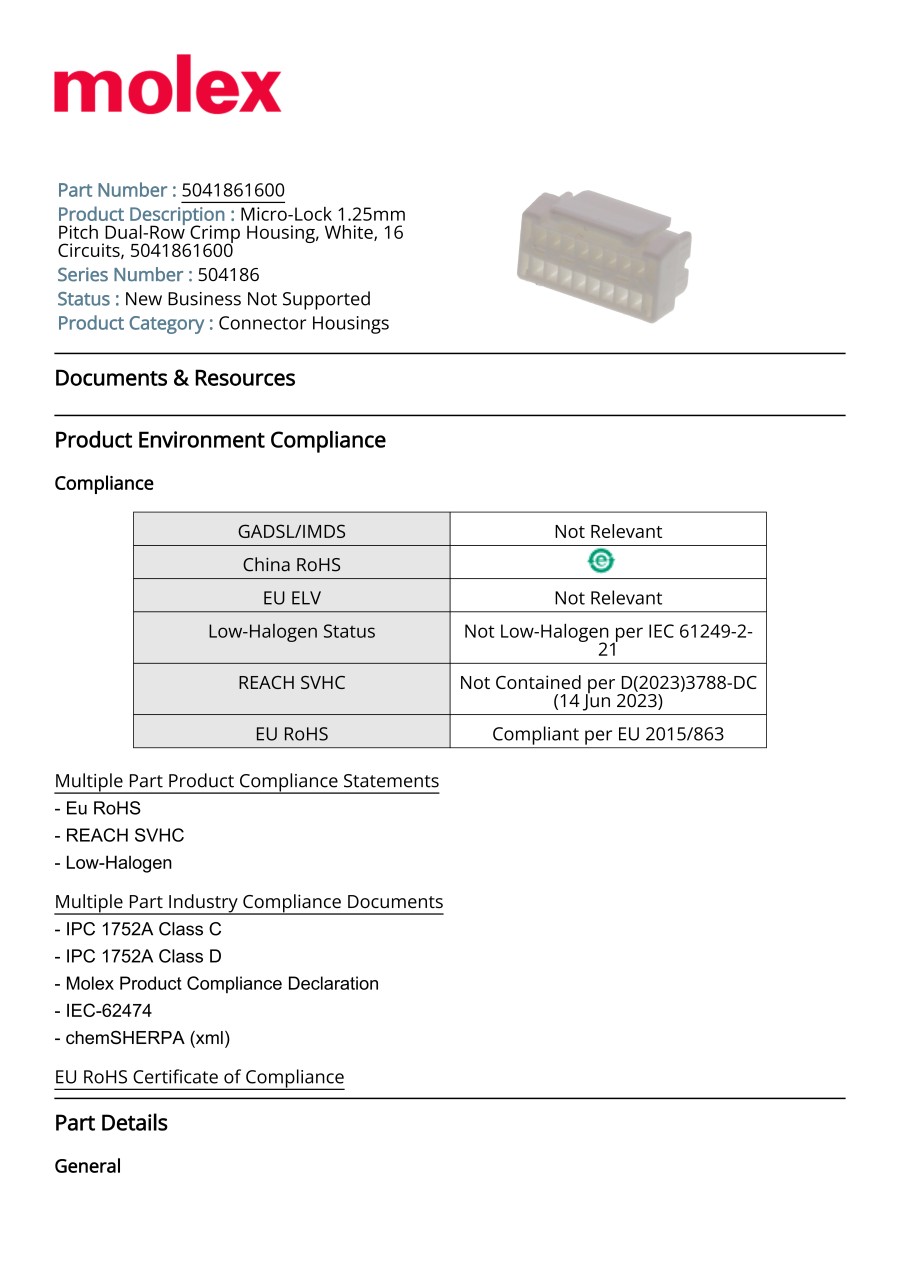

This page is Micro-Lock 1.25 mm Pitch System (504186), part number 504186-1600.
You can find the detail information about specifications and dimensions on part number 504186-1600.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
