Configure

Overall Length(m)
- 50
- 500
- 1000
Number Of Cores(Core)
- 2
- 3
- 4
- 5
Finished outer diameter(mm)
- 6.4
- 6.8
- 7.3
- 7.6
- 7.8
- 8.2
- 8.3
- 9
- 9.2
- 9.6
- 9.7
- 11
- 12
Coat Material
- PUR (Polyurethan)
- TMPU
Conductor Nominal cross-section
- 0.75
- 1
- 1.5
- 2.5
Perm. External cable temperature during installation / handling
- -15°C to +80°C
Perm. External cable temperature after mounting without vibration
- -40°C to +80°C
Conductor class
- Kl.5 = fine wired
- fine wired
Stranding
- Core
protective conductor
- no
- yes
oil resistance
- no
Est. shipping days
- All
- Within 5 working days

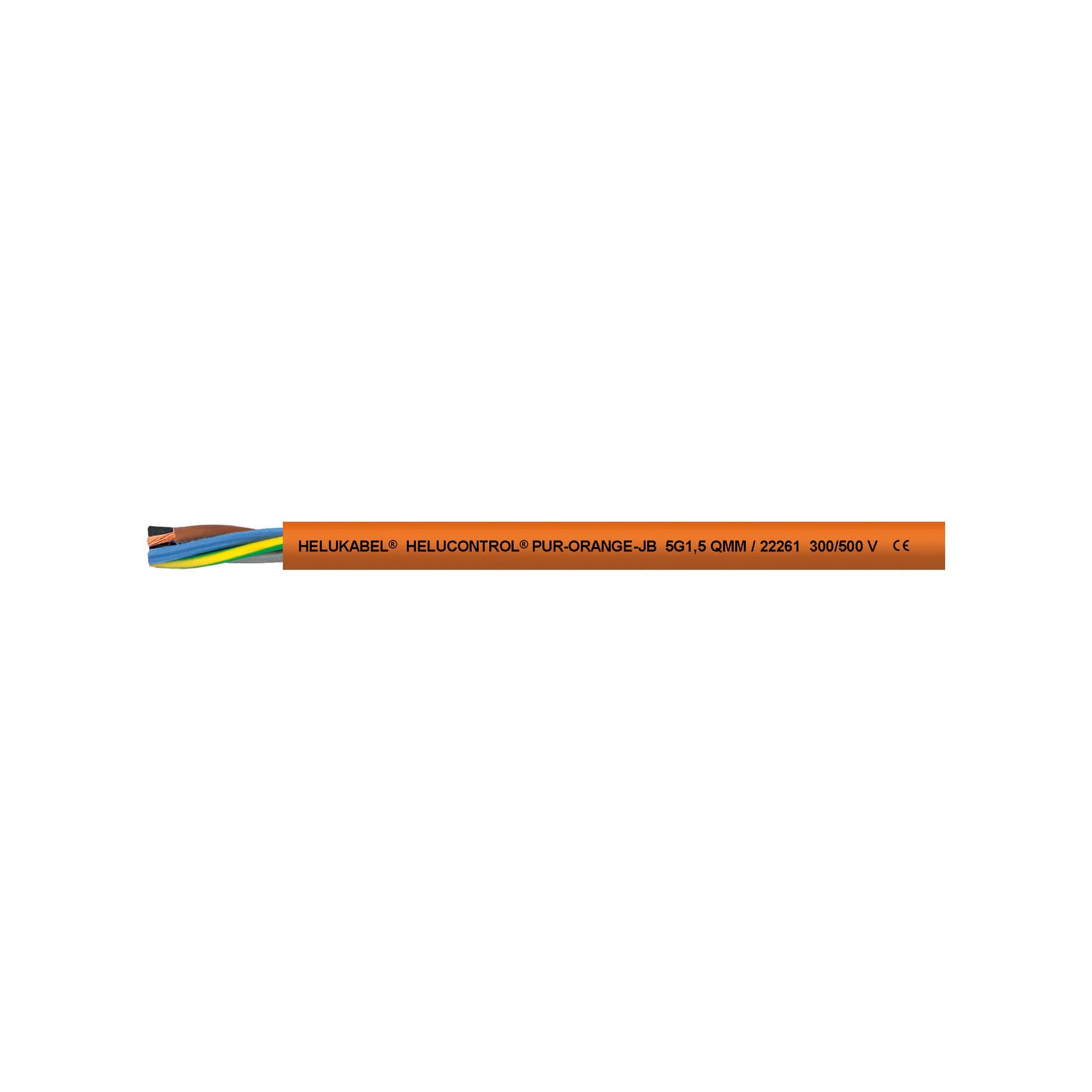

Control Cable PUR,TMPU UV resistant PUR ORANGE JB

Mouse over image to enlarge

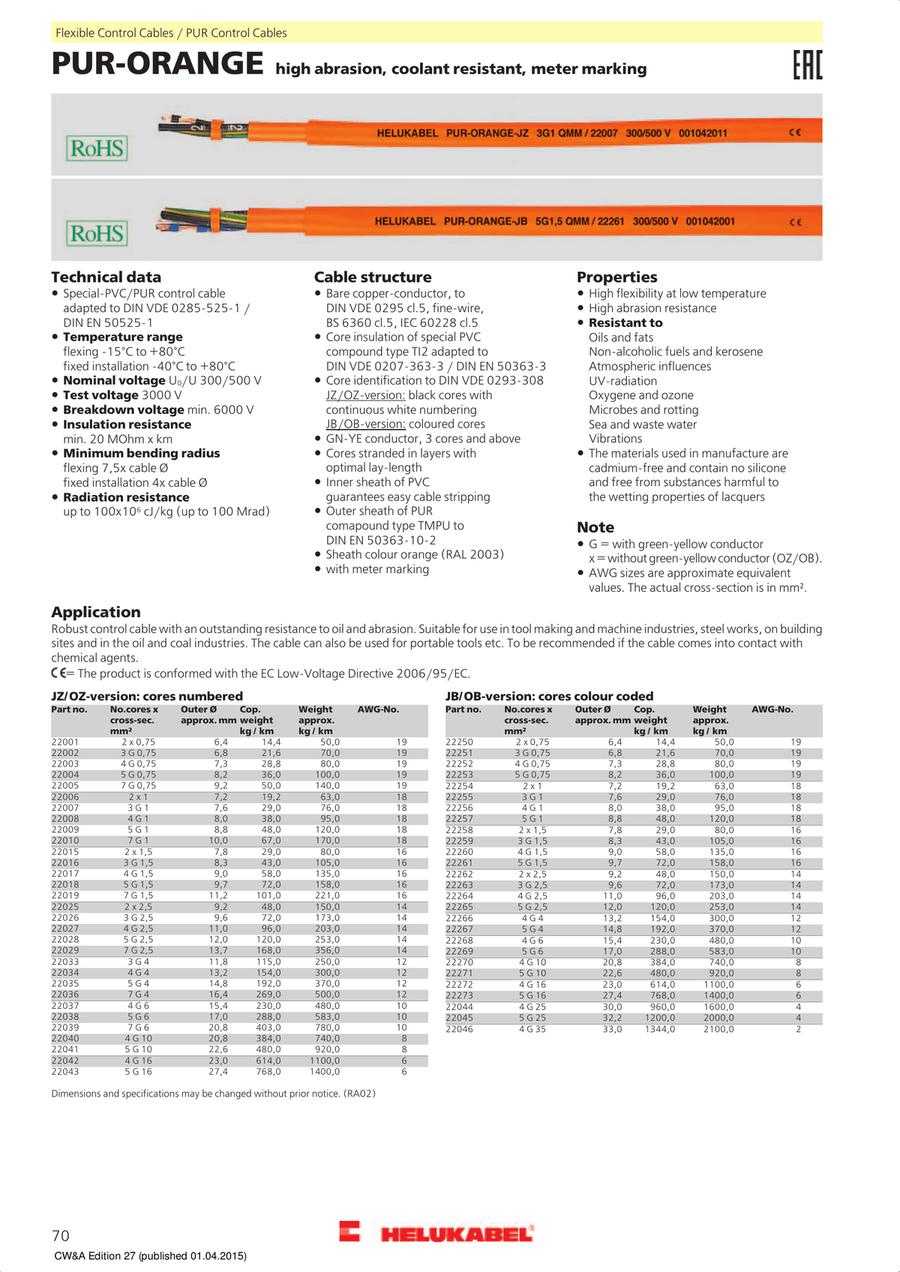

Catalog

Part number:

Still undefined. 21 possible part numbers found.

Part number list
Catalog

Part number list

Number of items

Part number

Overall Length

(m)

Number Of Cores

(Core)

Finished outer diameter

(mm)

Coat Material

Conductor Nominal cross-section

Perm. External cable temperature during installation / handling

Perm. External cable temperature after mounting without vibration

Conductor class

Stranding

protective conductor

oil resistance

RoHS?

Minimum order quantity

Data sheet	1000	2	6.4	PUR (Polyurethan)	0.75	-15°C to +80°C	-40°C to +80°C	Kl.5 = fine wired	-	no	-	10	1 pieces
Data sheet	1000	3	6.8	-	0.75	-	-	fine wired	Core	yes	no	10	1 pieces
Data sheet	500	3	6.8	-	0.75	-	-	fine wired	Core	yes	no	10	1 pieces
Data sheet	1000	4	7.3	-	0.75	-	-	fine wired	Core	yes	no	10	1 pieces
Data sheet	500	4	7.3	-	0.75	-	-	fine wired	Core	yes	no	10	1 pieces
Data sheet	1000	5	8.2	TMPU	0.75	-	-	fine wired	Core	yes	no	10	1 pieces
Data sheet	500	5	8.2	TMPU	0.75	-	-	fine wired	Core	yes	no	10	1 pieces
Data sheet	1000	3	7.6	TMPU	1	-	-	fine wired	Core	yes	no	10	1 pieces
Data sheet	1000	2	7.8	TMPU	1.5	-	-	fine wired	Core	no	no	10	1 pieces
Data sheet	50	3	8.3	TMPU	1.5	-	-	fine wired	Core	yes	no	10	1 pieces
Data sheet	1000	3	8.3	TMPU	1.5	-	-	fine wired	Core	yes	no	10	1 pieces
Data sheet	500	3	8.3	TMPU	1.5	-	-	fine wired	Core	yes	no	10	1 pieces
Data sheet	1000	4	9	TMPU	1.5	-	-	fine wired	Core	yes	no	10	1 pieces
Data sheet	500	4	9	TMPU	1.5	-	-	fine wired	Core	yes	no	10	1 pieces
Data sheet	500	5	9.7	TMPU	1.5	-	-	fine wired	Core	yes	no	10	1 pieces
Data sheet	1000	2	9.2	TMPU	2.5	-	-	fine wired	Core	no	no	10	1 pieces
Data sheet	1000	3	9.6	TMPU	2.5	-	-	fine wired	Core	yes	no	10	1 pieces
Data sheet	500	3	9.6	TMPU	2.5	-	-	fine wired	Core	yes	no	10	1 pieces
Data sheet	1000	4	11	TMPU	2.5	-	-	fine wired	Core	yes	no	10	1 pieces
Data sheet	500	4	11	TMPU	2.5	-	-	fine wired	Core	yes	no	10	1 pieces
Data sheet	1000	5	12	TMPU	2.5	-	-	fine wired	Core	yes	no	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

1,741.22 € ( 2,072.05 € )	5 working days
2,040.52 € ( 2,428.22 € )	5 working days
1,020.26 € ( 1,214.11 € )	5 working days
2,540.44 € ( 3,023.12 € )	5 working days
1,270.21 € ( 1,511.55 € )	5 working days
3,589.51 € ( 4,271.52 € )	5 working days
1,794.76 € ( 2,135.76 € )	5 working days
2,550.28 € ( 3,034.83 € )	5 working days
2,373.12 € ( 2,824.01 € )	5 working days
146.42 € ( 174.24 € )	5 working days
2,928.42 € ( 3,484.82 € )	5 working days
1,464.22 € ( 1,742.42 € )	5 working days
3,816.51 € ( 4,541.65 € )	5 working days
1,908.26 € ( 2,270.83 € )	5 working days
2,249.11 € ( 2,676.44 € )	5 working days
3,616.84 € ( 4,304.04 € )	5 working days
4,306.19 € ( 5,124.37 € )	5 working days
2,153.10 € ( 2,562.19 € )	5 working days
5,907.61 € ( 7,030.06 € )	5 working days
2,953.79 € ( 3,515.01 € )	5 working days
6,901.66 € ( 8,212.98 € )	5 working days
