Heat & Cold resistant FEP UV resistant HELUFLON FEP 6Y

Configure

Overall Length(m)
- 500
- 1000
Number Of Cores(Core)
- 2
- 3
- 4
- 5
- 7
Finished outer diameter(mm)
- 2.7
- 3.2
- 3.3
- 3.5
- 3.6
- 3.9
- 4.1
- 4.3
- 4.4
- 4.7
- 4.8
- 4.9
- 5.3
- 5.5
- 5.8
- 6.4
- 6.5
- 7
- 7.2
- 7.9
- 8.3
Core insulation
- FEP-HELUFLON
- Other
Coat Material
- FEP-HELUFLON
- Other
Conductor Nominal cross-section
- 0.25
- 0.5
- 0.75
- 1
- 1.5
- 2.5
- 4
Perm. External cable temperature during installation / handling
- -100°C to +205°C
Perm. External cable temperature after mounting without vibration
- -100°C to +205°C
Conductor class
- Kl.5 = fine wired
- fine wired
Stranding
- no
Core identification
- Colour
- colored
protective conductor
- no
- yes
oil resistance
- no
Est. shipping days
- All
- Within 5 working days

Heat & Cold resistant FEP UV resistant HELUFLON FEP 6Y

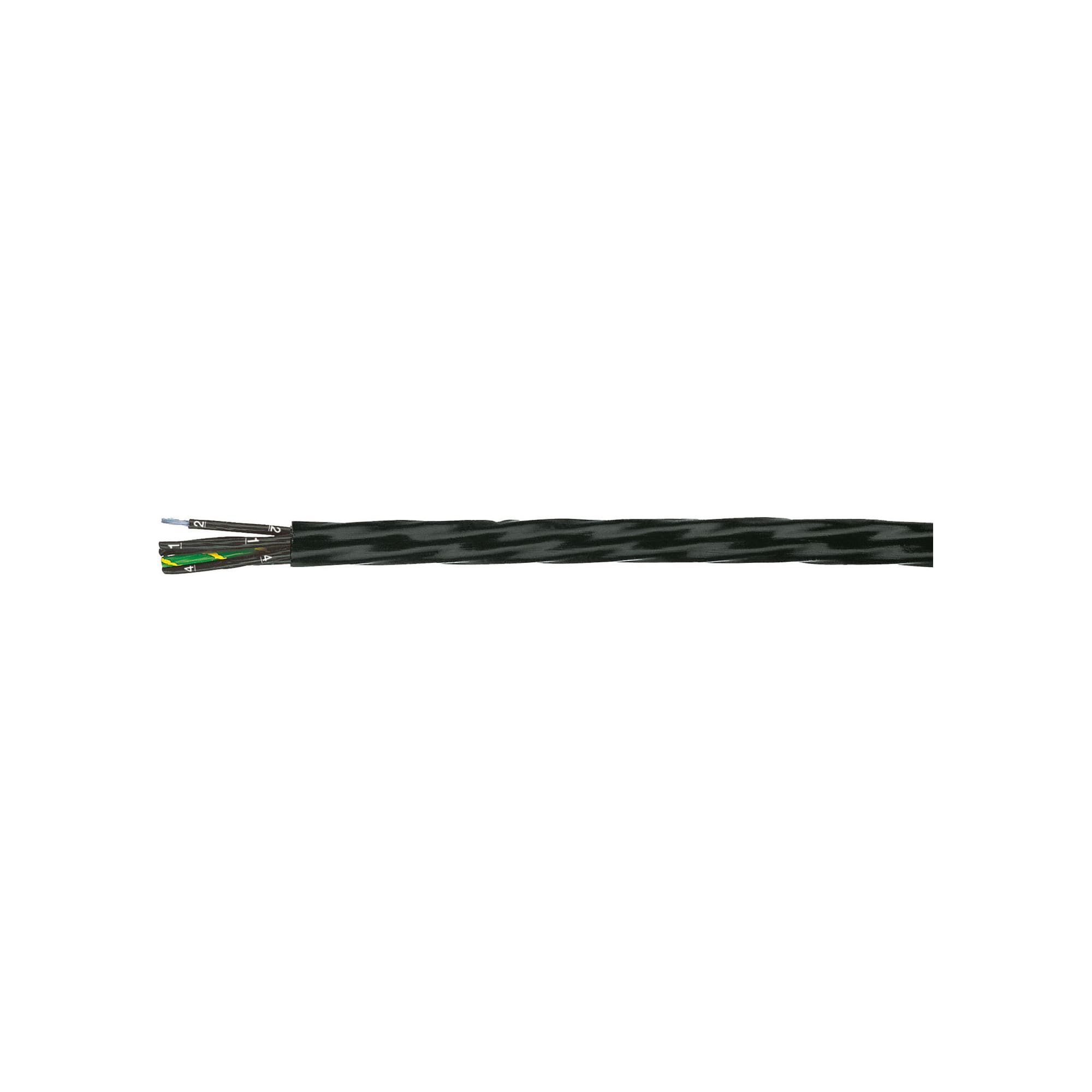

Mouse over image to enlarge

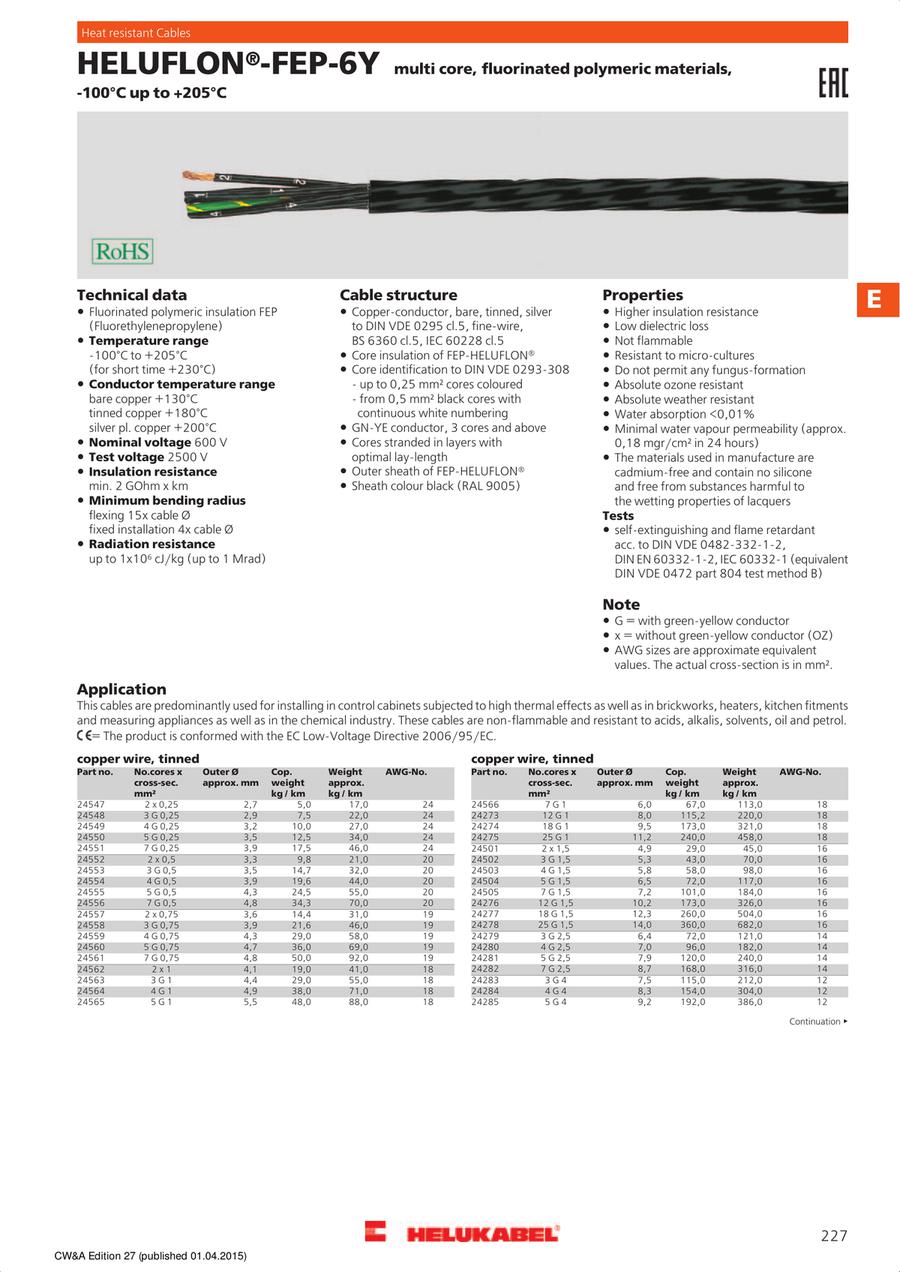

Catalog

Part number:

Still undefined. 42 possible part numbers found.

Part number list
Catalog

Part number list

Number of items

Part number

Overall Length

(m)

Number Of Cores

(Core)

Finished outer diameter

(mm)

Core insulation

Coat Material

Conductor Nominal cross-section

Perm. External cable temperature during installation / handling

Perm. External cable temperature after mounting without vibration

Conductor class

Stranding

Core identification

protective conductor

oil resistance

RoHS?

Minimum order quantity

Data sheet	1000	3	6.4	FEP-HELUFLON	FEP-HELUFLON	2.5	-	-	fine wired	no	colored	yes	no	10	1 pieces
Data sheet	1000	4	7	FEP-HELUFLON	FEP-HELUFLON	2.5	-	-	fine wired	no	colored	yes	no	10	1 pieces
Data sheet	1000	5	7.9	FEP-HELUFLON	FEP-HELUFLON	2.5	-	-	fine wired	no	colored	yes	no	10	1 pieces
Data sheet	1000	4	8.3	FEP-HELUFLON	FEP-HELUFLON	4	-	-	fine wired	no	colored	yes	no	10	1 pieces
Data sheet	1000	2	4.9	FEP-HELUFLON	FEP-HELUFLON	1.5	-	-	fine wired	no	colored	no	no	10	1 pieces
Data sheet	500	2	4.9	FEP-HELUFLON	FEP-HELUFLON	1.5	-	-	fine wired	no	colored	no	no	10	1 pieces
Data sheet	1000	3	5.3	FEP-HELUFLON	FEP-HELUFLON	1.5	-	-	fine wired	no	colored	yes	no	10	1 pieces
Data sheet	500	3	5.3	FEP-HELUFLON	FEP-HELUFLON	1.5	-	-	fine wired	no	colored	yes	no	10	1 pieces
Data sheet	1000	4	5.8	FEP-HELUFLON	FEP-HELUFLON	1.5	-	-	fine wired	no	colored	yes	no	10	1 pieces
Data sheet	500	4	5.8	FEP-HELUFLON	FEP-HELUFLON	1.5	-	-	fine wired	no	colored	yes	no	10	1 pieces
Data sheet	1000	5	6.5	FEP-HELUFLON	FEP-HELUFLON	1.5	-	-	fine wired	no	colored	yes	no	10	1 pieces
Data sheet	1000	7	7.2	FEP-HELUFLON	FEP-HELUFLON	1.5	-	-	fine wired	no	colored	yes	no	10	1 pieces
Data sheet	1000	2	2.7	Other	Other	0.25	-100°C to +205°C	-100°C to +205°C	Kl.5 = fine wired	-	Colour	no	-	10	1 pieces
Data sheet	500	2	2.7	Other	Other	0.25	-100°C to +205°C	-100°C to +205°C	Kl.5 = fine wired	-	Colour	no	-	10	1 pieces
Data sheet	1000	4	3.2	FEP-HELUFLON	FEP-HELUFLON	0.25	-	-	fine wired	no	colored	yes	no	10	1 pieces
Data sheet	500	4	3.2	FEP-HELUFLON	FEP-HELUFLON	0.25	-	-	fine wired	no	colored	yes	no	10	1 pieces
Data sheet	1000	5	3.5	FEP-HELUFLON	FEP-HELUFLON	0.25	-	-	fine wired	no	colored	yes	no	10	1 pieces
Data sheet	500	5	3.5	FEP-HELUFLON	FEP-HELUFLON	0.25	-	-	fine wired	no	colored	yes	no	10	1 pieces
Data sheet	1000	7	3.9	FEP-HELUFLON	FEP-HELUFLON	0.25	-	-	fine wired	no	colored	yes	no	10	1 pieces
Data sheet	1000	2	3.3	FEP-HELUFLON	FEP-HELUFLON	0.5	-	-	fine wired	no	colored	no	no	10	1 pieces
Data sheet	500	2	3.3	FEP-HELUFLON	FEP-HELUFLON	0.5	-	-	fine wired	no	colored	no	no	10	1 pieces
Data sheet	1000	4	3.9	FEP-HELUFLON	FEP-HELUFLON	0.5	-	-	fine wired	no	colored	yes	no	10	1 pieces
Data sheet	500	4	3.9	FEP-HELUFLON	FEP-HELUFLON	0.5	-	-	fine wired	no	colored	yes	no	10	1 pieces
Data sheet	1000	5	4.3	FEP-HELUFLON	FEP-HELUFLON	0.5	-	-	fine wired	no	colored	yes	no	10	1 pieces
Data sheet	500	5	4.3	FEP-HELUFLON	FEP-HELUFLON	0.5	-	-	fine wired	no	colored	yes	no	10	1 pieces
Data sheet	1000	7	4.8	FEP-HELUFLON	FEP-HELUFLON	0.5	-	-	fine wired	no	colored	yes	no	10	1 pieces
Data sheet	500	7	4.8	FEP-HELUFLON	FEP-HELUFLON	0.5	-	-	fine wired	no	colored	yes	no	10	1 pieces
Data sheet	1000	2	3.6	FEP-HELUFLON	FEP-HELUFLON	0.75	-	-	fine wired	no	colored	no	no	10	1 pieces
Data sheet	500	2	3.6	FEP-HELUFLON	FEP-HELUFLON	0.75	-	-	fine wired	no	colored	no	no	10	1 pieces
Data sheet	1000	3	3.9	FEP-HELUFLON	FEP-HELUFLON	0.75	-	-	fine wired	no	colored	yes	no	10	1 pieces
Data sheet	500	3	3.9	FEP-HELUFLON	FEP-HELUFLON	0.75	-	-	fine wired	no	colored	yes	no	10	1 pieces
Data sheet	1000	4	4.3	FEP-HELUFLON	FEP-HELUFLON	0.75	-	-	fine wired	no	colored	yes	no	10	1 pieces
Data sheet	1000	5	4.7	FEP-HELUFLON	FEP-HELUFLON	0.75	-	-	fine wired	no	colored	yes	no	10	1 pieces
Data sheet	500	5	4.7	FEP-HELUFLON	FEP-HELUFLON	0.75	-	-	fine wired	no	colored	yes	no	10	1 pieces
Data sheet	1000	7	4.8	FEP-HELUFLON	FEP-HELUFLON	0.75	-	-	fine wired	no	colored	yes	no	10	1 pieces
Data sheet	500	7	4.8	FEP-HELUFLON	FEP-HELUFLON	0.75	-	-	fine wired	no	colored	yes	no	10	1 pieces
Data sheet	500	2	4.1	FEP-HELUFLON	FEP-HELUFLON	1	-	-	fine wired	no	colored	no	no	10	1 pieces
Data sheet	1000	3	4.4	FEP-HELUFLON	FEP-HELUFLON	1	-	-	fine wired	no	colored	yes	no	10	1 pieces
Data sheet	500	3	4.4	FEP-HELUFLON	FEP-HELUFLON	1	-	-	fine wired	no	colored	yes	no	10	1 pieces
Data sheet	1000	4	4.9	FEP-HELUFLON	FEP-HELUFLON	1	-	-	fine wired	no	colored	yes	no	10	1 pieces
Data sheet	500	4	4.9	FEP-HELUFLON	FEP-HELUFLON	1	-	-	fine wired	no	colored	yes	no	10	1 pieces
Data sheet	1000	5	5.5	FEP-HELUFLON	FEP-HELUFLON	1	-	-	fine wired	no	colored	yes	no	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

11,642.88 € ( 13,855.03 € )	5 working days
17,336.86 € ( 20,630.86 € )	5 working days
20,369.58 € ( 24,239.80 € )	5 working days
20,484.29 € ( 24,376.31 € )	5 working days
5,373.11 € ( 6,394.00 € )	5 working days
2,686.56 € ( 3,197.01 € )	5 working days
7,371.27 € ( 8,771.81 € )	5 working days
3,685.63 € ( 4,385.90 € )	5 working days
9,335.20 € ( 11,108.89 € )	5 working days
4,667.60 € ( 5,554.44 € )	5 working days
10,547.87 € ( 12,551.97 € )	5 working days
18,743.82 € ( 22,305.15 € )	5 working days
4,000.93 € ( 4,761.11 € )	5 working days
2,000.46 € ( 2,380.55 € )	5 working days
3,538.94 € ( 4,211.34 € )	5 working days
1,769.47 € ( 2,105.67 € )	5 working days
6,136.64 € ( 7,302.60 € )	5 working days
3,068.33 € ( 3,651.31 € )	5 working days
5,770.03 € ( 6,866.34 € )	5 working days
4,232.57 € ( 5,036.76 € )	5 working days
2,116.29 € ( 2,518.39 € )	5 working days
7,668.90 € ( 9,125.99 € )	5 working days
3,834.44 € ( 4,562.98 € )	5 working days
6,478.90 € ( 7,709.89 € )	5 working days
3,239.45 € ( 3,854.95 € )	5 working days
7,954.26 € ( 9,465.57 € )	5 working days
3,977.13 € ( 4,732.78 € )	5 working days
4,339.65 € ( 5,164.18 € )	5 working days
2,169.82 € ( 2,582.09 € )	5 working days
5,156.53 € ( 6,136.27 € )	5 working days
2,578.26 € ( 3,068.13 € )	5 working days
6,855.55 € ( 8,158.10 € )	5 working days
7,514.22 € ( 8,941.92 € )	5 working days
3,757.11 € ( 4,470.96 € )	5 working days
9,357.69 € ( 11,135.65 € )	5 working days
4,678.84 € ( 5,567.82 € )	5 working days
2,894.31 € ( 3,444.23 € )	5 working days
7,282.58 € ( 8,666.27 € )	5 working days
3,641.30 € ( 4,333.15 € )	5 working days
8,652.55 € ( 10,296.53 € )	5 working days
4,326.26 € ( 5,148.25 € )	5 working days
11,688.42 € ( 13,909.22 € )	5 working days
