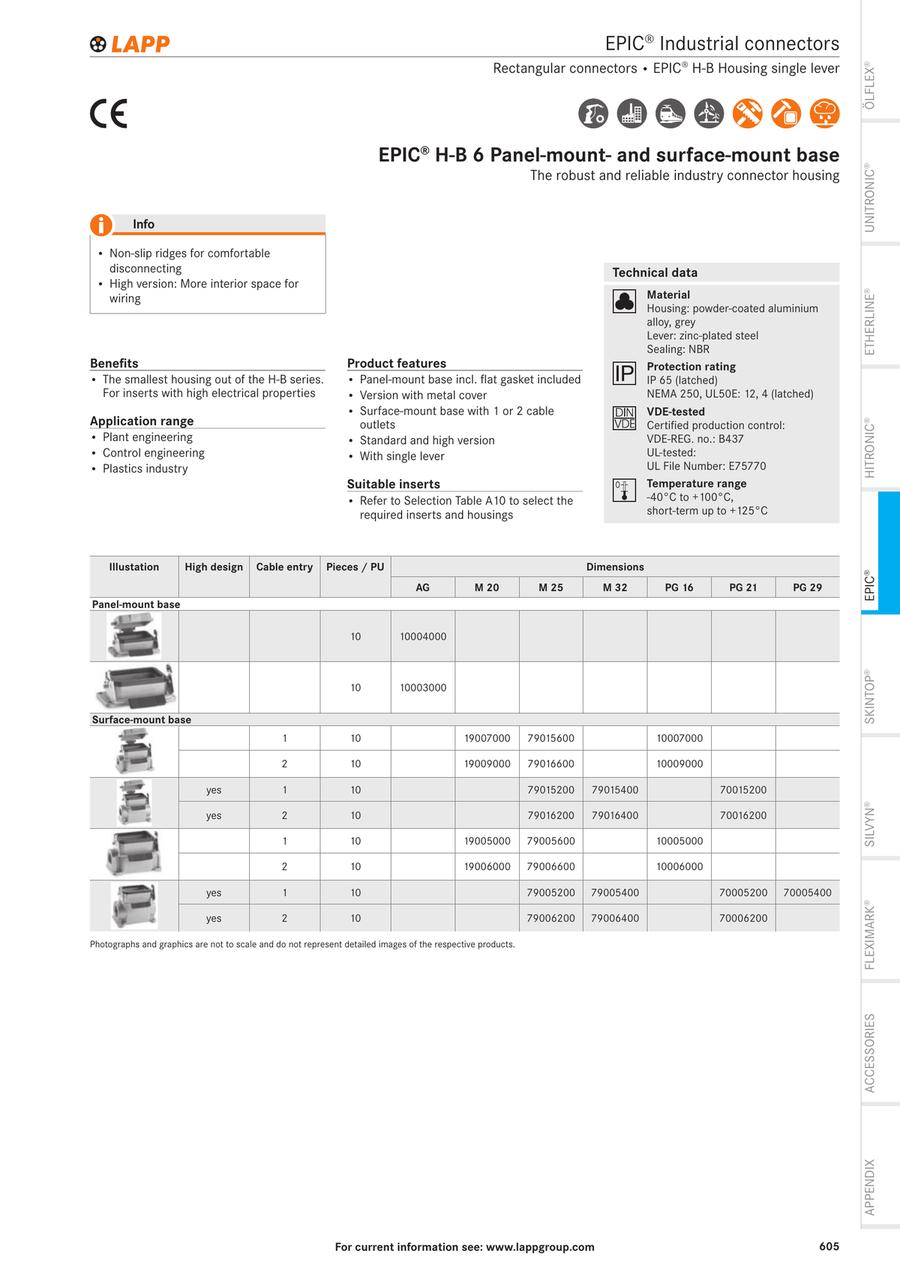

EPIC® H-B 6 SGRLH-LB
- Volume Discount
The universal metal housing with 2 cable entries can be used, for example, in control systems or the plastics industry.Housing design H-B. The industry standard.More interior space for wiringFor easy introduction of two cablesProtection rating UL50E tested
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Basic information
| Degree of protection (IP), mounted | IP65 | Height | 74 | Length | 60 |
|---|---|---|---|---|---|
| Width | 43 | Operation temperature | 125 | Inflammability class of insulation material acc. with UL94 | HB |
| Housing coating | With powder coating | Locking mechanism | Single locking lever | Position cable feed | Two-sided |
| Position of the shackle | Base unit | Material housing | Aluminium | Type of housing | Socket case |
| Corrosion resistant | True | EMC-version | False | UV resistant | True |
| With cable screw gland | False | With hinged lid | False | With interlocking device | True |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
