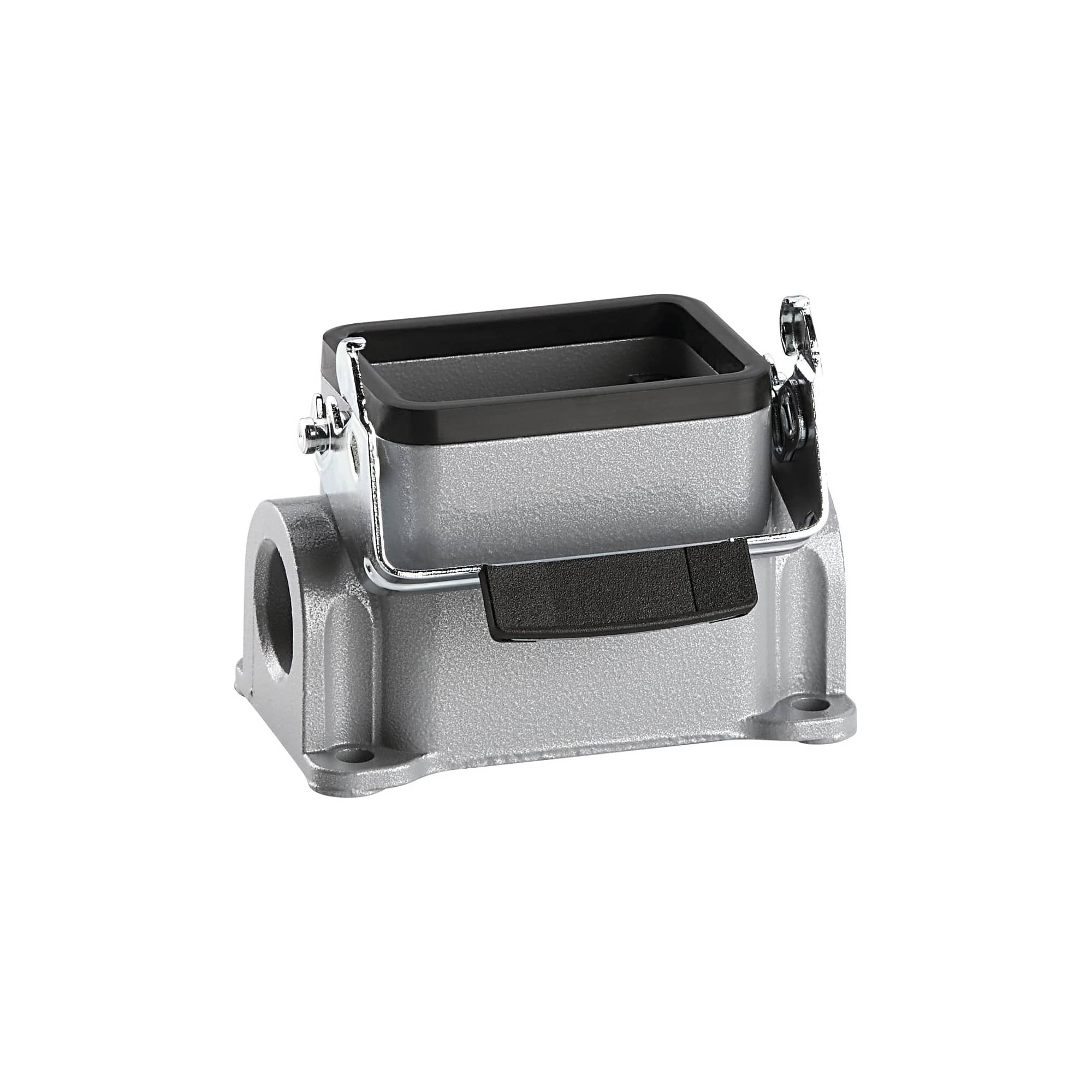

EPIC® H-B 6 SGRL-LB
- Volume Discount
The robust metal housing is suitable for inserts with outstanding electrical properties. It has 2 cable entries and can be used in the plastics industry. Housing design H-B. The industry standard. For easy introduction of two cables
Protection rating UL50E tested
Protection rating UL50E tested
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Basic information
| Degree of protection (IP), mounted | IP65 | Height | 57 | Length | 60 |
|---|---|---|---|---|---|
| Width | 43 | Operation temperature | 125 | Inflammability class of insulation material acc. with UL94 | HB |
| Housing coating | With powder coating | Locking mechanism | Single locking lever | Position cable feed | Two-sided |
| Position of the shackle | Base unit | Material housing | Aluminium | Type of housing | Socket case |
| Corrosion resistant | True | EMC-version | False | UV resistant | True |
| With cable screw gland | False | With hinged lid | False | With interlocking device | True |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
