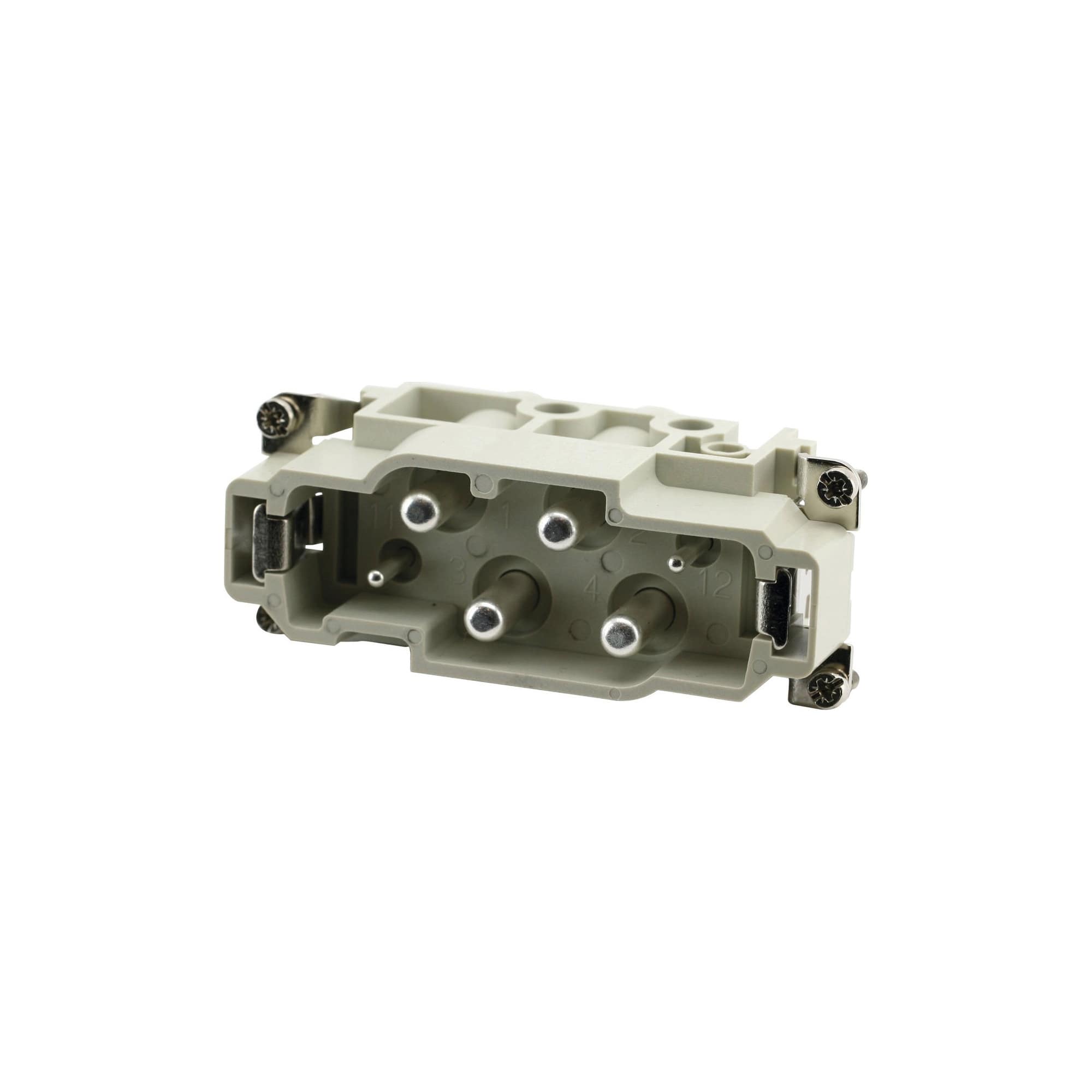

EPIC® Power K 4 / 2
- Volume Discount
The combined insert is suitable for power and control and can be used, for example, in the area of recoverable energy and control systems. Combination insert Power and Control
Combination insert Power and Control
Combination insert Power and Control
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Basic information
| Rated current In(A) | 80 | Rated voltage(V) | 830 | Diameter plug-in contact | 6 |
|---|---|---|---|---|---|
| Ambient temperature | 125 | Connectable conductor cross section | 16 | Number of poles | 6 |
| Over voltage category | III | Pollution degree | 3 | Rated surge voltage | 8 |
| Inflammability class of insulation material acc. with UL94 | V0 | Material connector of connector insert | Thermoplastic | Material contact | Other |
| Material of contact insert | Plastic | Material of contact surface | Silver | Contact insert without contacts | False |
| Modular version | True | With protective conductor | True | With wire protection | True |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
