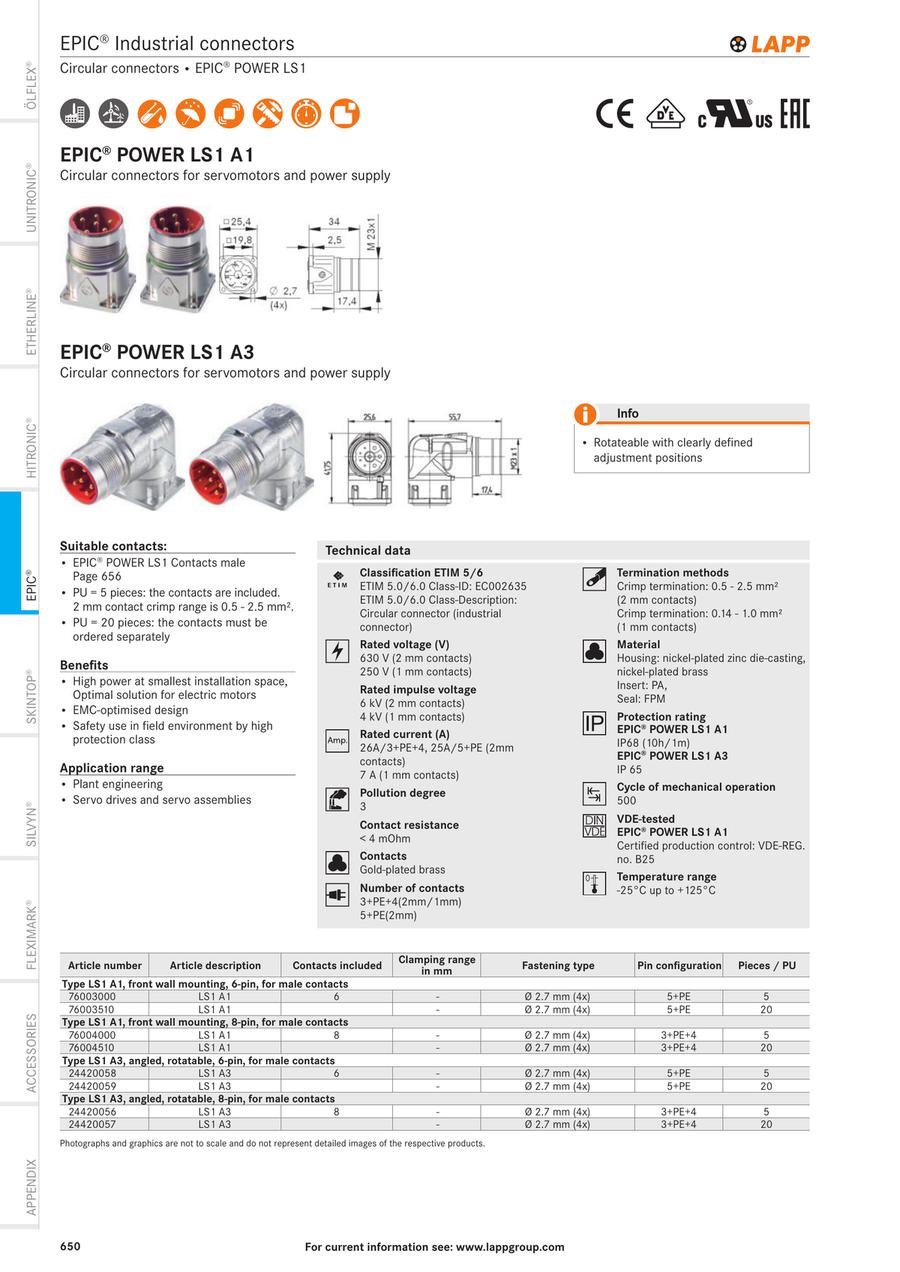

EPIC® POWER LS1 A3
- Volume Discount
Benefits
· EMC-optimised design
· High power at smallest installation space, Optimal solution for electric motors
· Safety use in field environment by high protection class
Application
· Plant engineering
· Servo drives and servo assemblies
· EMC-optimised design
· High power at smallest installation space, Optimal solution for electric motors
· Safety use in field environment by high protection class
Application
· Plant engineering
· Servo drives and servo assemblies
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Basic information
| Rated current In(A) | 26 | Rated voltage(V) | 630 | Connection type | Crimp connection |
|---|---|---|---|---|---|
| Degree of protection (IP), mounted | IP65 | Type of housing | Angled | Thread size M | 23 |
| Ambient temperature | 125 | Operation temperature | 125 | Pollution degree | 3 |
| Connectable conductor cross section | 2.5 | Material housing | Zinc | Material of contact surface | Gold |
| Material insulation body | Thermoplastic | Material contact | Brass | With protective conductor | True |
| Contact type | Pin | Locking mechanism | Gland nut | With interlocking device | True |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
