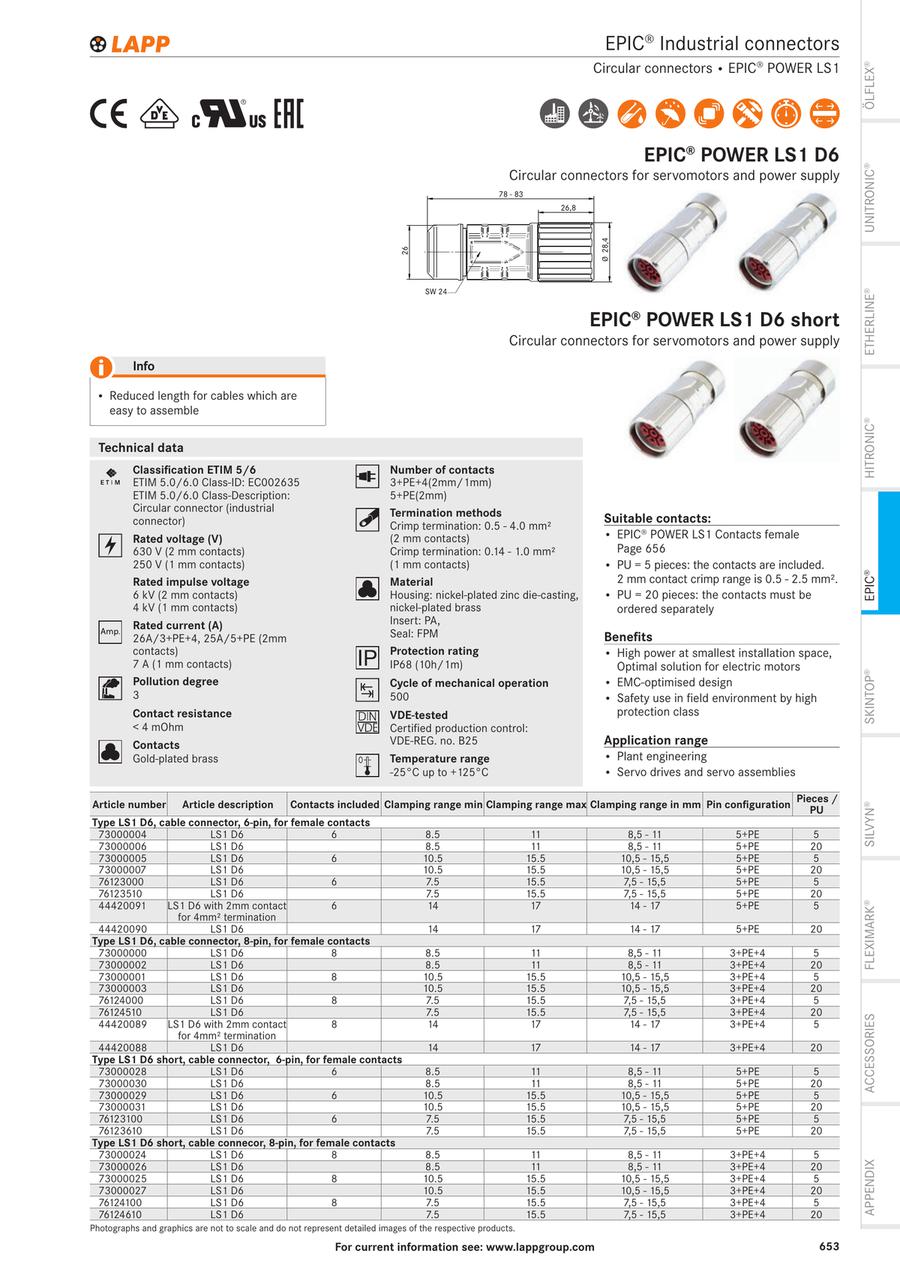

EPIC® POWER LS1 D6 (short)
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
· EMC-optimised design
· High power at smallest installation space, Optimal solution for electric motors
· Safety use in field environment by high protection class
Application
· Plant engineering
· Servo drives and servo assemblies
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 73000024 |
| 73000025 |
| 73000026 |
| 73000027 |
| 73000028 |
| 73000029 |
| 73000030 |
| 73000031 |
| 76123100 |
| 76123610 |
| 76124100 |
| 76124610 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Number of plug-in contacts | |
|---|---|---|---|---|---|---|---|
28.50 € | 5 | Available | 5 Days | 10 | 7 | ||
28.48 € | 5 | Available | 5 Days | 10 | 7 | ||
17.88 € | 20 | Available | 98 Days | 10 | 7 | ||
17.72 € | 20 | Available | 5 Days | 10 | 7 | ||
30.47 € | 5 | Available | 5 Days | 10 | 5 | ||
30.23 € | 5 | Available | 5 Days | 10 | 5 | ||
17.67 € | 20 | Available | 22 Days | 10 | 5 | ||
17.62 € | 20 | Available | 5 Days | 10 | 5 | ||
30.53 € | 5 | Available | 5 Days | 10 | 5 | ||
17.93 € | 20 | Available | 8 Days | 10 | 5 | ||
28.35 € | 5 | Available | 5 Days | 10 | 7 | ||
17.67 € | 20 | Available | 98 Days | 10 | 7 |
Loading...
Basic information
| Rated current In(A) | 26 | Rated voltage(V) | 630 | Connection type | Crimp connection |
|---|---|---|---|---|---|
| Degree of protection (IP), mounted | IP68 | Type of housing | Straight | Diameter connector | 28 |
| Thread size M | 23 | Ambient temperature | 125 | Operation temperature | 125 |
| Pollution degree | 3 | Connectable conductor cross section | 2.5 | Material housing | Zinc |
| Material of contact surface | Gold | Material insulation body | Thermoplastic | Material contact | Brass |
| With protective conductor | True | Contact type | Bus | Locking mechanism | Gland nut |
| With interlocking device | True |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
