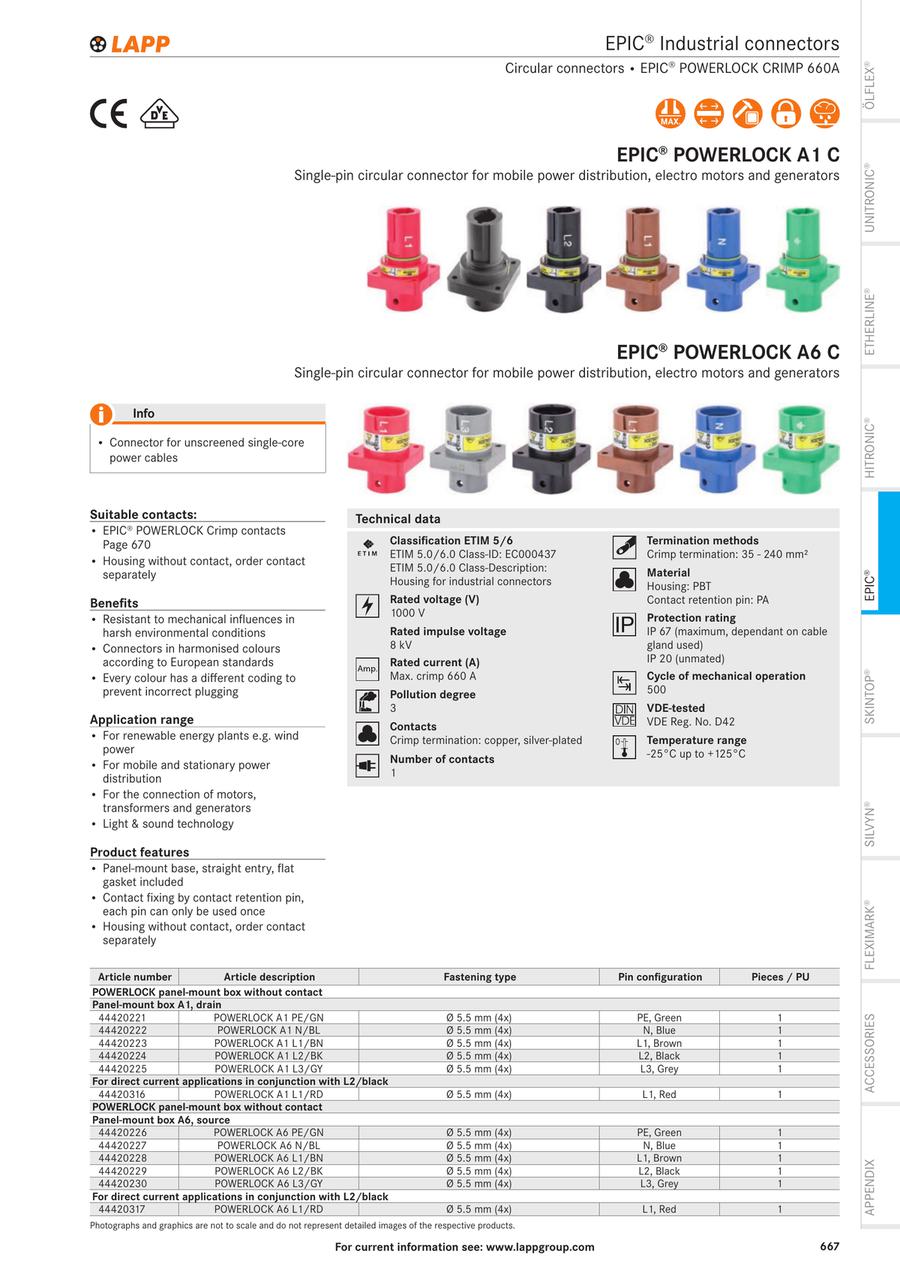

EPIC® POWERLOCK A1 C

Benefits
· Easy assembly with 4 fastening screws
· High stability due to robust PBT plastic
· Available in harmonised colours according to European standard (colour coding for DC and AC)
· VDE-tested quality
· For conductor cross-sections up to 240 mm²
· Panel-mount base drain (type A1) for use with one M12 threaded post contact drain (available separately)
· When connected, protection class IP 65, IP 67 and IP 69 can be achieved
· Compliant with standards for inland navigation (in accordance with DIN VDE 0100-730 Part 7-730 "Electrical land connection for inland navigation vehicles"

Application
· Suitable for outdoor use
· Suitable for three-phase and direct current applications up to 660 A
· For use with unscreened single cores
· Withstands moderate mechanical stress
· Can be used for mobile and stationary power supply or emergency power supply via generators or battery storage systems
· Suitable for electric motors and cooling units
