Configure

No. of Cores
- 4 Core (4C)
- 8 Core (8C)
Cable Outer Diameter(mm)
- 6.0 to 6.9
- 8.0 to 8.9
Sheath Material
- PUR
Diameter conductor
- 0,51
Operating temperature, flexible
- 60
Operating temperature, fix
- 60
- 80
Core insulation
Outer diameter approx.(mm)
- 6,1
- 6,3
- 8,3
Length(m)
- 100
- 500
- 1000
Number of cores(Core)
- 4
- 8
Material outer sheath
- Other
- PUR (Polyurethane)
Est. shipping days
- All
- Within 5 working days
- Within 8 working days
- Within 10 working days

LAPP

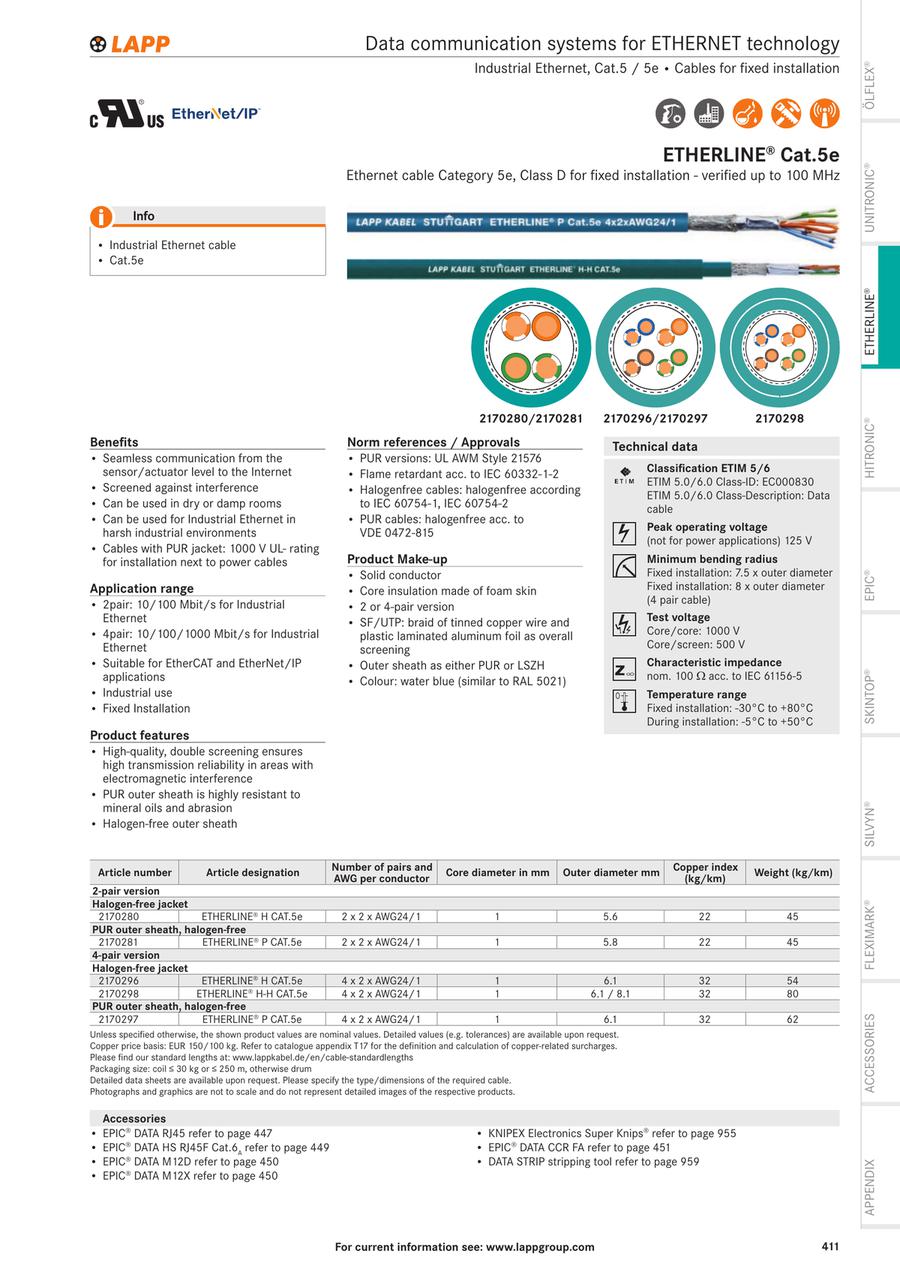

ETHERLINE® Cat.5e

Mouse over image to enlarge

Catalog

Part number:

Still undefined. 15 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

No. of Cores

Cable Outer Diameter

(mm)

Sheath Material

Diameter conductor

Operating temperature, flexible

Operating temperature, fix

Core insulation

Outer diameter approx.

(mm)

Length

(m)

Number of cores

(Core)

Material outer sheath

RoHS?

Minimum order quantity

Data sheet	4 Core (4C)	6.0 to 6.9	-	-	-	80	Polyolefin	6,1	100	4	Other	10	1 pieces
Data sheet	4 Core (4C)	6.0 to 6.9	-	-	-	80	Polyolefin	6,1	1000	4	Other	10	1 pieces
Data sheet	4 Core (4C)	6.0 to 6.9	-	-	-	80	Polyolefin	6,1	500	4	Other	10	1 pieces
Data sheet	4 Core (4C)	6.0 to 6.9	PUR	-	-	80	Polyolefin	6,1	100	4	PUR (Polyurethane)	10	1 pieces
Data sheet	4 Core (4C)	6.0 to 6.9	PUR	-	-	80	Polyolefin	6,1	1000	4	PUR (Polyurethane)	10	1 pieces
Data sheet	4 Core (4C)	6.0 to 6.9	PUR	-	-	80	Polyolefin	6,1	500	4	PUR (Polyurethane)	10	1 pieces
Data sheet	8 Core (8C)	6.0 to 6.9	-	-	-	80	PE	6,3	100	8	Other	10	1 pieces
Data sheet	8 Core (8C)	6.0 to 6.9	-	-	-	80	PE	6,3	1000	8	Other	10	1 pieces
Data sheet	8 Core (8C)	6.0 to 6.9	-	-	-	80	PE	6,3	500	8	Other	10	1 pieces
Data sheet	8 Core (8C)	6.0 to 6.9	PUR	-	-	80	PE	6,3	100	8	PUR (Polyurethane)	10	1 pieces
Data sheet	8 Core (8C)	6.0 to 6.9	PUR	-	-	80	PE	6,3	1000	8	PUR (Polyurethane)	10	1 pieces
Data sheet	8 Core (8C)	6.0 to 6.9	PUR	-	-	80	PE	6,3	500	8	PUR (Polyurethane)	10	1 pieces
Data sheet	8 Core (8C)	8.0 to 8.9	-	0,51	60	60	Foam-Skin-PE	8,3	100	8	Other	10	1 pieces
Data sheet	8 Core (8C)	8.0 to 8.9	-	0,51	60	60	Foam-Skin-PE	8,3	1000	8	Other	10	1 pieces
Data sheet	8 Core (8C)	8.0 to 8.9	-	0,51	60	60	Foam-Skin-PE	8,3	500	8	Other	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

175.76 € ( 209.15 € )	5 working days
1,757.59 € ( 2,091.53 € )	10 working days
878.80 € ( 1,045.77 € )	5 working days
303.45 € ( 361.11 € )	10 working days
3,034.42 € ( 3,610.96 € )	5 working days
1,517.22 € ( 1,805.49 € )	5 working days
195.03 € ( 232.09 € )	5 working days
1,950.26 € ( 2,320.81 € )	5 working days
975.14 € ( 1,160.42 € )	5 working days
302.60 € ( 360.09 € )	5 working days
3,025.93 € ( 3,600.86 € )	8 working days
1,512.97 € ( 1,800.43 € )	5 working days
242.48 € ( 288.55 € )	8 working days
2,424.76 € ( 2,885.46 € )	8 working days
1,212.39 € ( 1,442.74 € )	8 working days

More Information

Basic information

Basic information

Benefits
· Cat 5e performance up to 100 Mbit/s
· Available as a 4-pair standard cable or as a duplex cable version for reduced cabling effort
· For transmission of analogue and digital signals in the frequency range up to 100 MHz
· Fast information exchange through Ethernet technology\xa0
· Available with PUR outer sheath and LSZH outer sheath

Application
· For structured building cabling according to EN 50173 and ISO/IEC 11801
