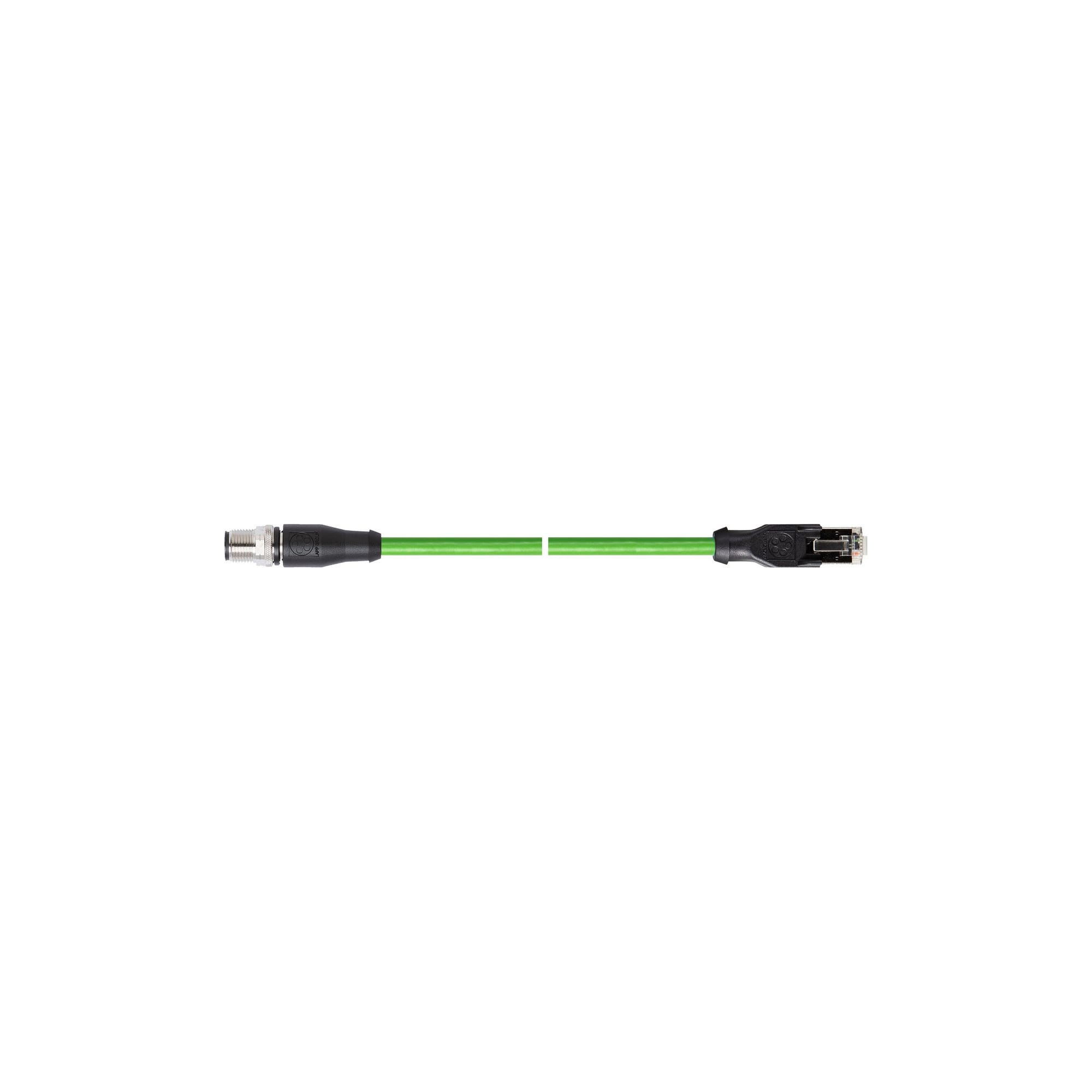

ETHERLINE® PN Flex Cat.5 M12-RJ45

ETHERLINE® PN Flex Cat.5 M12-RJ45

Click on this image to zoom in.

Click on this image to zoom in.

  • Volume Discount
Benefits
· Cat 5 performance up to 100 Mbit/s
· UL certification according to technical data enables the product to be used on the North American market
· The angled shape of the connector is suitable for a space-saving cable outlet
· Fast information exchange through Ethernet technology\xa0
· Tested resistance to ECOLAB® disinfectants and cleaning agents (only applies to the cable)
· Available as a one-sided power cable assembly for flexible selection of the cable length and free choice of further connection
· Also available with pre-assembled flange coupling for easy guidance through control cabinet walls
· High resistance to electromagnetic interference thanks to star quad stranding as well as double screening made of aluminium-laminated foil and high degree of copper screening braiding (SF/UTP)
· Also available as a cable assembled on both sides to save time during installation
· The integrated vibration protection of the connector makes it resistant to shocks and vibrations

Application
· Suitable for medium mechanical stress
· Also suitable for EtherCAT and EtherNet/IP applications
· Can be used in dry and damp rooms
· For flexible use in the PROFINET network (type B), due to stranded conductor design
· The PVC outer sheath is resistant to acids and alkalis and has limited oil resistance

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
2171214
2171215
2171216
2171217
2171218
2171219
2171220
2171221
2171222
2171223
2171224
2171225
2171226
2171227
Part NumberRelated to
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSLength

30.37 €

1 Available 5 Days 100,5

31.93 €

1 Available 5 Days 101

34.02 €

1 Available 5 Days 102

36.31 €

1 Available 5 Days 103

41.03 €

1 Available 5 Days 105

52.78 €

1 Available 5 Days 1010

76.25 €

1 Available 5 Days 1020

31.28 €

1 Available 5 Days 100,5

32.38 €

1 Available 5 Days 101

34.84 €

1 Available 5 Days 102

37.09 €

1 Available 5 Days 103

41.81 €

1 Available 5 Days 105

53.67 €

1 Available 5 Days 1010

77.16 €

1 Available 5 Days 1020

Loading...

  1. 1

Basic information

AWG-size 22 Case connector connection 1 IEC 61076-2-101-A1 M12-D Degree of protection (IP) IP67
NVP value 63 Cable construction 1x4 Type of connector connection 1 M12
Type of connector connection 2 RJ45 8(4) Category 5 Pin assignment 1:1
Flame retardant In accordance with EN 60332324 Colour outer sheath Green Colour anti-kink sleeve Black
Material connector of connector housing connection 1 Plastic Cable type SF/UTP Anti-kink sleeve Moulded-on
Locking lever True Suitable for cable guide chain False
