Configure

Category
- CAT7
- CAT5e
Conductor Size
- AWG22
- AWG24
No. of Cores
- 4 Core (4C)
- 8 Core (8C)
Cable Outer Diameter(mm)
- 6.0 to 6.9
- 9.0 to 9.9
NVP value
- 64
- 71
Operating temperature, fix
- 80
Conductor category
- Class 2 = stranded
Conductor material
- Cu, bare
Core insulation
- Polyolefin
Core identification
- Colour
Low smoke (acc. EN 61034-2)
- False
Screen over stranding
- Braiding
- Foil + braiding
Screen over stranding element
- Foil
- None
Stranding element
- Pairs
- Quad
Outer diameter approx.(mm)
- 6,8
- 9
Length(m)
- 305
- 500
Number of cores(Core)
- 4
- 8
Category
- 5E
- 7
Material outer sheath
- Other
Est. shipping days
- All
- Within 5 working days
- Within 10 working days
- Within 76 working days

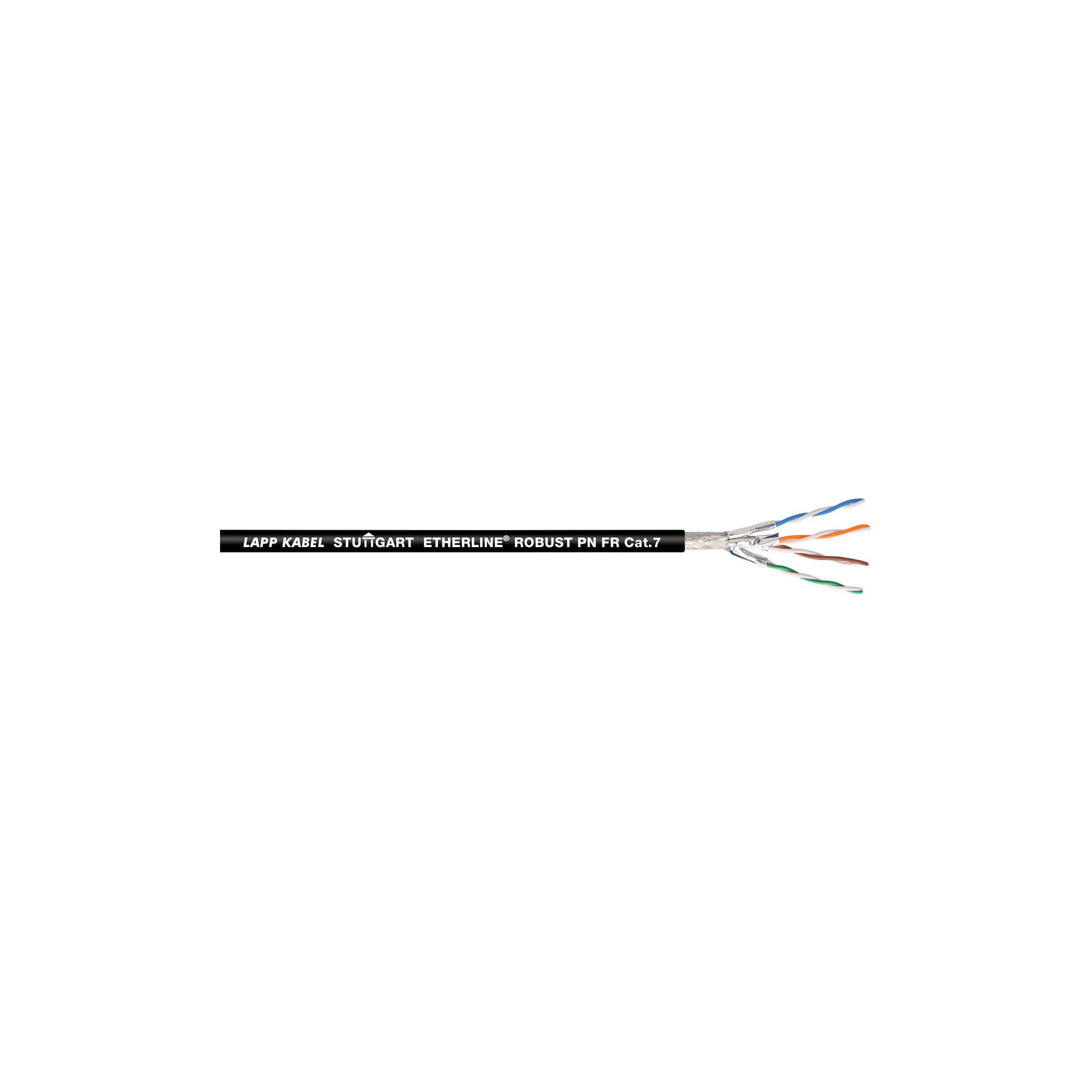

ETHERLINE® ROBUST FR

Catalog

Part number:

Still undefined. 4 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

More Information

Basic information

Basic information

Benefits
· Particularly suitable in conjunction with water-soluble cleaning agents and coolants
· Resistant to hot water and steam when subjected to frequent steam jet cleaning
· Tested resistance to ECOLAB® disinfectants and cleaning agents
· For the transmission of analogue and digital signals in the frequency range up to 100 MHz (Cat 5e) or up to 600 MHz (Cat 7)
· Excellent resistance to a wide range of chemical substances (eg ammonia compounds, biogases), as well as plant, animal or synthetic fats and oils (eg bio-oils and ester-based hydraulic oils)
· Ideal protection against electromagnetic interference thanks to double screening made of aluminium-laminated foil and copper screening braiding with high degree of coverage (SF/UTP)
· Particularly flame retardant data cable for demanding environments

Application
· Also suitable for EtherCAT and EtherNet/IP applications
· Suitable for outdoor use
· The “FLEX” version with reduced conductor cross-section is suitable for applications with limited space
· “PN” variants are suitable for flexible use in the PROFINET network (type B)
· Can be used universally on machine interfaces for many applications in data and signal transmission
· For structured building cabling according to EN 50173 and ISO/IEC 11801
· Typical areas of application are washing plants, sewage treatment plants, composting plants and applications in the food industry

Catalog

Products homepage

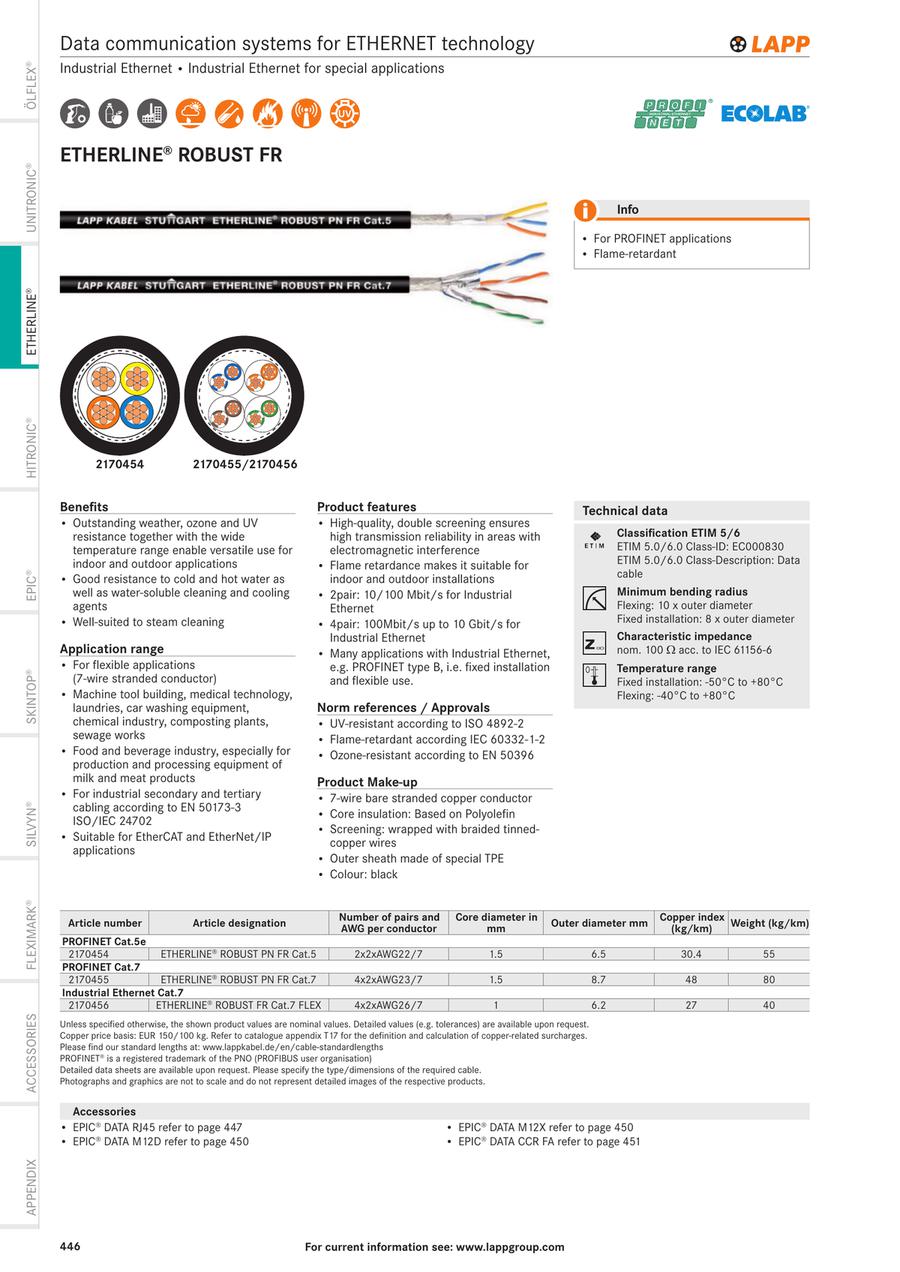

Catalog (2-page spread)

Data sheet	CAT5e	AWG22	4 Core (4C)	6.0 to 6.9	64	80	Class 2 = stranded	Cu, bare	Polyolefin	Colour	False	Foil + braiding	None	Quad	6,8	305	4	5E	Other	10	1 pieces
Data sheet	CAT7	AWG24	8 Core (8C)	9.0 to 9.9	71	80	Class 2 = stranded	Cu, bare	Polyolefin	Colour	False	Braiding	Foil	Pairs	9	305	8	7	Other	10	1 pieces
Data sheet	CAT7	AWG24	8 Core (8C)	9.0 to 9.9	71	80	Class 2 = stranded	Cu, bare	Polyolefin	Colour	False	Braiding	Foil	Pairs	9	500	8	7	Other	10	1 pieces
Data sheet	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	500	-	-	-	10	1 pieces

1,594.09 € ( 1,896.97 € )	76 working days
1,825.05 € ( 2,171.81 € )	10 working days
2,991.87 € ( 3,560.33 € )	10 working days
2,127.72 € ( 2,531.99 € )	5 working days
