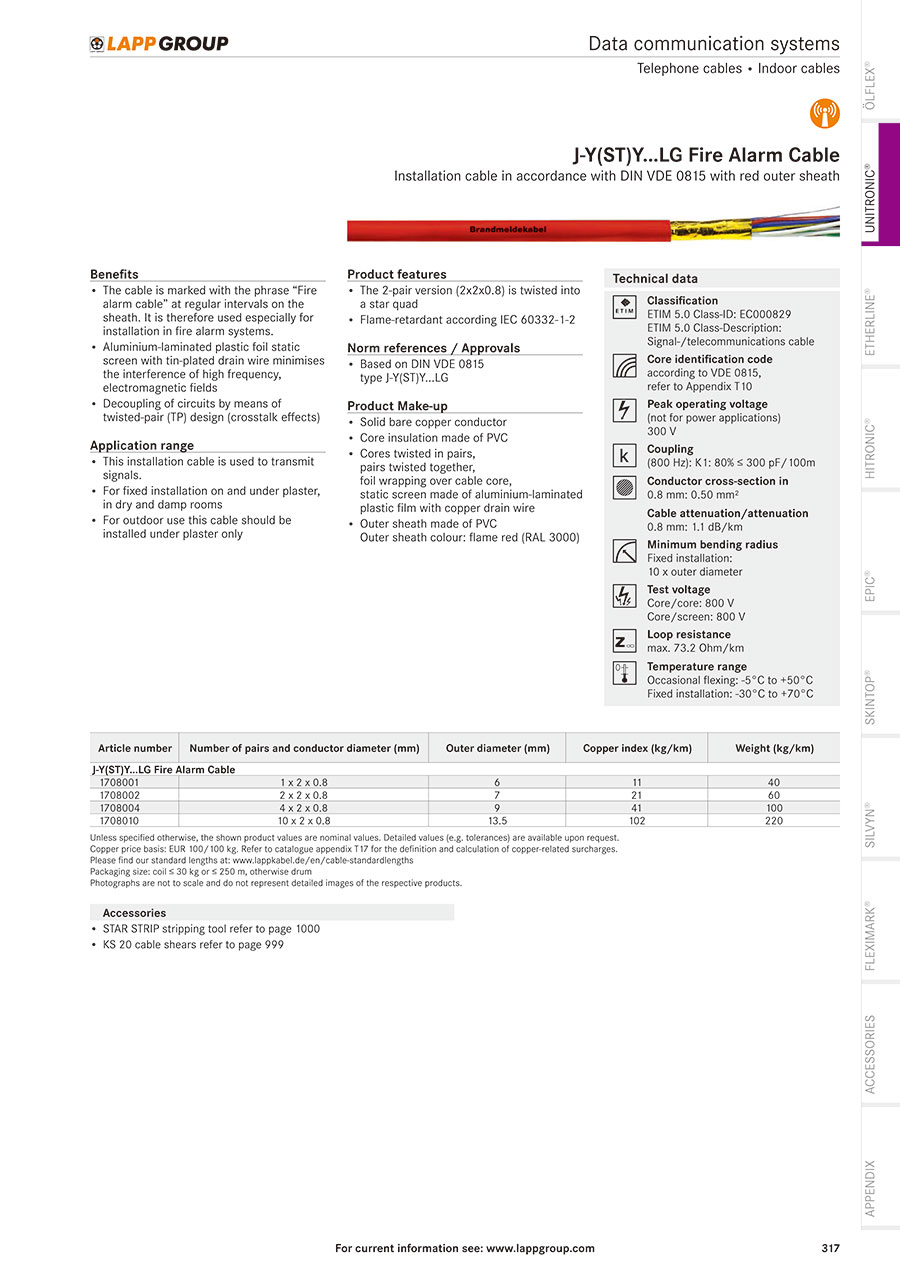

J-Y(ST)Y...LG Fire Alarm Cable
- Volume Discount
Installation cable in accordance with DIN VDE 0815 with red outer sheath
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 1708001/100 |
| 1708001/1000 |
| 1708001/250 |
| 1708001/500 |
| 1708002/100 |
| 1708002/1000 |
| 1708002/250 |
| 1708002/500 |
| 1708004/100 |
| 1708004/250 |
| 1708004/500 |
| 1708010/100 |
| 1708010/1000 |
| 1708010/250 |
| 1708010/500 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Length (m) | Number of cores (Core) | Outer diameter approx. (mm) | Number of stranding elements | Stranding element | |
|---|---|---|---|---|---|---|---|---|---|---|
43.87 € | 1 | Available | 5 Days | 10 | 100 | 2 | 6 | 1 | Pairs | |
438.70 € | 1 | Available | 5 Days | 10 | 1000 | 2 | 6 | 1 | Pairs | |
109.68 € | 1 | Available | 8 Days | 10 | 250 | 2 | 6 | 1 | Pairs | |
219.35 € | 1 | Available | 8 Days | 10 | 500 | 2 | 6 | 1 | Pairs | |
61.34 € | 1 | Available | 5 Days | 10 | 100 | 4 | 7 | 1 | Quad | |
613.36 € | 1 | Available | 5 Days | 10 | 1000 | 4 | 7 | 1 | Quad | |
153.33 € | 1 | Available | 60 Days | 10 | 250 | 4 | 7 | 1 | Quad | |
306.69 € | 1 | Available | 5 Days | 10 | 500 | 4 | 7 | 1 | Quad | |
137.14 € | 1 | Available | 46 Days | 10 | 100 | 8 | 9 | 4 | Pairs | |
342.83 € | 1 | Available | 5 Days | 10 | 250 | 8 | 9 | 4 | Pairs | |
685.67 € | 1 | Available | 5 Days | 10 | 500 | 8 | 9 | 4 | Pairs | |
277.85 € | 1 | Available | 46 Days | 10 | 100 | 20 | 13.5 | 10 | Pairs | |
2,778.52 € | 1 | Available | 5 Days | 10 | 1000 | 20 | 13.5 | 10 | Pairs | |
694.64 € | 1 | Available | 46 Days | 10 | 250 | 20 | 13.5 | 10 | Pairs | |
1,389.25 € | 1 | Available | Quote | 10 | 500 | 20 | 13.5 | 10 | Pairs |
Loading...
Basic information
| Colour outer sheath | Red | Material outer sheath | PVC | Core insulation | PVC |
|---|---|---|---|---|---|
| Diameter conductor | 0.8 | Operating temperature, flexible | 50 | Operating temperature, fix | 70 |
| Halogen free (acc. EN 50267-2-2) | False | Core identification | Colour | Flame retardant | In accordance with EN 60332-1-2 |
| Screen over stranding | Foil | Conductor category | Class 1 = solid | Protective sheath | No |
| Low smoke (acc. EN 61034-2) | False | Longitudinal water blocking | False | Radial water blocking | False |
| Outdoor use permitted | False | Stranding | Layers |
Configure
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
