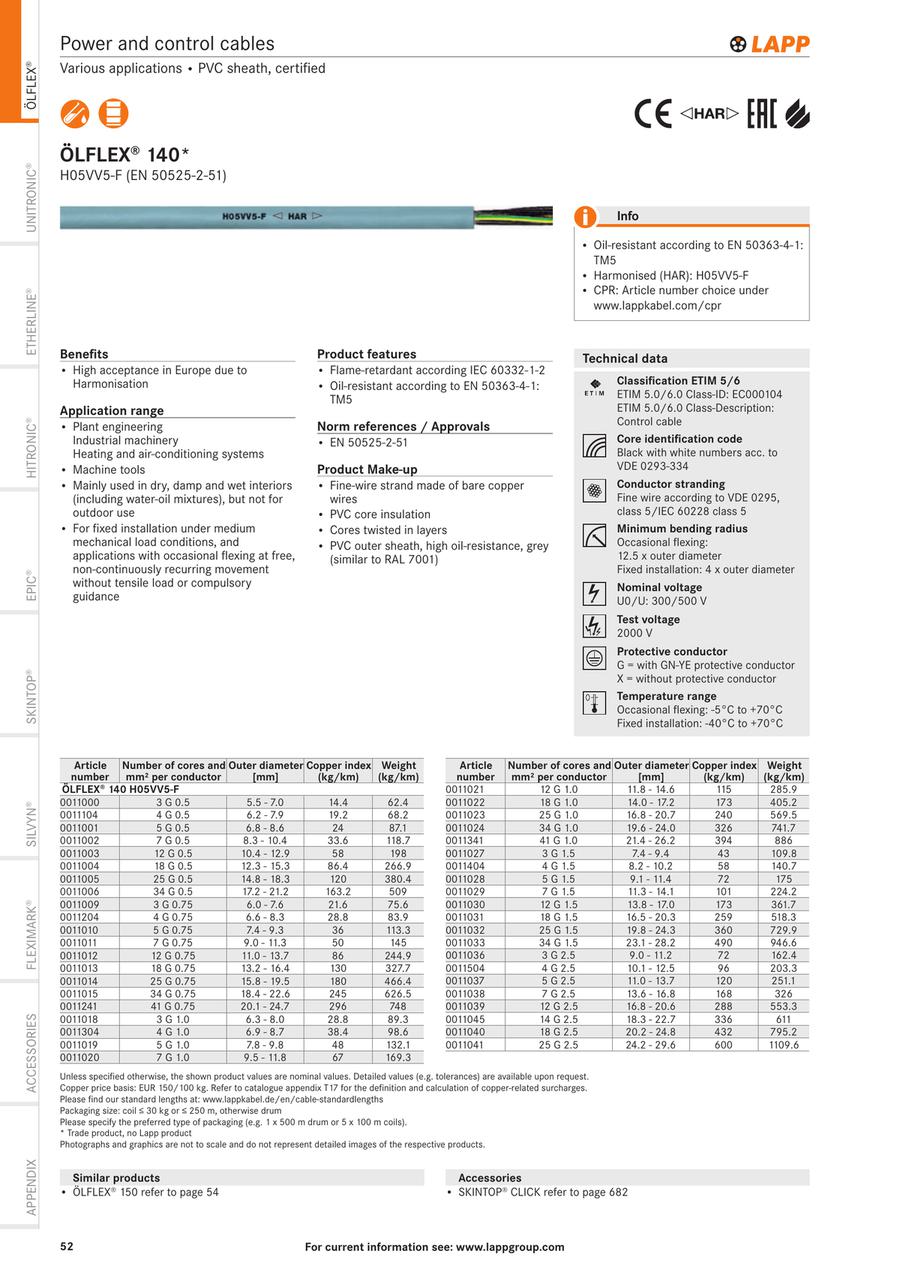

ÖLFLEX® 140*
- Volume Discount
· Made according to harmonised European type H05VV5-F, with the ◁HAR▷ testing mark for proven reliability and quality
· High oil resistance according to DIN EN 50363-4-1 (TM5)
· ◁HAR▷-style cables are widely accepted and can be used in Europe
Application
· Suitable for medium mechanical stress
· Can be used in dry, damp and particularly in oily environments
· For fixed installation and occasional flexing without tensile strain
· The PVC outer sheath is resistant to acids and alkalis
· For universal use for wiring machine-internal and cross-plant control circuits
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Length (m) | Nominal cross section conductor (mm2) | Number of cores (Core) | Outer diameter approx. (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|
38.71 € | 1 | Available | 5 Days | 10 | 50 | 0.5 | 3 | 6.3 | ||
77.44 € | 1 | Available | 5 Days | 10 | 100 | 0.5 | 3 | 6.3 | ||
774.36 € | 1 | Available | 8 Days | 10 | 1000 | 0.5 | 3 | 6.3 | ||
387.19 € | 1 | Available | 5 Days | 10 | 500 | 0.5 | 3 | 6.3 | ||
64.38 € | 1 | Available | 8 Days | 10 | 50 | 0.5 | 5 | 7.7 | ||
128.75 € | 1 | Available | 5 Days | 10 | 100 | 0.5 | 5 | 7.7 | ||
1,287.56 € | 1 | Available | 5 Days | 10 | 1000 | 0.5 | 5 | 7.7 | ||
643.79 € | 1 | Available | 5 Days | 10 | 500 | 0.5 | 5 | 7.7 | ||
83.11 € | 1 | Available | 8 Days | 10 | 50 | 0.5 | 7 | 9.4 | ||
166.23 € | 1 | Available | 5 Days | 10 | 100 | 0.5 | 7 | 9.4 | ||
1,662.41 € | 1 | Available | 5 Days | 10 | 1000 | 0.5 | 7 | 9.4 | ||
831.20 € | 1 | Available | 5 Days | 10 | 500 | 0.5 | 7 | 9.4 | ||
133.97 € | 1 | Available | 39 Days | 10 | 50 | 0.5 | 12 | 11.7 | ||
267.93 € | 1 | Available | 5 Days | 10 | 100 | 0.5 | 12 | 11.7 | ||
2,679.30 € | 1 | Available | 8 Days | 10 | 1000 | 0.5 | 12 | 11.7 | ||
1,339.64 € | 1 | Available | 5 Days | 10 | 500 | 0.5 | 12 | 11.7 | ||
197.42 € | 1 | Available | 46 Days | 10 | 50 | 0.5 | 18 | 13.8 | ||
394.82 € | 1 | Available | 5 Days | 10 | 100 | 0.5 | 18 | 13.8 | ||
3,948.20 € | 1 | Available | 8 Days | 10 | 1000 | 0.5 | 18 | 13.8 | ||
1,974.10 € | 1 | Available | 8 Days | 10 | 500 | 0.5 | 18 | 13.8 | ||
287.32 € | 1 | Available | 5 Days | 10 | 50 | 0.5 | 25 | 16.6 | ||
5,746.28 € | 1 | Available | Quote | 10 | 1000 | 0.5 | 25 | 16.6 | ||
2,873.13 € | 1 | Available | 5 Days | 10 | 500 | 0.5 | 25 | 16.6 | ||
386.88 € | 1 | Available | 60 Days | 10 | 50 | 0.5 | 34 | 19.2 | ||
7,737.72 € | 1 | Available | 60 Days | 10 | 1000 | 0.5 | 34 | 19.2 | ||
3,868.85 € | 1 | Available | 8 Days | 10 | 500 | 0.5 | 34 | 19.2 | ||
46.30 € | 1 | Available | 8 Days | 10 | 50 | 0.75 | 3 | 6.8 | ||
92.58 € | 1 | Available | 5 Days | 10 | 100 | 0.75 | 3 | 6.8 | ||
925.88 € | 1 | Available | 25 Days | 10 | 1000 | 0.75 | 3 | 6.8 | ||
277.76 € | 1 | Available | 5 Days | 10 | 300 | 0.75 | 3 | 6.8 | ||
462.95 € | 1 | Available | 5 Days | 10 | 500 | 0.75 | 3 | 6.8 | ||
74.17 € | 1 | Available | 25 Days | 10 | 50 | 0.75 | 5 | 8.4 | ||
148.33 € | 1 | Available | 5 Days | 10 | 100 | 0.75 | 5 | 8.4 | ||
1,483.25 € | 1 | Available | 5 Days | 10 | 1000 | 0.75 | 5 | 8.4 | ||
741.64 € | 1 | Available | 5 Days | 10 | 500 | 0.75 | 5 | 8.4 | ||
103.19 € | 1 | Available | 8 Days | 10 | 50 | 0.75 | 7 | 10.2 | ||
206.42 € | 1 | Available | 5 Days | 10 | 100 | 0.75 | 7 | 10.2 | ||
2,064.12 € | 1 | Available | 39 Days | 10 | 1000 | 0.75 | 7 | 10.2 | ||
619.23 € | 1 | Available | 8 Days | 10 | 300 | 0.75 | 7 | 10.2 | ||
1,032.06 € | 1 | Available | 5 Days | 10 | 500 | 0.75 | 7 | 10.2 | ||
155.31 € | 1 | Available | 5 Days | 10 | 50 | 0.75 | 12 | 12.4 | ||
310.62 € | 1 | Available | 5 Days | 10 | 100 | 0.75 | 12 | 12.4 | ||
3,106.20 € | 1 | Available | 5 Days | 10 | 1000 | 0.75 | 12 | 12.4 | ||
931.87 € | 1 | Available | 8 Days | 10 | 300 | 0.75 | 12 | 12.4 | ||
1,553.10 € | 1 | Available | 5 Days | 10 | 500 | 0.75 | 12 | 12.4 | ||
233.24 € | 1 | Available | 8 Days | 10 | 50 | 0.75 | 18 | 14.8 | ||
4,665.14 € | 1 | Available | 39 Days | 10 | 1000 | 0.75 | 18 | 14.8 | ||
1,399.54 € | 1 | Available | 39 Days | 10 | 300 | 0.75 | 18 | 14.8 | ||
2,332.57 € | 1 | Available | 5 Days | 10 | 500 | 0.75 | 18 | 14.8 | ||
329.37 € | 1 | Available | 8 Days | 10 | 50 | 0.75 | 25 | 17.7 | ||
6,587.42 € | 1 | Available | 39 Days | 10 | 1000 | 0.75 | 25 | 17.7 | ||
3,293.71 € | 1 | Available | 5 Days | 10 | 500 | 0.75 | 25 | 17.7 | ||
10,103.73 € | 1 | Available | 60 Days | 10 | 1000 | 0.75 | 34 | 20.5 | ||
5,051.87 € | 1 | Available | 5 Days | 10 | 500 | 0.75 | 34 | 20.5 | ||
51.70 € | 1 | Available | 8 Days | 10 | 50 | 1 | 3 | 7.2 | ||
103.40 € | 1 | Available | 5 Days | 10 | 100 | 1 | 3 | 7.2 | ||
1,034.07 € | 1 | Available | 5 Days | 10 | 1000 | 1 | 3 | 7.2 | ||
310.22 € | 1 | Available | 25 Days | 10 | 300 | 1 | 3 | 7.2 | ||
517.03 € | 1 | Available | 5 Days | 10 | 500 | 1 | 3 | 7.2 | ||
83.82 € | 1 | Available | 5 Days | 10 | 50 | 1 | 5 | 8.8 |
Loading...
Basic information
| Colour outer sheath | Grey | Material outer sheath | PVC (Polyvinyl Chloride) | Nominal voltage U | 500 |
|---|---|---|---|---|---|
| Operating temperature, fix | 70 | Operating temperature, flexible | 70 | Conductor category | Class 5 = flexible |
| Core identification | Numbers | Core insulation | PVC | Flame retardant | In accordance with EN 60332-1-2 |
| Halogen free (acc. EN 50267-2-2) | False | Low smoke (acc. EN 61034-2) | False | Low temperature resistant (acc. EN 60811-1-4) | False |
| Oil resistant (acc. EN 60811-2-1) | True | Protective conductor | True | Screen over stranding | None |
| Screen over stranding element | None | Stranding element | No |
Configure
Basic Attributes
-
Length(m)
-
Nominal cross section conductor(mm2)
-
Number of cores(Core)
-
Outer diameter approx.(mm)
Filter by standard shipping days
-
- All
- 5 Days or Less
- 8 Days or Less
- 25 Days or Less
- 32 Days or Less
- 39 Days or Less
- 46 Days or Less
- 60 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
