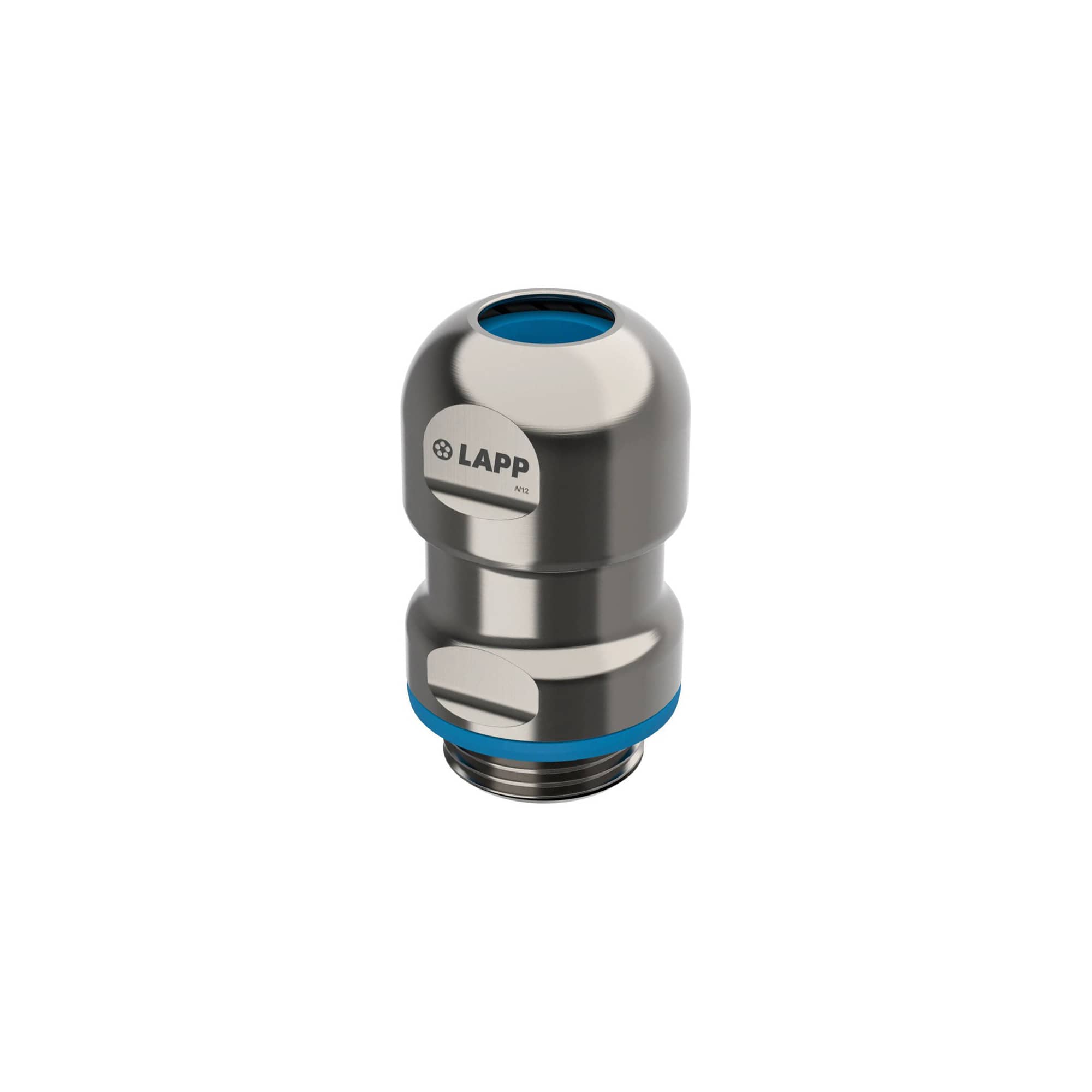

SKINTOP® HYGIENIC / SKINTOP® HYGIENIC-R
- Volume Discount
· Certified according to EHEDG for use in hygienic areas in Europe (certification type EL, certification class I AUX) while observing the hygienic design principles (guideline "Design criteria for hygienic machinery, appliances and components")
· The best possible sealing enables protection classes IP 68 (10 bar) and IP 69
· Multiple food and beverage certifications for Europe and North America
· Sealing material in blue to easily distinguish the cable glands used in the food industry
· Certified according to NSF/ANSI 169 for use in hygiene-critical areas in North America (Standard: Special Purpose Food Equipment and Devices/for Use in Food Zone Non Contact)
· Hygienic design with smooth surfaces and contours without corners and edges prevents residues such as liquids and micro-organisms from accumulating and posing a risk of contamination for food processing machinery This facilitates simple, frequent and safe product cleaning
· Sealing material compliant with FDA 21 CFR 1772600, specifically for the food and beverage industry in North America
· Tested resistance to ECOLAB® disinfectants and cleaning agents
Application
· Withstands high chemical and mechanical loads
· HYGIENIC-R variant with reducing seal insert for sealing cables with smaller diameters
· Especially for hygiene-critical areas of the food industry, where the product needs to be installed in the product zone or in the direct food production environment
· For sealing and strain relieving cable insertion into a housing
· Also suitable for use in hygiene-critical areas of the pharmaceutical and chemical industry
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 53105100 |
| 53105110 |
| 53105120 |
| 53105130 |
| 53105200 |
| 53105210 |
| 53105220 |
| 53105230 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Thread length | Nominal thread size metric/PG | Suitable for cable diameter | Wrench width | |
|---|---|---|---|---|---|---|---|---|---|---|
32.80 € | 5 | Available | 5 Days | 10 | 6,5 | 12 | 6 | 16 | ||
40.88 € | 5 | Available | 5 Days | 10 | 7 | 16 | 9 | 20 | ||
53.50 € | 5 | Available | 5 Days | 10 | 8 | 20 | 12 | 24 | ||
59.02 € | 5 | Available | 5 Days | 10 | 8 | 25 | 15.5 | 29 | ||
34.68 € | 5 | Available | 5 Days | 10 | 6,5 | 12 | 4.5 | 16 | ||
43.13 € | 5 | Available | 5 Days | 10 | 7 | 16 | 7 | 20 | ||
56.62 € | 5 | Available | 5 Days | 10 | 8 | 20 | 10 | 24 | ||
62.53 € | 5 | Available | 5 Days | 10 | 8 | 25 | 12.5 | 29 |
Loading...
Basic information
| Pitch thread | 1,5 | Material | Metal | Material quality | Stainless steel V4A |
|---|---|---|---|---|---|
| Model | Straight | Thread type | Metric | Glass-fibre reinforced | False |
| Halogen free | False | Degree of protection (IP) | IP68 | Bend radius protection/trumpet flare | False |
| Explosion-tested version | False | With locknut | True | Surface treatment | Untreated |
| Type of sealing | Sealing ring | Operating temperature | 100 | Colour | Other |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
