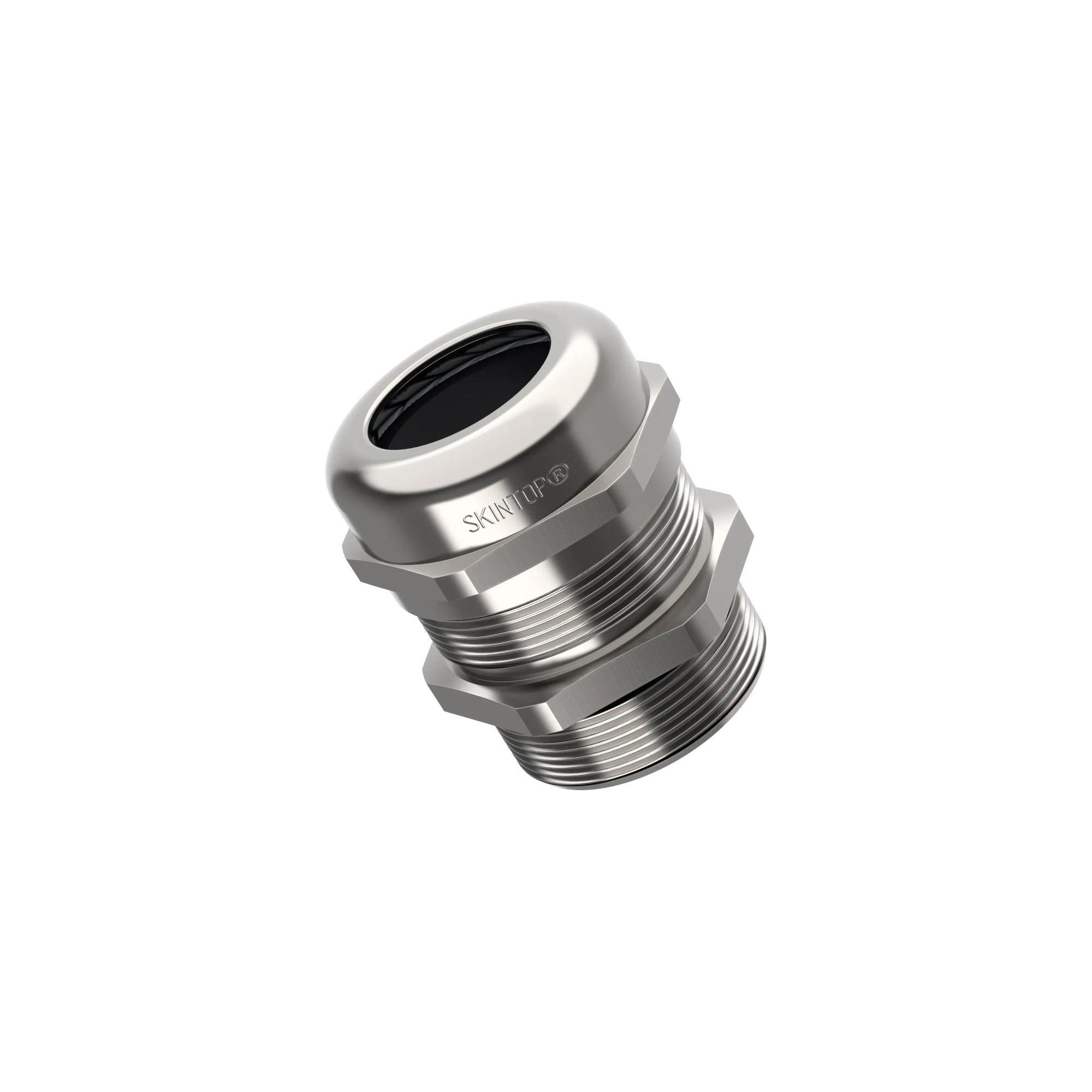

SKINTOP® MS-SC-M
- Volume Discount
· Large, variable clamping range for different cable outer diameters
· Optimum EMC protection thanks to integrated, highly conductive and flexible contact spring, which creates a low-resistance transition between the copper braided screening and the gland
· UL certification according to technical data enables the product to be used on the North American market
· Item numbers ending with “LF” are lead-free product alternatives with otherwise identical product properties “Lead-free” items do not include lead, which is currently permitted to account for up to four per cent in copper alloys, but could in future be banned in accordance with the RoHS directive
· Suitable for cables with and without an inner sheath
· Safe, fast and uncomplicated installation
· The best possible sealing enables protection classes IP 68 (10 bar) and IP 69
Application
· For painted, anodised or powder-coated housings, use the SKINDICHT® SM-PE-M lock nut for equipotential bonding
· Withstands high chemical and mechanical loads
· The SKINTOP® MS-SC-M-XL version is particularly suitable for thick-walled housings thanks to the exceptionally long connection thread
· Suitable for outdoor use, subject to the temperature range
· For use in control systems, motors and frequency converters
· For EMC-compliant insertion of copper-screened cables
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 53112625 |
| 53112635 |
| 53112645 |
| 53112655 |
| 53112665 |
| 53112670 |
| 53112675 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Thread length | Nominal thread size metric/PG | Wrench width | |
|---|---|---|---|---|---|---|---|---|---|
9.10 € | 50 | Available | 5 Days | 10 | 12 | 16 | 20 | ||
11.08 € | 25 | Available | 5 Days | 10 | 12 | 20 | 24 | ||
16.44 € | 25 | Available | 5 Days | 10 | 12 | 25 | 29 | ||
20.93 € | 25 | Available | 8 Days | 10 | 15 | 32 | 36 | ||
34.95 € | 10 | Available | 5 Days | 10 | 15 | 40 | 45 | ||
54.78 € | 5 | Available | 5 Days | 10 | 10 | 50 | 54 | ||
71.62 € | 5 | Available | 5 Days | 10 | 15 | 50 | 54 |
Loading...
Basic information
| Pitch thread | 1.5 | Material | Metal | Material quality | Brass |
|---|---|---|---|---|---|
| Model | Straight | Thread type | Metric | Glass-fibre reinforced | False |
| Shock resistant | False | Halogen free | False | Degree of protection (IP) | IP68 |
| Bend radius protection/trumpet flare | False | Explosion-tested version | False | With locknut | False |
| Surface treatment | Nickel-plated | Operating temperature | 100 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
