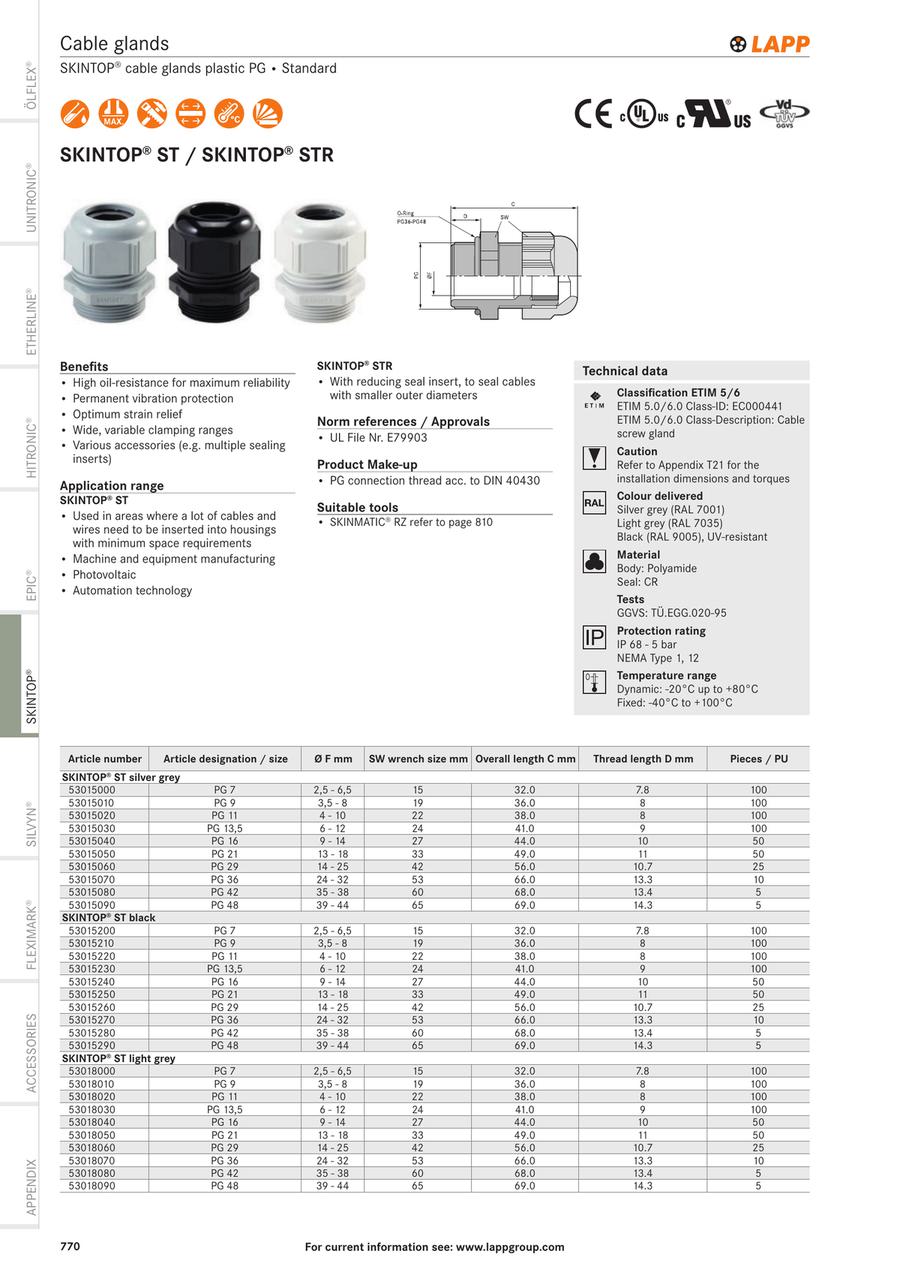

SKINTOP® ST
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Thread length | Nominal thread size metric/PG | Suitable for cable diameter | Wrench width | Colour | |
|---|---|---|---|---|---|---|---|---|---|---|
0.50 € | 100 | Available | 8 Days | 10 | 8 | 7 | 6.5 | 15 | - | |
0.52 € | 100 | Available | 5 Days | 10 | 8 | 9 | 8 | 19 | - | |
0.63 € | 100 | Available | 8 Days | 10 | 8 | 11 | 10 | 22 | - | |
0.75 € | 100 | Available | 5 Days | 10 | 9 | 13.5 | 12 | 24 | - | |
0.83 € | 50 | Available | 5 Days | 10 | 10 | 16 | 14 | 27 | - | |
1.23 € | 50 | Available | 8 Days | 10 | 11 | 21 | 18 | 33 | - | |
2.37 € | 25 | Available | 8 Days | 10 | 11 | 29 | 25 | 42 | - | |
9.12 € | 10 | Available | 32 Days | 10 | 13 | 36 | 32 | 53 | - | |
15.82 € | 5 | Available | 5 Days | 10 | 13 | 42 | 38 | 60 | - | |
18.28 € | 5 | Available | 5 Days | 10 | 14 | 48 | 44 | 65 | - | |
0.65 € | 100 | Available | 8 Days | 10 | 8 | 7 | 6.5 | 15 | Black | |
0.65 € | 100 | Available | 8 Days | 10 | 8 | 9 | 8 | 19 | Black | |
0.83 € | 100 | Available | 8 Days | 10 | 8 | 11 | 10 | 22 | Black | |
0.93 € | 100 | Available | 8 Days | 10 | 9 | 13.5 | 12 | 24 | Black | |
1.00 € | 50 | Available | 8 Days | 10 | 10 | 16 | 14 | 27 | Black | |
1.47 € | 50 | Available | 8 Days | 10 | 11 | 21 | 18 | 33 | Black | |
2.88 € | 25 | Available | 5 Days | 10 | 11 | 29 | 25 | 42 | Black | |
10.65 € | 10 | Available | 5 Days | 10 | 13 | 36 | 32 | 53 | Black | |
17.58 € | 5 | Available | 5 Days | 10 | 13 | 42 | 38 | 60 | Black | |
19.73 € | 5 | Available | 8 Days | 10 | 14 | 48 | 44 | 65 | Black | |
0.65 € | 100 | Available | 5 Days | 10 | 8 | 7 | 6.5 | 15 | Light grey | |
0.65 € | 100 | Available | 5 Days | 10 | 8 | 9 | 8 | 19 | Light grey | |
0.83 € | 100 | Available | 8 Days | 10 | 8 | 11 | 10 | 22 | Light grey | |
0.93 € | 100 | Available | 5 Days | 10 | 9 | 13.5 | 12 | 24 | Light grey | |
1.00 € | 50 | Available | 5 Days | 10 | 10 | 16 | 14 | 27 | Light grey | |
1.47 € | 50 | Available | 5 Days | 10 | 11 | 21 | 18 | 33 | Light grey | |
2.88 € | 25 | Available | 5 Days | 10 | 11 | 29 | 25 | 42 | Light grey | |
10.65 € | 10 | Available | 5 Days | 10 | 13 | 36 | 32 | 53 | Light grey | |
17.58 € | 5 | Available | 5 Days | 10 | 13 | 42 | 38 | 60 | Light grey | |
19.73 € | 5 | Available | 5 Days | 10 | 14 | 48 | 44 | 65 | Light grey |
Loading...
Basic information
| Material | Plastic | Material quality | Polyamide | Model | Straight |
|---|---|---|---|---|---|
| Thread type | PG | Glass-fibre reinforced | False | Shock resistant | False |
| Halogen free | False | Degree of protection (IP) | IP68 | Bend radius protection/trumpet flare | False |
| Explosion-tested version | False | With locknut | False | Surface treatment | Untreated |
| Operating temperature | 80 |
Configure
Basic Attributes
-
Thread length
-
Nominal thread size metric/PG
-
Suitable for cable diameter
-
Wrench width
-
Colour
- Black
- Light grey
Filter by standard shipping days
-
- All
- 5 Days or Less
- 8 Days or Less
- 32 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
