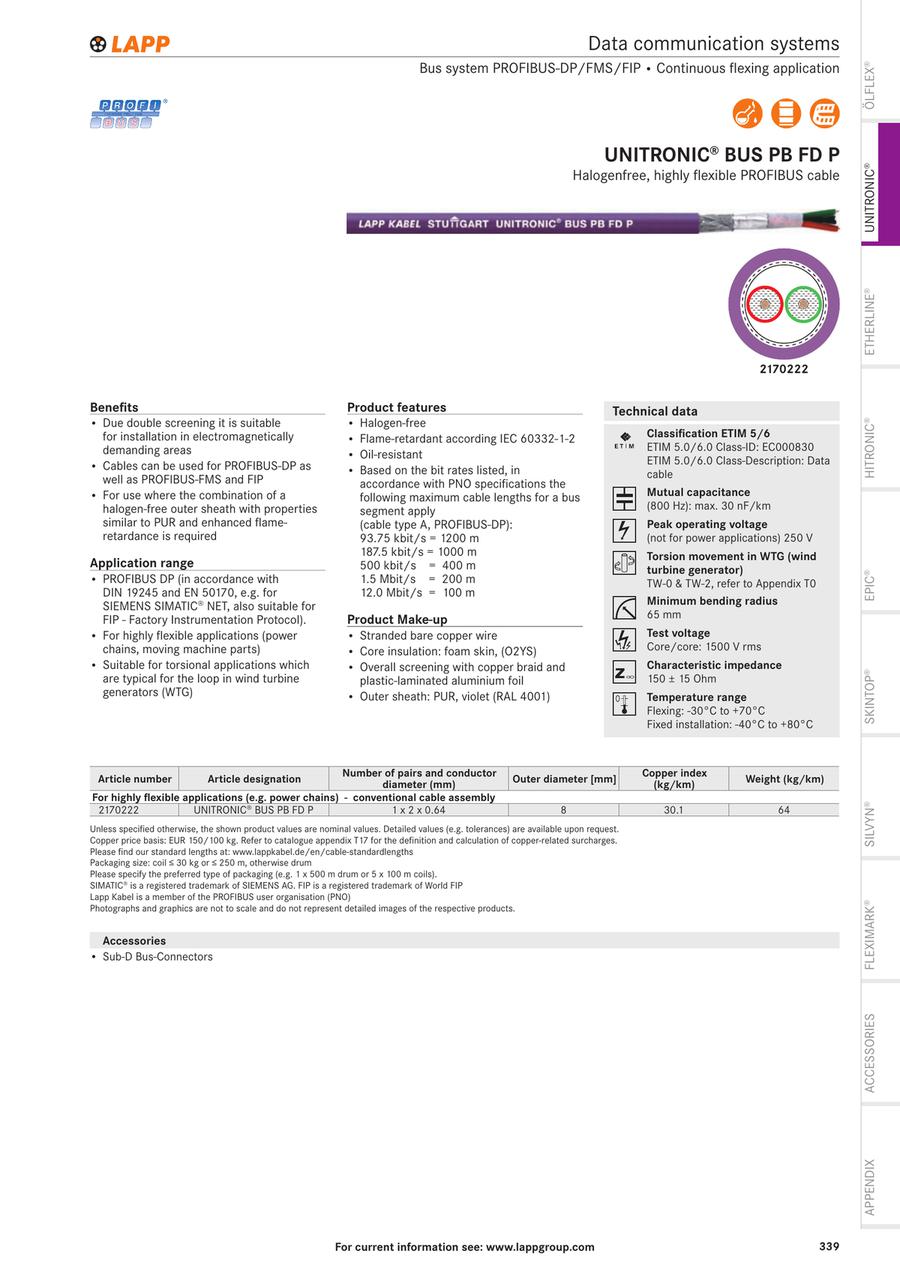

UNITRONIC® BUS PB FD P
- Volume Discount
Bus cable for PROFIBUS-DP, -FMS and FIP. Halogen free and enhanced flame retardance. Temperature range from -40°C bis +80°C
Highly flexible application
Highly flexible application
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 2170222/50 |
| 2170222/100 |
| 2170222/1000 |
| 2170222/200 |
| 2170222/300 |
| 2170222/500 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Length (m) | |
|---|---|---|---|---|---|---|
153.63 € | 1 | Available | 5 Days | 10 | 50 | |
307.27 € | 1 | Available | 5 Days | 10 | 100 | |
3,072.71 € | 1 | Available | 5 Days | 10 | 1000 | |
614.55 € | 1 | Available | 5 Days | 10 | 200 | |
921.81 € | 1 | Available | 5 Days | 10 | 300 | |
1,536.35 € | 1 | Available | 5 Days | 10 | 500 |
Loading...
Basic information
| Category | Other | Conductor Size | AWG24 | No. of Cores | 2 Core (2C) |
|---|---|---|---|---|---|
| Cable Outer Diameter(mm) | 8.0 to 8.9 | Sheath Material | PUR | Diameter conductor | 0,64 |
| Operating temperature, flexible | 70 | Conductor category | Class 6 = very flexible | Conductor material | Cu, bare |
| Core insulation | PE | Core identification | Colour | Flame retardant | In accordance with EN 6033212 |
| Halogen free (acc. EN 50267-2-2) | True | Low smoke (acc. EN 61034-2) | False | Screen over stranding | Foil + braiding |
| Screen over stranding element | None | Stranding element | Pairs | Outer diameter approx.(mm) | 8 |
| Nominal cross section conductor(mm2) | 0,25 | Number of cores(Core) | 2 | Colour outer sheath | Other |
| Category | Other | Material outer sheath | PUR (Polyurethane) |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
