Button RF 15 illuminated
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 3.14100.033 |
| 3.14200.012 |
| 704458 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Resistance (mΩ) | Forward voltage U(F) (V) | Durability | Illumination type | Switching capacity (W) | Light colour | Lighting type | |
|---|---|---|---|---|---|---|---|---|---|---|---|
7.35 € | 1 | Available | 3 Days | (New status) ≤ 100 | 1.9 | 10 Million cycles | 1 LED (point illumination) | (ohmic load) 2 | Yellow | area illumination | |

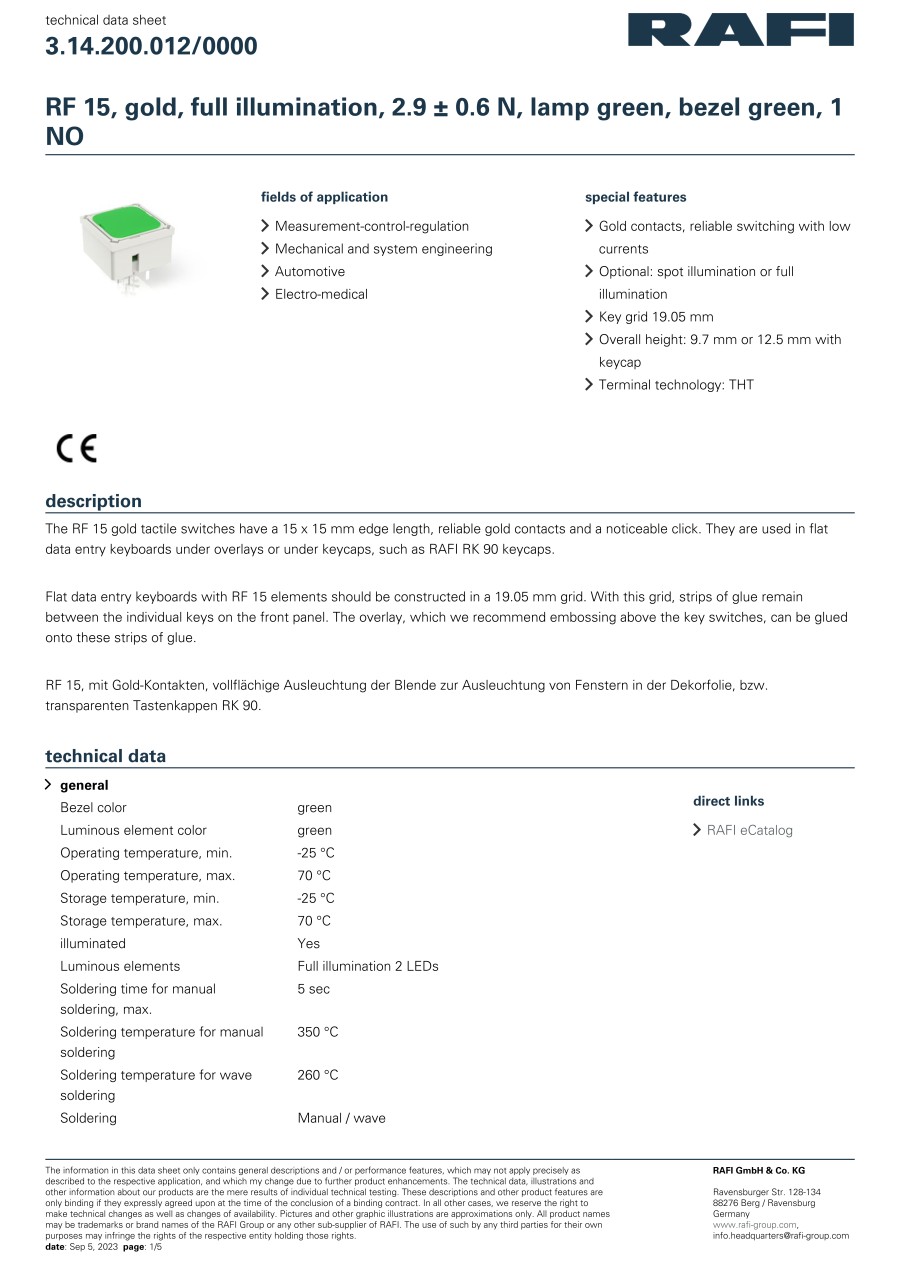

13.75 € | 1 | Available | 3 Days | (New state) ≤ 100 | 2.1 | 10 million cycles | 2 LED (Super-LEDs, improved illumination) | (Resistive load) 2 | Green | area illumination | |
7.35 € | 1 | Available | 3 Days | (New conditions) ≤ 100 | 2.1 | 10 Mio cycles | 1 LED (point illumination) | (ohmic load) 2 | Green | spot lighting |
Loading...
Basic information
| Functions (switches) | momentary | Product size (height)(mm) | 9.7 | Actuating force(N) | 3 |
|---|---|---|---|---|---|
| Actuating force (Newton)(N) | 2 - 3 | Board thickness (max.)(mm) | 9.7 | Bounce duration(ms) | ≤ 5 |
| Front panel cut-out(mm) | 15 x 15 | Max. temperature(°C) | +70 | Min. temperature(°C) | -25 |
| Temperature range(°C) | -25 - +70 | Switching capacity (max.)(W) | 2 | Switching current(mA) | 0.01 - 100 |
| Switching current (max.)(A) | 0.1 | Switching voltage(V DC/AC) | 42 | Contact type | 1 Closer |
| Type (misc.) | Quick-action contact, 1 NO | Switch position | 1 x Off/(On) | Bulb type | LED |
| Connection | tin-plated | Connection (components) | Solder pins | Contact material | Au (gold) |
| Switch features | Planar | Switch type (category) | Pushbutton |
Configure
Basic Attributes
-
Resistance(mΩ)
- (New conditions) ≤ 100
- (New state) ≤ 100
- (New status) ≤ 100
-
Forward voltage U(F)(V)
- 1.9
- 2.1
-
Durability
-
Illumination type
- 1 LED (point illumination)
- 2 LED (Super-LEDs, improved illumination)
-
Switching capacity(W)
-
Light colour
- Green
- Yellow
-
Lighting type
- area illumination
- spot lighting
Filter by standard shipping days
-
- All
- 3 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
