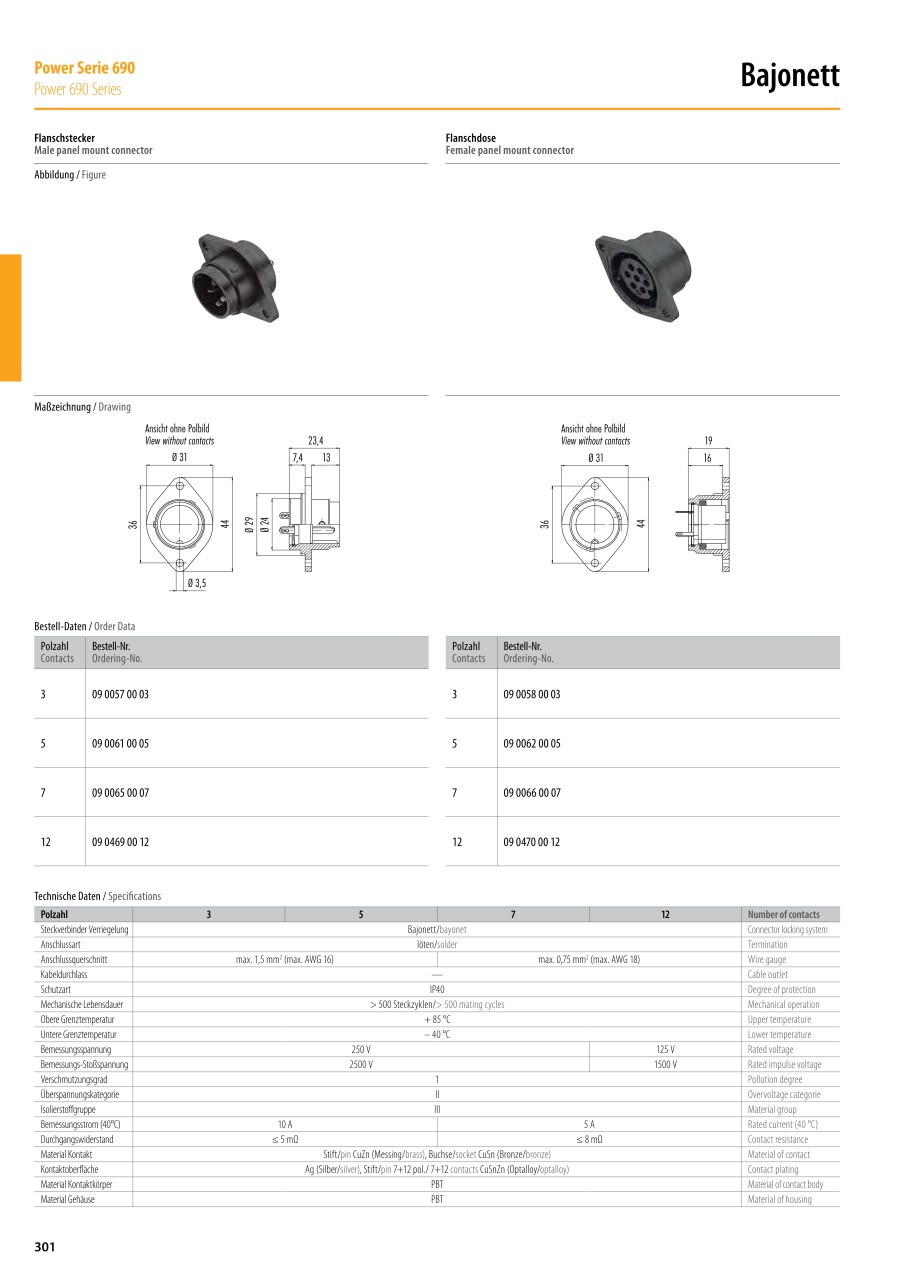

Bayonet female panel mount connector
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 09 0058 00 03 |
| 09 0062 00 05 |
| 09 0066 00 07 |
| 09 0978 00 03 |
| 09 0982 00 04 |
| 09 0998 00 05 |
| 09 9478 00 07 |
| 99 0608 00 03 |
| 99 0612 00 04 |
| 99 0616 00 05 |
| 99 0624 00 07 |
| 99 0648 00 08 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Nominal current (A) | Nominal voltage (V) | AWG | Cross section (mm²) | Cross section (max.) (mm²) | Cross-section range | Max. temperature (°C) | Min. temperature (°C) | Mounting hole diameter | Number of pins | Total number of pins | Nominal current (details) (A) | Nominal voltage (details) (V) | Series (connectors) | Connector type | Contact material | Reading category | Seal type | Type (misc.) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
15.87 € | 1 | Available | 30 Days | 10 | 250 | 16 | 2.5 | 2.5 | 2.5 mm² (max) | - | - | - | 3 | 3 | 10 | 250 | 690 | Plug | Ag (Silver) | II | Bayonet | Flange socket | ||
20.23 € | 1 | Available | 3 Days | 10 | 250 | 16 | 2.5 | 2.5 | 2.5 mm² (max) | - | - | - | 5 | 5 | 10 | 250 | 690 | Plug | Ag (Silver) | II | Bayonet | Flange socket | ||
22.35 € | 1 | Available | 3 Days | 5 | 250 | 20 | 0.75 | 0.75 | 0.75 mm² (max) | - | - | - | 7 | 7 | 5 | 250 | 690 | Plug | Ag (Silver) | II | Bayonet | Flange socket | ||
7.88 € | 1 | Available | 3 Days | 4 | 125 | 24 | 0.25 | 0.25 | 0.25 mm² (max) | +125 | -55 | M10 x 0.75 | 3 | 3 | 4 | 125 | 710 | Sleeve plug | Au (gold) | - | bayonet | Flange plug | ||
7.88 € | 1 | Available | 3 Days | 3 | 125 | 24 | 0.25 | 0.25 | 0.25 mm² (max) | +125 | -55 | M10 x 0.75 | 4 | 4 | 3 | 125 | 710 | Sleeve plug | Au (gold) | - | bayonet | Flange plug | ||
7.88 € | 1 | Available | 3 Days | 3 | 125 | 24 | 0.25 | 0.25 | 0.25 mm² (max) | +125 | -55 | M10 x 0.75 | 5 | 5 | 3 | 125 | 710 | Sleeve plug | Au (gold) | - | bayonet | Flange plug | ||
12.67 € | 1 | Available | 3 Days | 1 | 125 | 26 | 0.14 | 0.14 | 0.14 mm² (max) | +125 | -55 | M10 x 0.75 | 7 | 7 | 1 | 125 | 710 | Sleeve plug | Au (gold) | - | bayonet | Flange plug | ||
5.01 € | 1 | Available | 3 Days | 7 | 250 | 20 | 0.75 | 0.75 | 0.75 mm² (max) | +55 | -20 | M18 x 0.75 | 3 | 3 | 7 | 250 V / 3 | 678 | Sleeve plug | Ag (Silver) | - | bayonet | Flange socket | ||
6.28 € | 1 | Available | 3 Days | 6 | 250 | 20 | 0.75 | 0.75 | 0.75 mm² (max) | +55 | -20 | M18 x 0.75 | 4 | 4 | 6 | 250 V | 678 | Sleeve plug | Ag (Silver) | - | bayonet | Flange socket | ||
5.75 € | 1 | Available | 3 Days | 6 | 250 | 20 | 0.75 | 0.75 | 0.75 mm² (max) | +55 | -20 | M18 x 0.75 | 5 | 5 | 6 | 250 V | 678 | Sleeve plug | Ag (Silver) | - | bayonet | Flange socket | ||
6.28 € | 1 | Available | 3 Days | 5 | 125 | 20 | 0.75 | 0.75 | 0.75 mm² (max) | +55 | -20 | M18 x 0.75 | 7 | 7 | 5 | 125 | 678 | Sleeve plug | Ag (Silver) | - | bayonet | Flange socket | ||
11.61 € | 1 | Available | 3 Days | 5 | 60 | 20 | 0.75 | 0.75 | 0.75 mm² (max) | +55 | -20 | M18 x 0.75 | 8 | 8 | 5 | 60 | 678 | Sleeve plug | Ag (Silver) | - | bayonet | Flange socket |
Loading...
Basic information
| Connection angle(°) | 180 | Contamination level | 1 | Connection (components) | Soldering |
|---|---|---|---|---|---|
| Connector type (category) | Bullet connector |
Configure
Basic Attributes
-
Nominal current(A)
-
Nominal voltage(V)
-
AWG
- 16
- 20
- 24
- 26
-
Cross section(mm²)
-
Cross section (max.)(mm²)
- 0.14
- 0.25
- 0.75
- 2.5
-
Cross-section range
- 0.14 mm² (max)
- 0.25 mm² (max)
- 0.75 mm² (max)
- 2.5 mm² (max)
-
Max. temperature(°C)
-
Min. temperature(°C)
- -55
- -20
-
Mounting hole diameter
- M10 x 0.75
- M18 x 0.75
-
Number of pins
-
Total number of pins
-
Nominal current (details)(A)
-
Nominal voltage (details)(V)
-
Series (connectors)
-
Connector type
- Plug
- Sleeve plug
-
Contact material
-
Reading category
- II
-
Seal type
- Bayonet
- bayonet
-
Type (misc.)
Filter by standard shipping days
-
- All
- 3 Days or Less
- 30 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
