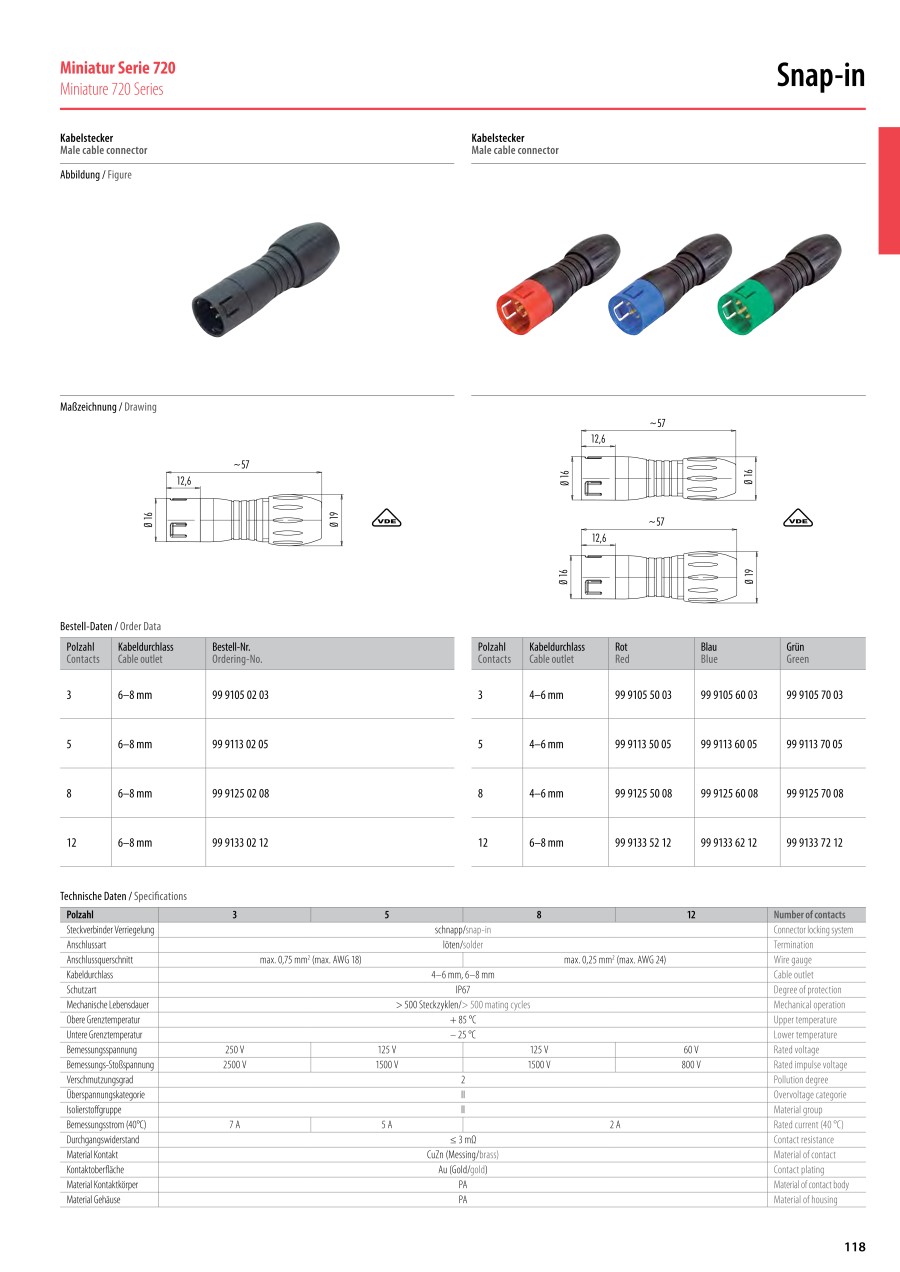

Snap-In IP67 cable connector
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 99 9105 50 03 |
| 99 9105 60 03 |
| 99 9105 70 03 |
| 99 9113 50 05 |
| 99 9113 60 05 |
| 99 9125 00 08 |
| 99 9125 50 08 |
| 99 9125 70 08 |
| 99 9205 00 03 |
| 99 9209 00 04 |
| 99 9213 00 05 |
| 99 9225 00 08 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Nominal current (A) | Nominal voltage (V) | AWG | Cable Ø (max.) (mm) | Cable Ø (min.) (mm) | Cross section (mm²) | Cross section (max.) (mm²) | Cross-section range | Max. temperature (°C) | Min. temperature (°C) | Number of pins | Total number of pins | Nominal current (details) (A) | Nominal voltage (details) (V) | Series (connectors) | Contamination level | Case material | Colour | Connector type | Contact material | Seal type | Type (misc.) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
8.93 € | 1 | Available | 3 Days | 7 | 250 | 20 | 6 | 5.3 | - | 0.75 | 0.75 mm² (max) | - | - | 3 | 3 | - | - | 720 | - | PA | Red | Plug | Gold plated | Snap in | - | ||
8.93 € | 1 | Available | 3 Days | 10 | 250 | 20 | 6 | 5.3 | - | 0.75 | 0.75 mm² (max) | - | - | 3 | 3 | - | - | 720 | - | PA | Blue | Plug | Gold plated | Snap in | - | ||
8.93 € | 1 | Available | 3 Days | 6 | 250 | 20 | 6 | 4 | - | 0.75 | 0.75 mm² (max) | +125 | -40 | 3 | 3 | - | - | 720 | - | PA | Green | Plug | Gold plated | Snap in | - | ||
11.61 € | 1 | Available | 3 Days | 10 | 250 | 20 | 6 | 5.3 | - | 0.75 | 0.75 mm² (max) | - | - | 5 | 5 | - | - | 720 | - | PA | Red | Plug | Gold plated | Snap in | - | ||
11.61 € | 1 | Available | 3 Days | 10 | 250 | 20 | 6 | 4 | - | 0.75 | 0.75 mm² (max) | - | - | 5 | 5 | - | - | 720 | - | PA | Blue | Plug | Gold plated | Snap in | - | ||
13.75 € | 1 | Available | 3 Days | 2 | 125 | 20 | 6 | 4 | 0.25 | 0.25 | 0.25 mm² (max) | +85 | -40 | 8 | 8 | 2 | 125 | 720 | 2 | - | - | Connector | Au (gold) | Snap-In | Cable socket | ||
14.81 € | 1 | Available | 3 Days | 2 | 125 | 24 | 6 | 5.3 | - | 0.25 | 0.25 mm² (max) | - | - | 8 | 8 | - | - | 720 | - | PA | Red | Plug | Gold plated | Snap in | - | ||
14.81 € | 1 | Available | 3 Days | 6 | 400 | 24 | 6 | 4 | - | 0.25 | 0.25 mm² (max) | +125 | -40 | 8 | 8 | - | - | 720 | - | PA | Green | Plug | Gold plated | Snap in | - | ||
8.40 € | 1 | Available | 3 Days | 3 | 125 | 24 | 5 | 3 | 0.25 | 0.25 | 0.25 mm² (max) | +125 | -55 | 3 | 3 | 3 | 125 | 620 | 2 | - | - | Plug | Au (gold) | Snap in | Cable connector | ||
9.45 € | 1 | Available | 3 Days | 2.5 | 125 | 24 | 5 | 3 | 0.25 | 0.25 | 0.25 mm² (max) | +125 | -55 | 4 | 4 | 2.5 | 125 | 620 | 2 | - | - | Plug | Au (gold) | Snap in | Cable connector | ||
9.99 € | 1 | Available | 3 Days | 2 | 63 | 24 | 5 | 3 | 0.25 | 0.25 | 0.25 mm² (max) | +125 | -55 | 5 | 5 | 2 | 60 | 620 | 2 | - | - | Plug | Au (gold) | Snap in | Cable connector | ||
14.81 € | 1 | Available | 3 Days | 1 | 63 | 24 | 5 | 3 | 0.25 | 0.25 | 0.25 mm² (max) | +125 | -55 | 8 | 8 | 1 | 60 | 620 | 2 | - | - | Plug | Au (gold) | Snap in | Cable connector |
Loading...
Basic information
| Connection direction | straight | Connection angle(°) | 180 | Connection (components) | Soldering |
|---|---|---|---|---|---|
| Connector type (category) | Bullet connector |
Configure
Basic Attributes
-
Nominal current(A)
-
Nominal voltage(V)
-
AWG
- 20
- 24
-
Cable Ø (max.)(mm)
-
Cable Ø (min.)(mm)
-
Cross section(mm²)
-
Cross section (max.)(mm²)
- 0.25
- 0.75
-
Cross-section range
- 0.25 mm² (max)
- 0.75 mm² (max)
-
Max. temperature(°C)
-
Min. temperature(°C)
- -55
- -40
-
Number of pins
-
Total number of pins
-
Nominal current (details)(A)
-
Nominal voltage (details)(V)
-
Series (connectors)
-
Contamination level
- 2
-
Case material
- PA
-
Colour
- Blue
- Green
- Red
-
Connector type
- Connector
- Plug
-
Contact material
-
Seal type
- Snap-In
- Snap in
-
Type (misc.)
Filter by standard shipping days
-
- All
- 3 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
