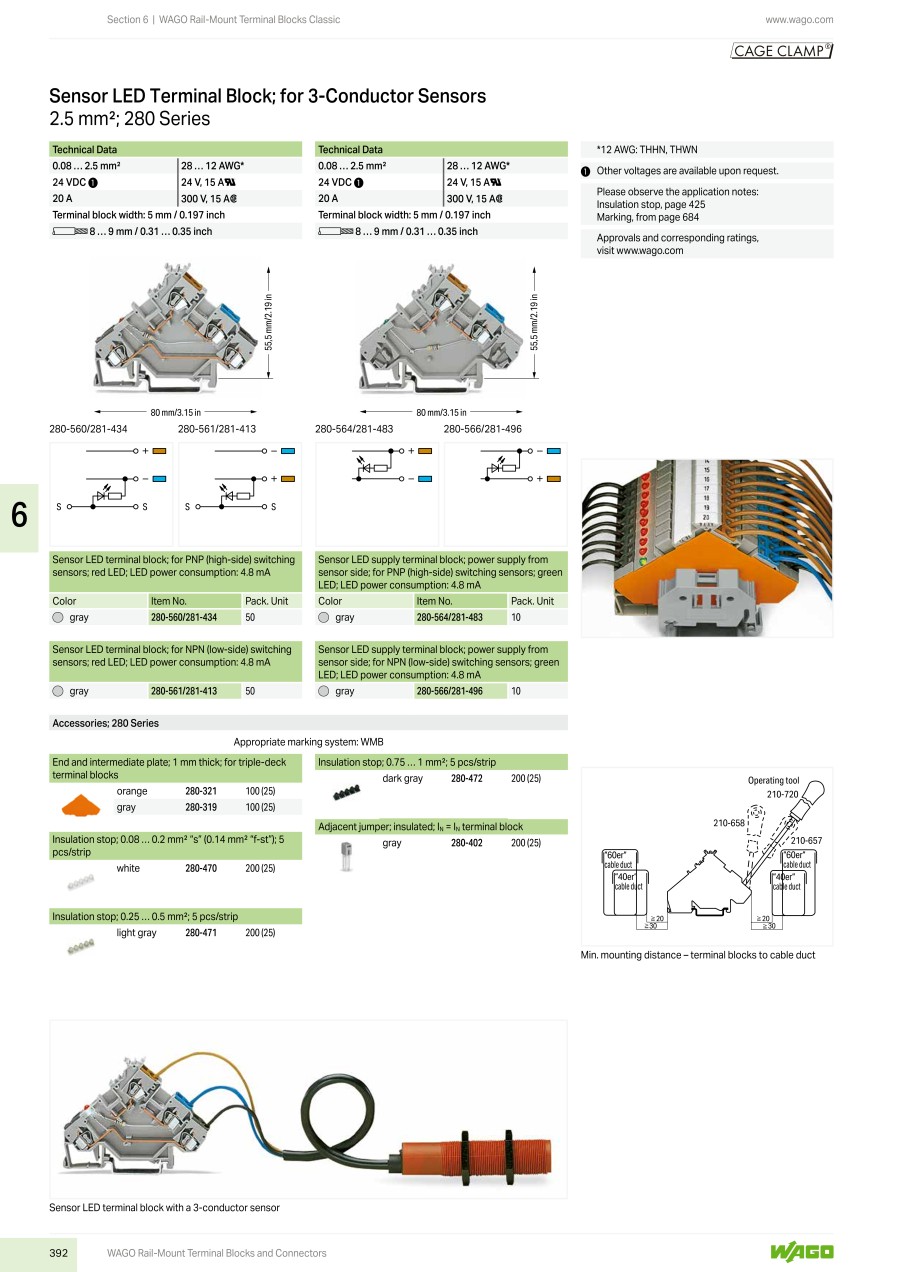

Sensor LED supply terminal block 280【10-20 Pieces Per Package】
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 280-566/281-496 |
| 280-574/281-483 |
| 280-576/281-496 |
| 280-577/281-496 |
| Part Number | Related to |
Standard Unit Price
| Number of pc(s). included in pkg. | Minimum order quantity | Volume Discount | Number of pins (Pole) | Product size (height) (mm) | Product size (width) (mm) | Clamp width (mm) | No. of rows | |
|---|---|---|---|---|---|---|---|---|---|---|---|
91.49 € | 10 Pieces Per Package | 1 pack | Available | 7 Days | - | 55.50 | 5 | 5 | - | ||
108.93 € | 10 Pieces Per Package | 1 pack | Available | 7 Days | 2 | 63.50 | 5 | 5 | 3 | ||
100.83 € | 10 Pieces Per Package | 1 pack | 8 Days | 2 | 63.50 | 5 | 5 | 3 | |||
196.07 € | 20 Pieces Per Package | 1 pack | 25 Days | 2 | 63.50 | 6 | 6 | 3 |
Loading...
Basic information
| Stripping length (max.)(mm) | 9 | Min. stripping length(mm) | 8 | Nominal current(A) | 20 |
|---|---|---|---|---|---|
| Nominal voltage(V) | 24 | Min. cross section (flexible)(mm²) | 0.08 | Max. cross section (flexible)(mm²) | 2.50 |
| Min. cross section (inflexible)(mm²) | 0.08 | Max. cross section (inflexible)(mm²) | 2.5 | AWG (min.) | 28 |
| AWG max. | 14 | Colour | Grey | Connector type (category) | Proximity switch terminal |
| Configuration | L | Connection (components) | Pull spring | Connector features | + green LEED |
| Industrial goods | Yes |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
