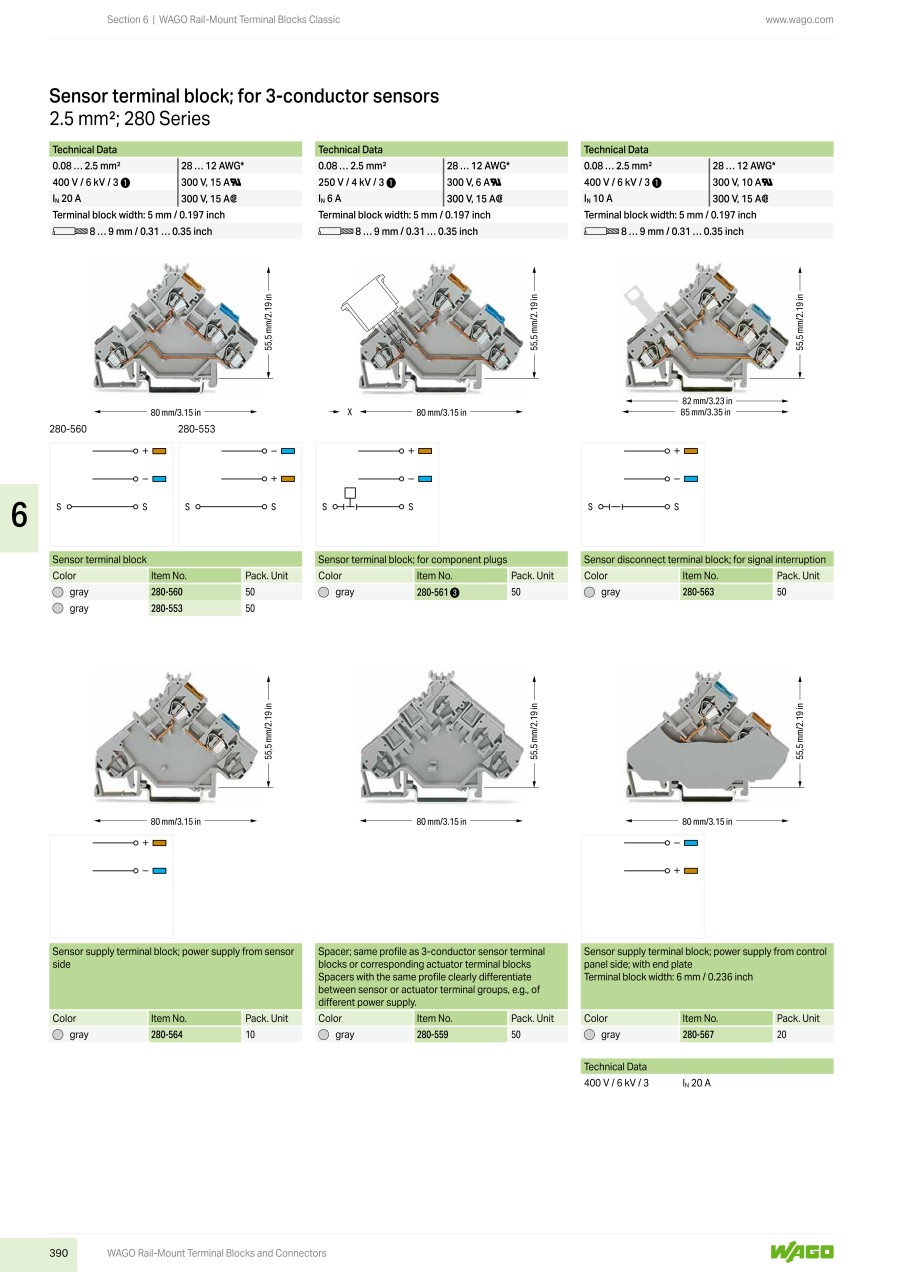

3-conductor sensor supply terminal block 280

3-conductor sensor supply terminal block 280

Click on this image to zoom in.

Click on this image to zoom in.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
280-567
280-574
280-577
Part NumberRelated toStandard Unit PriceVolume DiscountShipping Days?Number of pins
(Pole)
Content
(pc(s))
Product size (height)
(mm)
Product size (width)
(mm)
Clamp width
(mm)
No. of rows Pins per row Connector features

65.86 €

Available 3 Days 22055.506621-

66.16 €

Available 3 Days 41063.50553-+ PG connector

113.67 €

Available 3 Days 42063.50663-+ PG connector

Loading...

  1. 1

Basic information

Stripping length (max.)(mm) 9 Min. stripping length(mm) 8 Nominal current(A) 20
Nominal voltage(V) 400 Min. cross section (flexible)(mm²) 0.08 Max. cross section (flexible)(mm²) 2.50
Min. cross section (inflexible)(mm²) 0.08 Max. cross section (inflexible)(mm²) 2.5 AWG (min.) 28
AWG max. 14 Contamination level 3 Colour Grey
Connector type (category) Proximity switch terminal Configuration L Connection (components) Pull spring
Industrial goods Yes
