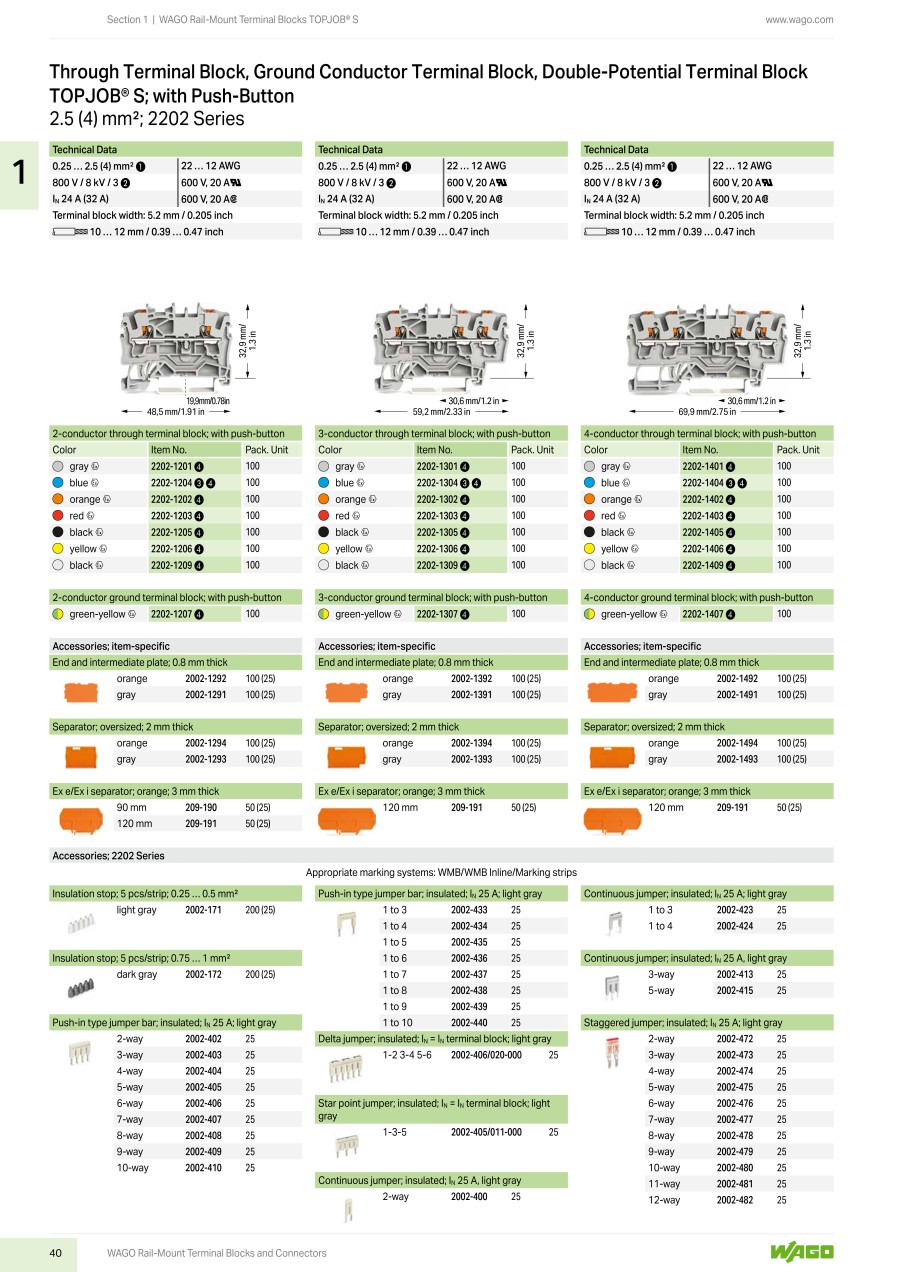

3-conductor through terminal block, with push-button 2202

3-conductor through terminal block, with push-button 2202

Click on this image to zoom in.

Click on this image to zoom in.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
2202-1301
2202-1304
Part NumberRelated toStandard Unit PriceVolume DiscountShipping Days?Colour

93.43 €

Available 3 Days Grey

103.13 €

Available 3 Days Blue

Loading...

  1. 1

Basic information

Number of pins(Pole) 3 Content(pc(s)) 100 Product size (height)(mm) 32.90
Product size (length)(mm) 59.20 Product size (width)(mm) 5.2 Clamp width(mm) 5.20
Stripping length (max.)(mm) 12 Min. stripping length(mm) 10 Nominal current(A) 24
Nominal voltage(V) 800 Min. cross section (flexible)(mm²) 0.25 Max. cross section (flexible)(mm²) 2.50
Min. cross section (inflexible)(mm²) 0.25 Max. cross section (inflexible)(mm²) 4 AWG (min.) 22
AWG max. 12 No. of rows 1 Pins per row 3
Connector colour Orange Connector type (category) Continuity Connection (components) Push-in connector
Connector features + latchkey Industrial goods Yes
