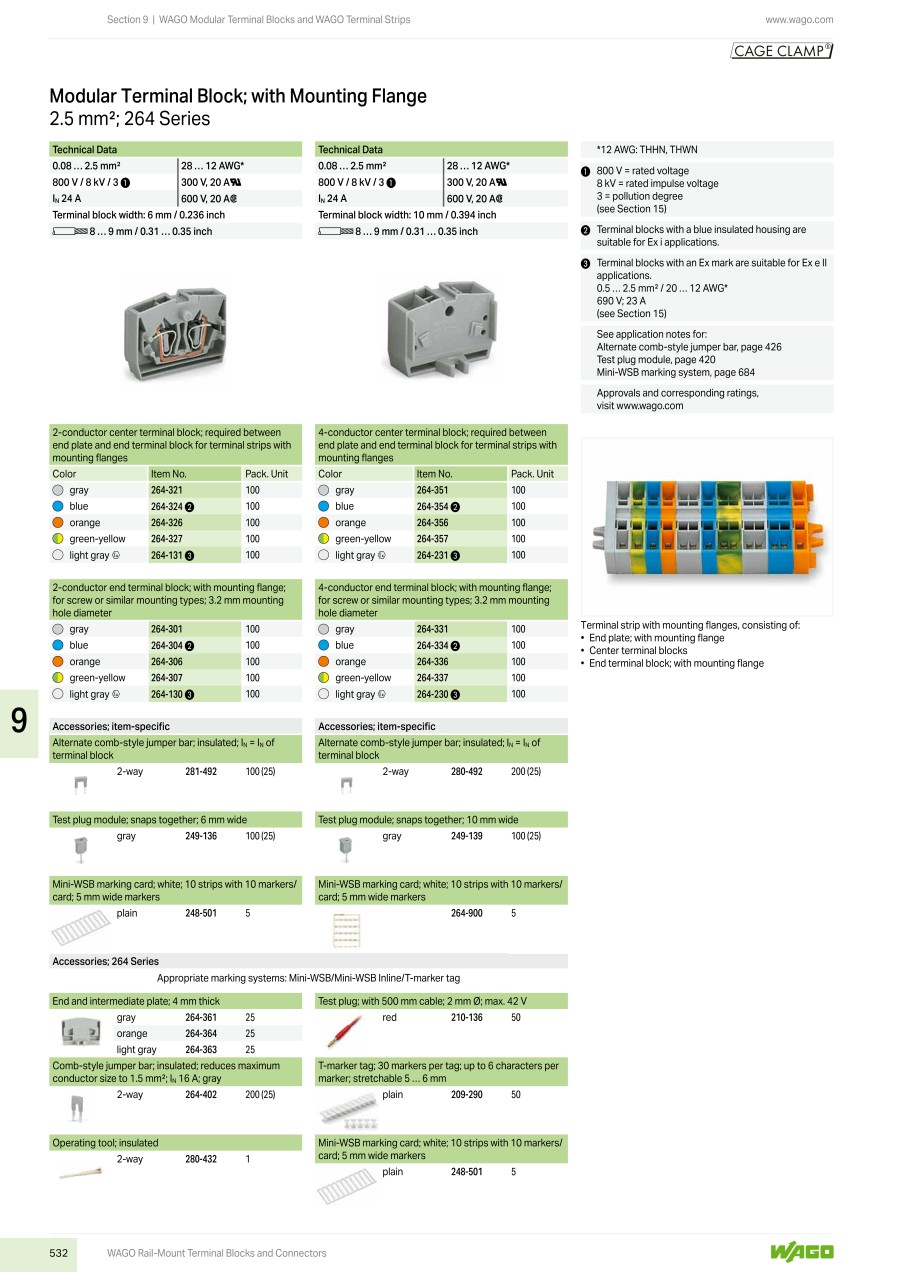

4-conductor center terminal block 264
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Loading...
Basic information
| Number of pins(Pole) | 1 | Product size (width)(mm) | 10 | Clamp width(mm) | 10 |
|---|---|---|---|---|---|
| Stripping length (max.)(mm) | 9 | Min. stripping length(mm) | 8 | Nominal current(A) | 24 |
| Nominal voltage(V) | 800 | Nominal voltage (details)(V) | 800 | Min. cross section (flexible)(mm²) | 0.08 |
| Max. cross section (flexible)(mm²) | 2.50 | Min. cross section (inflexible)(mm²) | 0.08 | Max. cross section (inflexible)(mm²) | 2.5 |
| AWG (min.) | 28 | AWG max. | 14 | No. of rows | 1 |
| Pins per row | 4 | Connector type (category) | Terminal | Connection (components) | Pull spring |
| Connection | CAGE CLAMP® |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
