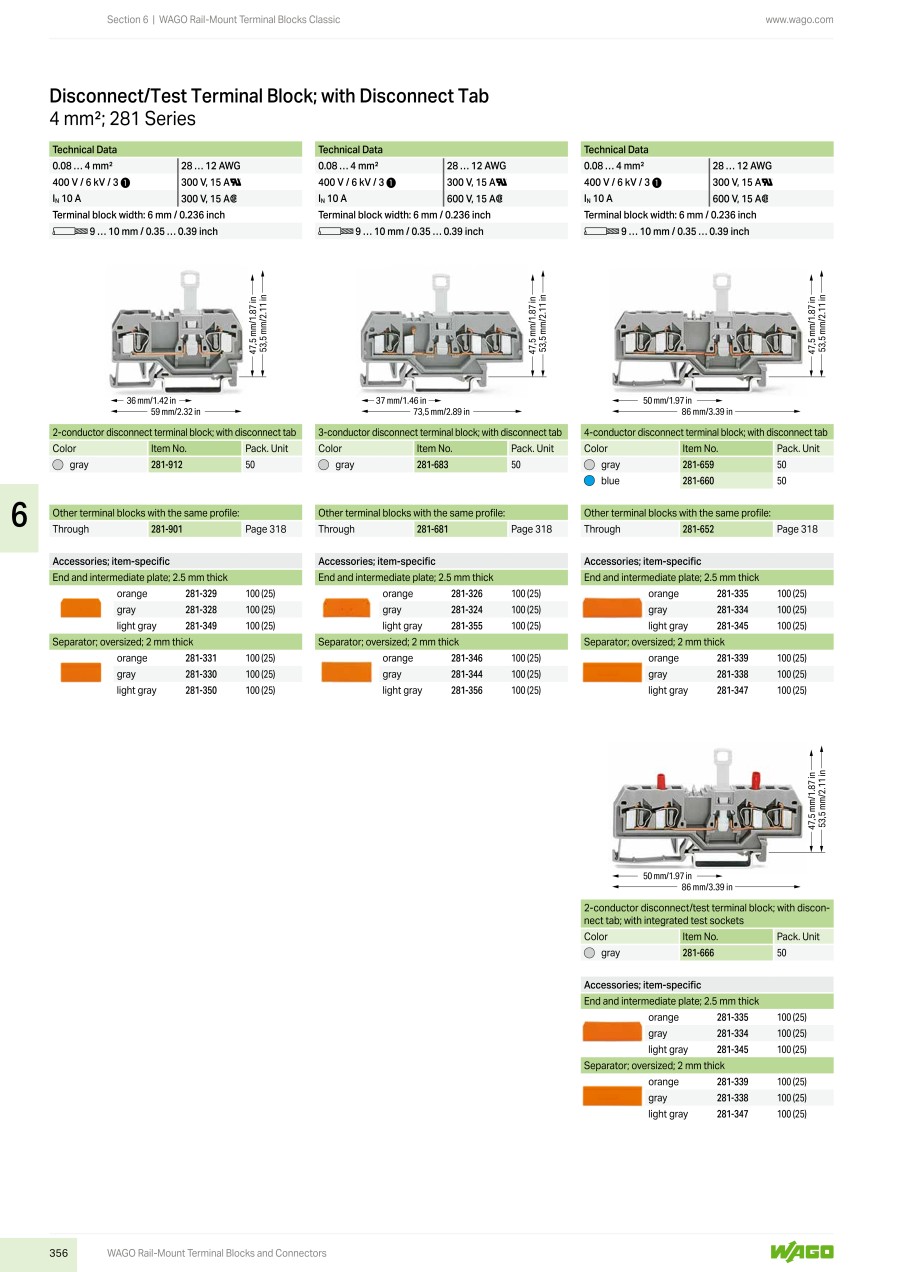

2-conductor disconnect / test terminal block 281【50 Pieces Per Package】
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
281-666
Basic information
| Number of pins(Pole) | 1 | Product size (height)(mm) | 53.50 | Product size (width)(mm) | 6 |
|---|---|---|---|---|---|
| Clamp width(mm) | 6 | Stripping length (max.)(mm) | 10 | Min. stripping length(mm) | 9 |
| Nominal current(A) | 10 | Nominal voltage(V) | 400 | Min. cross section (flexible)(mm²) | 0.08 |
| Max. cross section (flexible)(mm²) | 4 | Min. cross section (inflexible)(mm²) | 0.08 | Max. cross section (inflexible)(mm²) | 4 |
| AWG (min.) | 28 | AWG max. | 12 | No. of rows | 1 |
| Pins per row | 2 | Contamination level | 3 | Colour | Grey |
| Connector type (category) | N terminal | Configuration | L | Connection (components) | Pull spring |
| Connector features | + test option | Industrial goods | Yes |
This page is 2-conductor disconnect / test terminal block 281, part number 281-666.
You can find the detail information about specifications and dimensions on part number 281-666.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
