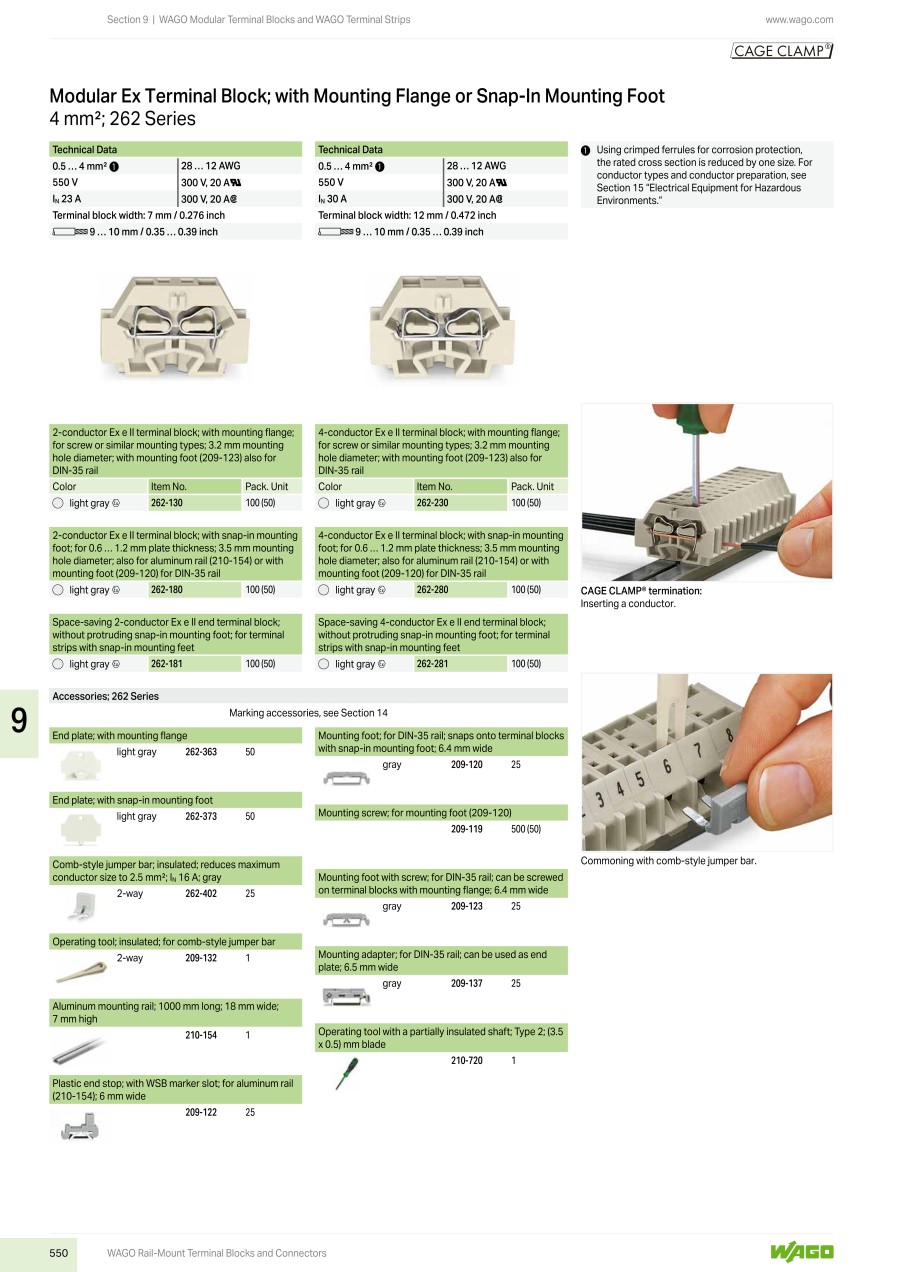

2-conductor Ex e II terminal block 262【100 Pieces Per Package】
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Basic information
| Number of pins(Pole) | 1 | Product size (height)(mm) | 23 | Product size (width)(mm) | 7 |
|---|---|---|---|---|---|
| Clamp width(mm) | 7 | Stripping length (max.)(mm) | 10 | Min. stripping length(mm) | 9 |
| Nominal current(A) | 23 | Nominal voltage(V) | 550 | Min. cross section (flexible)(mm²) | 0.50 |
| Max. cross section (flexible)(mm²) | 4 | Min. cross section (inflexible)(mm²) | 0.5 | Max. cross section (inflexible)(mm²) | 4 |
| AWG (min.) | 20 | AWG max. | 12 | No. of rows | 1 |
| Pins per row | 2 | Colour | Grey | Connector type (category) | Terminal |
| Configuration | L | Connection (components) | Pull spring | Connector features | Complies with ATEX Ex-e II standards |
| Industrial goods | Yes |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
