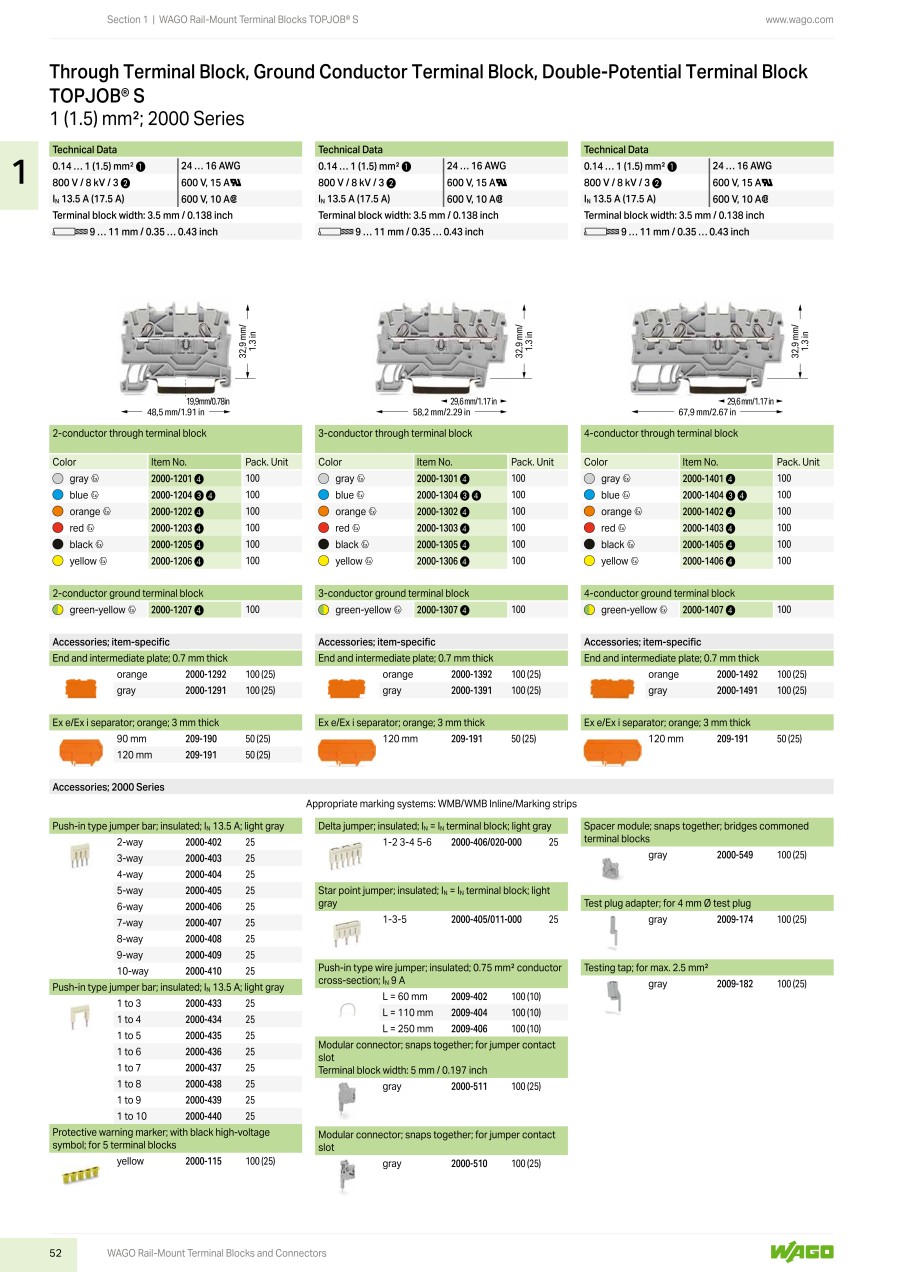

2-conductor through terminal 2000【100 Pieces Per Package】
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Basic information
| Number of pins(Pole) | 1 | Product size (height)(mm) | 32.90 | Product size (length)(mm) | 3.50 |
|---|---|---|---|---|---|
| Product size (width)(mm) | 3.5 | Clamp width(mm) | 3.50 | Stripping length (max.)(mm) | 9 |
| Nominal current(A) | 13.5 | Nominal voltage(V) | 800 | Min. cross section (flexible)(mm²) | 0.14 |
| Max. cross section (flexible)(mm²) | 1.5 | Min. cross section (inflexible)(mm²) | 0.14 | Max. cross section (inflexible)(mm²) | 1 |
| AWG (min.) | 24 | AWG max. | 16 | No. of rows | 1 |
| Pins per row | 2 | Contamination level | 3 | Connector type (category) | Continuity |
| Connection (components) | Pull spring | Connector features | Complies with ATEX Ex-e II standards | Industrial goods | Yes |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
