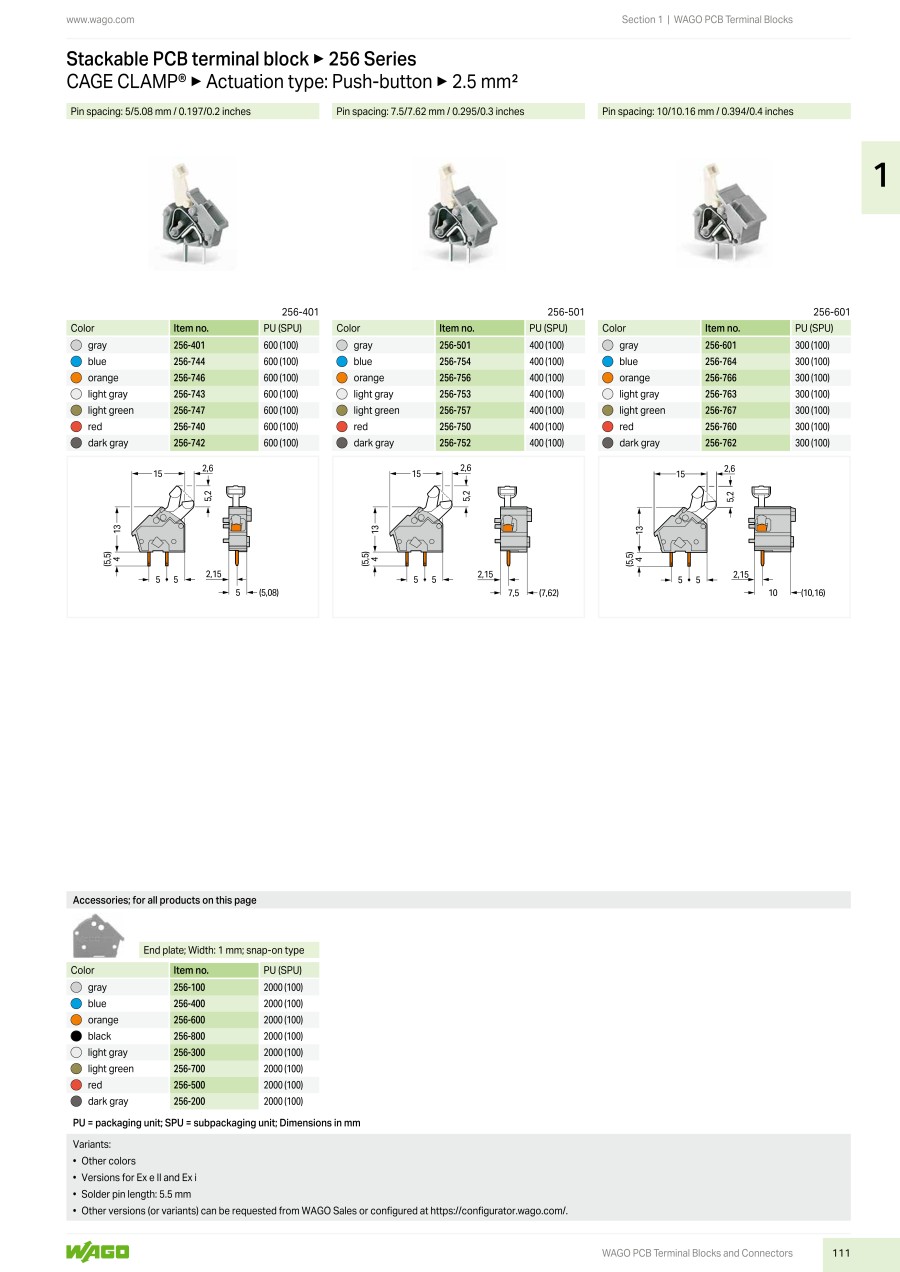

Spring-loaded terminal 2.50 mm², 256【1-400 Pieces Per Package】
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 256-401 |
| 256-402/334-000 |
| 256-403/334-000 |
| 256-404/334-000 |
| 256-405/334-000 |
| 256-407/334-000 |
| 256-408/334-000 |
| 256-409/334-000 |
| 256-425/334-000 |
| 256-435/334-000 |
| Part Number | Related to |
Standard Unit Price
| Number of pc(s). included in pkg. | Minimum order quantity | Volume Discount | Number of pins (Pole) | Cross section (mm²) | Min. stripping length (mm) | Pins per row | Nominal current (details) (A) | Nominal current (A) | Nominal voltage (details) (V) | Product size (height) (mm) | Product size (length) (mm) | Product size (width) (mm) | Weight (g) | Actuation direction | Insulation material | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.41 € | 1 | Available | 3 Days | 1 | 2.5 | 6 | 1 | 16 | 24 | 250 | 17.60 | 7.8 | 22.20 | - | At an angle (to the PCB) | Polyamide | |||
346.21 € | 400 Pieces Per Package | 1 pack | 31 Days | 2 | - | 5 | 2 | - | - | - | 17.20 | 12.90 | 20.10 | 2.13 | - | Polyamide 6.6 | |||
346.21 € | 280 Pieces Per Package | 1 pack | 7 Days | 3 | - | 5 | 3 | - | - | - | 17.90 | 17.20 | 20.10 | 3.109 | - | - | |||
319.33 € | 200 Pieces Per Package | 1 pack | 8 Days | 4 | - | 5 | 4 | - | - | - | 20.10 | 17.20 | 22.90 | 4.088 | - | Polyamide 6.6 | |||
319.33 € | 160 Pieces Per Package | 1 pack | 31 Days | 5 | - | 5 | 5 | - | - | - | 20.10 | 17.20 | 27.90 | 5.067 | - | Polyamide 6.6 | |||
319.33 € | 120 Pieces Per Package | 1 pack | 7 Days | 7 | - | 5 | 7 | - | - | - | 20.10 | 17.20 | 37.90 | 7.025 | - | Polyamide 6.6 | |||
296.92 € | 100 Pieces Per Package | 1 pack | 30 Days | 8 | - | 5 | 8 | - | - | - | 20.10 | 17.20 | 42.90 | 8.004 | - | Polyamide 6.6 | |||
330.53 € | 100 Pieces Per Package | 1 pack | 31 Days | 9 | - | 5 | 9 | - | - | - | 20.10 | 17.20 | 47.9 | 8.983 | - | Polyamide 6.6 | |||
184.87 € | 20 Pieces Per Package | 1 pack | 8 Days | 25 | - | 5 | 25 | - | - | - | 20.10 | 17.20 | 127.90 | 24.647 | - | - | |||
252.09 € | 20 Pieces Per Package | 1 pack | 30 Days | 35 | - | 5 | 35 | - | - | - | 20.10 | 17.20 | 177.90 | 34.437 | - | Polyamide 6.6 |
Loading...
Basic information
| Color | Grey | AWG max. | 12 | AWG (min.) | 28 |
|---|---|---|---|---|---|
| Contact spacing(mm) | 5.08 | Max. cross section (inflexible)(mm²) | 2.50 | Min. cross section (inflexible)(mm²) | 0.08 |
| Max. cross section (flexible)(mm²) | 2.50 | Min. cross section (flexible)(mm²) | 0.08 | Stripping length (max.)(mm) | 6 |
| No. of rows | 1 | Nominal voltage(V) | 320 | Series (connectors) | 256 |
| Connection (components) | PCB terminal features | + CAGE CLAMP® | PCB terminal type (category) | Spring-loaded terminal | |
| Connector orientation | At an angle (to the PCB) | Contact material | Cathode copper | Contact surface | Tin plated |
| Industrial goods | Yes | Wire protection | Yes |
Configure
Basic Attributes
-
Number of pins(Pole)
-
Cross section(mm²)
-
Min. stripping length(mm)
-
Pins per row
-
Nominal current (details)(A)
- 16
-
Nominal current(A)
-
Nominal voltage (details)(V)
- 250
-
Product size (height)(mm)
-
Product size (length)(mm)
-
Product size (width)(mm)
-
Weight(g)
-
Actuation direction
- At an angle (to the PCB)
-
Insulation material
- Polyamide 6.6
- Polyamide
Filter by standard shipping days
-
- All
- 3 Days or Less
- 7 Days or Less
- 8 Days or Less
- 30 Days or Less
- 31 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
