Stackable PCB terminal block 256【300-600 Pieces Per Package】

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number

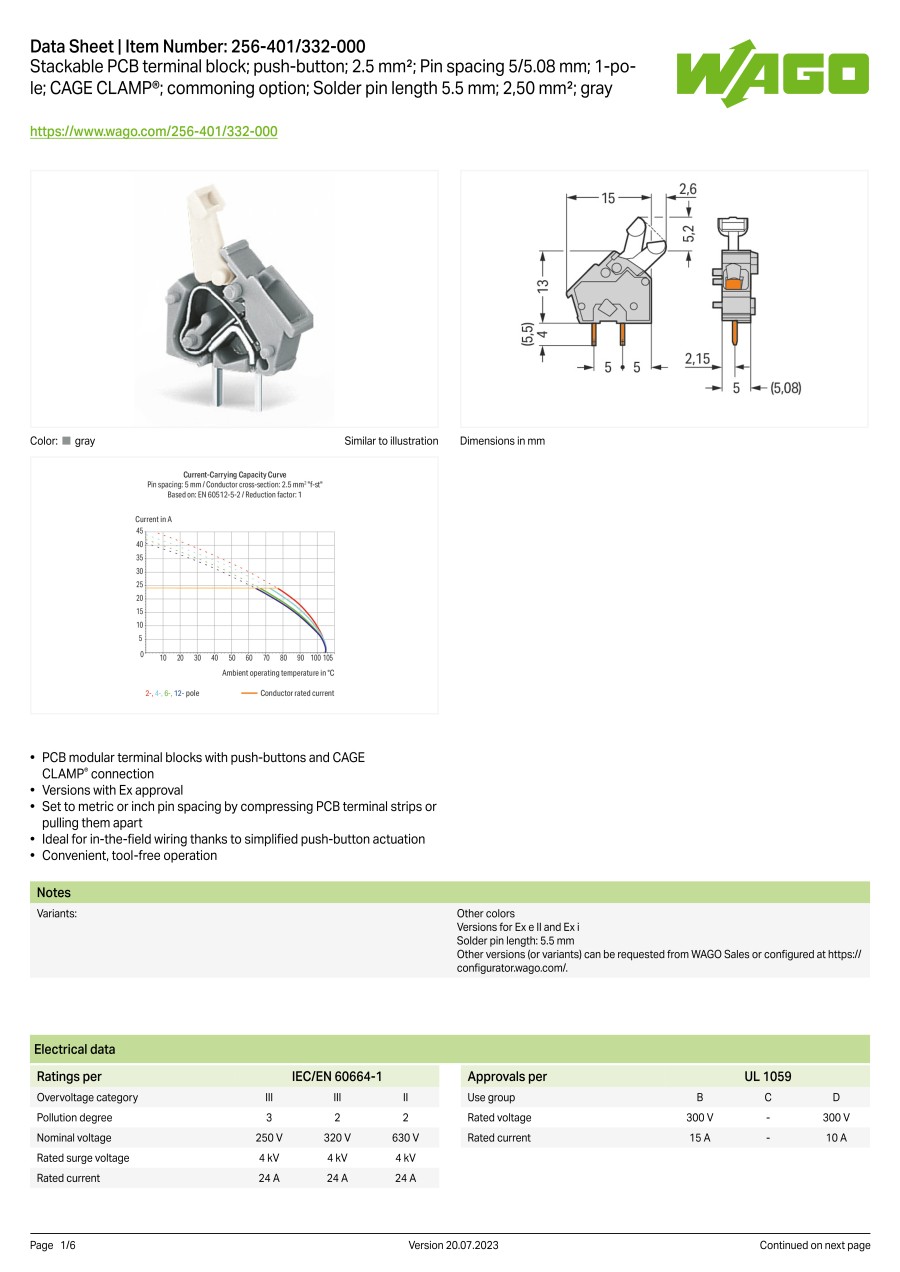

256-401/332-000
256-743/999-950
256-744/332-000
256-763/332-000/999-950
256-767/332-000
Part NumberRelated to
Standard Unit Price
Number of pc(s). included in pkg.Minimum order quantityVolume Discount
Standard
Shipping Days
?
Color Contact spacing
(mm)
Stripping length (max.)
(mm)
Nominal voltage
(V)
Product size (length)
(mm)
Product size (width)
(mm)

235.28 €

600 Pieces Per Package

1 pack 31 Days Grey5.08123207.823.70

379.83 €

600 Pieces Per Package

1 pack 30 Days Light grey5.0861767.822.20

235.28 €

600 Pieces Per Package

1 pack 30 Days Blue5.0863207.823.70

212.88 €

300 Pieces Per Package

1 pack 30 Days Light grey10.16627512.8023.70

136.17 €

300 Pieces Per Package

1 pack 31 Days Light green10.16663012.8023.70

Loading...

  1. 1

Basic information

Number of pins(Pole) 1 AWG max. 12 AWG (min.) 28
Max. cross section (inflexible)(mm²) 2.50 Min. cross section (inflexible)(mm²) 0.08 Max. cross section (flexible)(mm²) 2.50
Min. cross section (flexible)(mm²) 0.08 Min. stripping length(mm) 6 No. of rows 1
Pins per row 1 Product size (height)(mm) 17.60 Series (connectors) 256
Connection (components) Print PCB terminal features + CAGE CLAMP® PCB terminal type (category) Spring-loaded terminal
Connector orientation At an angle (to the PCB) Contact material Cathode copper Contact surface Tin plated
Industrial goods Yes Wire protection Yes
