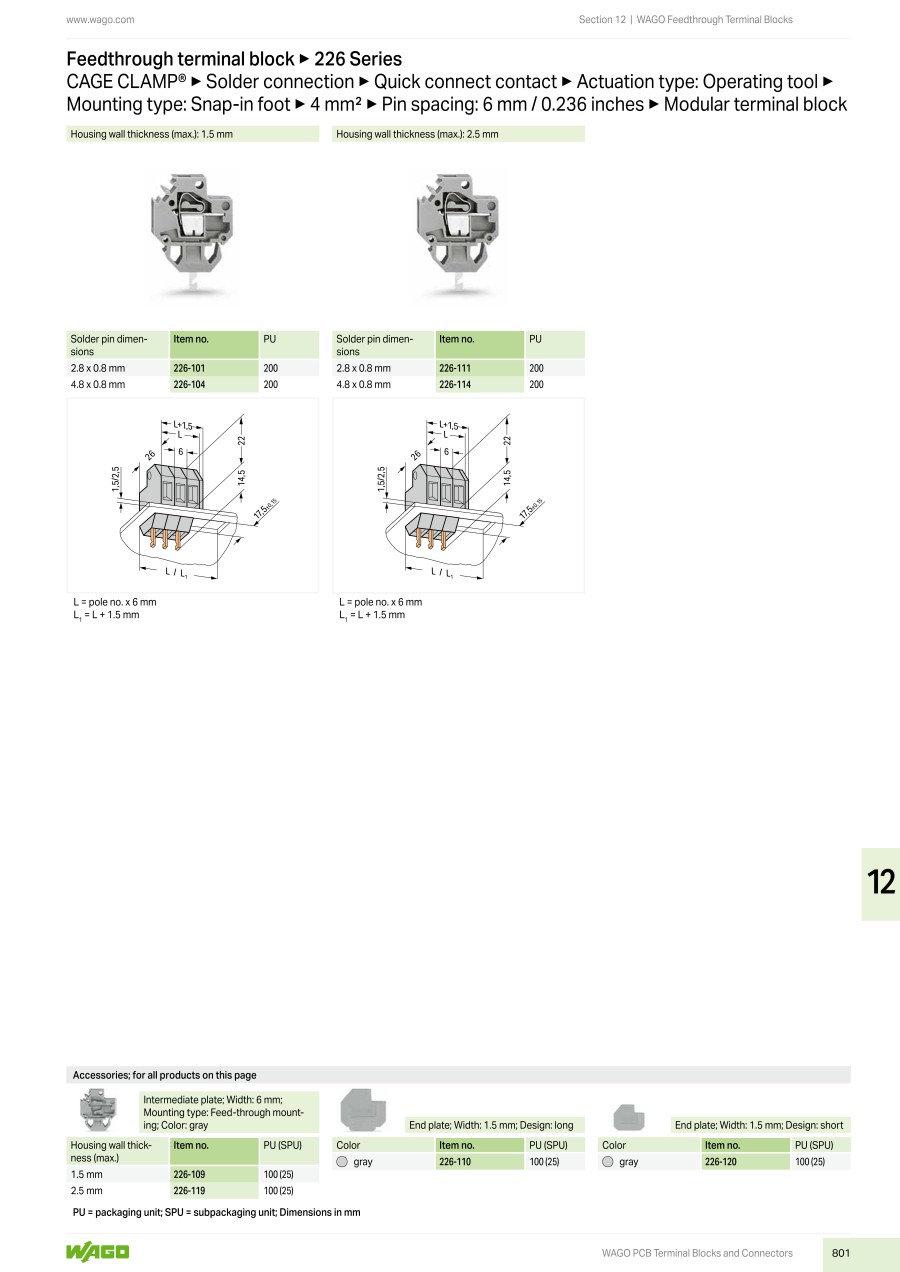

Feedthrough terminal block 226【150-200 Pieces Per Package】
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 226-101 |
| 226-102 |
| 226-103 |
| 226-104 |
| 226-107 |
| 226-111 |
| 226-113 |
| 226-114 |
| Part Number | Related to |
Standard Unit Price
| Number of pc(s). included in pkg. | Minimum order quantity | Volume Discount | Color | Min. stripping length (mm) | Nominal voltage (V) | |
|---|---|---|---|---|---|---|---|---|---|
595.76 € | 200 Pieces Per Package | 1 pack | Available | 6 Days | Grey | 6 | 320 | ||
556.40 € | 150 Pieces Per Package | 1 pack | Available | 6 Days | Grey | 6 | 320 | ||
556.40 € | 150 Pieces Per Package | 1 pack | Available | 21 Days | Grey | 10 | 320 | ||
672.28 € | 200 Pieces Per Package | 1 pack | Available | 6 Days | Grey | 10 | 320 | ||
1,459.33 € | 200 Pieces Per Package | 1 pack | Available | 21 Days | Green-yellow | 10 | 630 | ||
595.76 € | 200 Pieces Per Package | 1 pack | Available | 6 Days | Grey | 6 | 320 | ||
556.40 € | 150 Pieces Per Package | 1 pack | Available | 21 Days | - | - | - | ||
672.28 € | 200 Pieces Per Package | 1 pack | Available | 6 Days | Grey | 6 | 320 |
Loading...
Basic information
| Number of pins(Pole) | 1 | AWG max. | 12 | AWG (min.) | 28 |
|---|---|---|---|---|---|
| Contact spacing(mm) | 6 | Max. cross section (inflexible)(mm²) | 4.00 | Min. cross section (inflexible)(mm²) | 0.08 |
| Max. cross section (flexible)(mm²) | 4.00 | Min. cross section (flexible)(mm²) | 0.08 | Stripping length (max.)(mm) | 10 |
| No. of rows | 1 | Pins per row | 1 | Nominal current(A) | 20 |
| Product size (height)(mm) | 26 | Product size (length)(mm) | 6.00 | Product size (width)(mm) | 38.50 |
| Series (connectors) | 226 | Connection (components) | Spring-loaded terminal | PCB terminal features | + CAGE CLAMP® |
| PCB terminal type (category) | Spring-loaded terminal | Actuation direction | Parallel (to the PCB) | Connector orientation | Parallel (to the PCB) |
| Contact material | Cathode copper | Contact surface | Tin plated | Insulation material | Polyamide |
| Industrial goods | Yes | Wire protection | Yes |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
