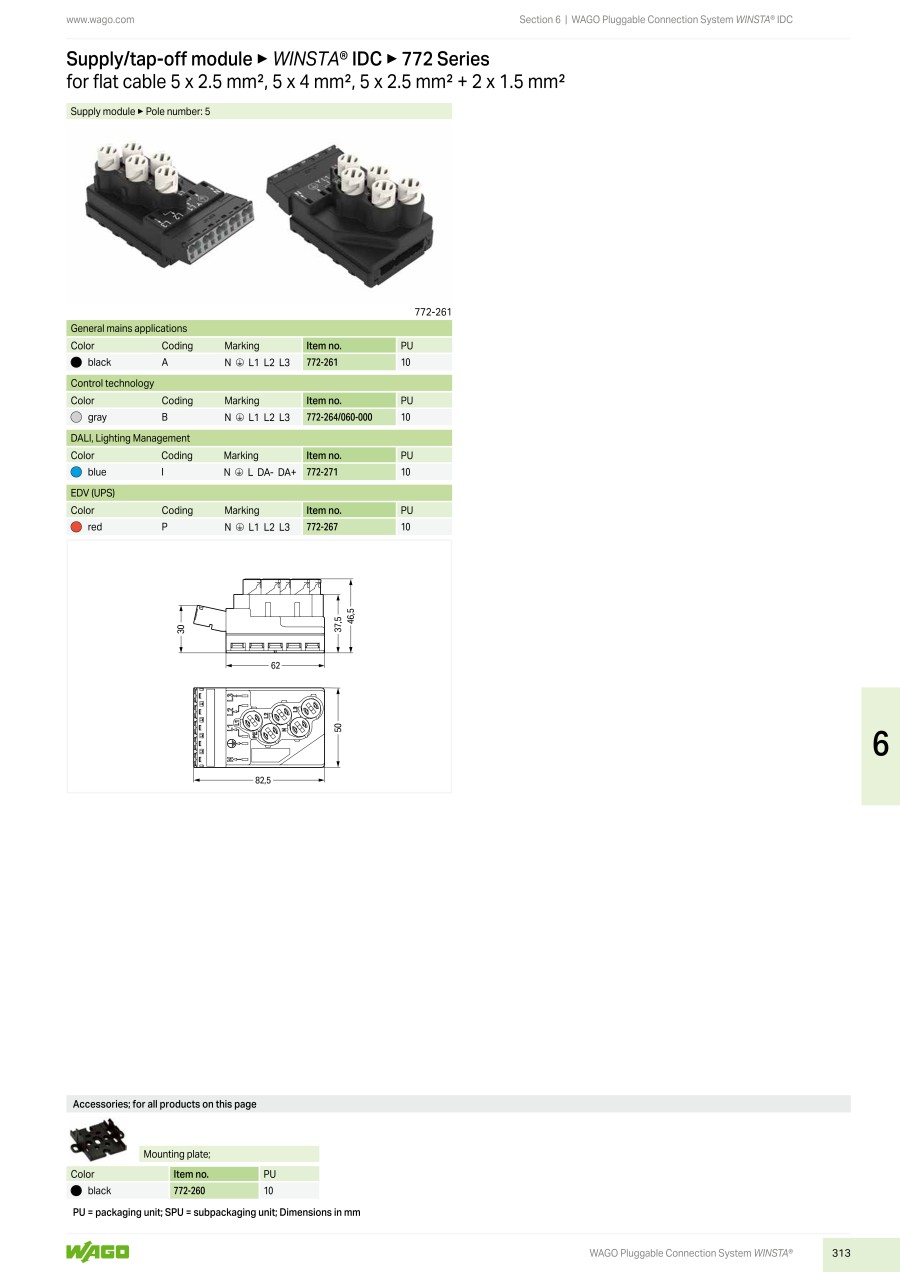

Supply module, with strain relief housing 772【10 Pieces Per Package】
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 772-261 |
| 772-264/060-000 |
| 772-267 |
| Part Number | Related to |
Standard Unit Price
| Number of pc(s). included in pkg. | Minimum order quantity | Volume Discount | Color | |
|---|---|---|---|---|---|---|---|
218.48 € | 10 Pieces Per Package | 1 pack | 6 Days | Black | |||
252.09 € | 10 Pieces Per Package | 1 pack | 34 Days | Grey | |||
252.09 € | 10 Pieces Per Package | 1 pack | 6 Days | Red |
Loading...
Basic information
| AWG (min.) | 22 | AWG max. | 14 | Cross section (per pin/core)(mm²) | 2.5 |
|---|---|---|---|---|---|
| No. of leads | 5 | Nominal current(A) | 25 | Nominal voltage(V) | 400 |
| Product size (depth)(mm) | 82.5 | Product size (height)(mm) | 46.5 | Product size (width)(mm) | 50 |
| Total number of pins | 5 | Connector type | Adapter, straight | Connector type (category) | Feeder module |
| Connector/ Input type A | Hook-up wire | Connector / Output type B | Ribbon cable | Contact material | Copper alloy |
| Industrial goods | Yes |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
