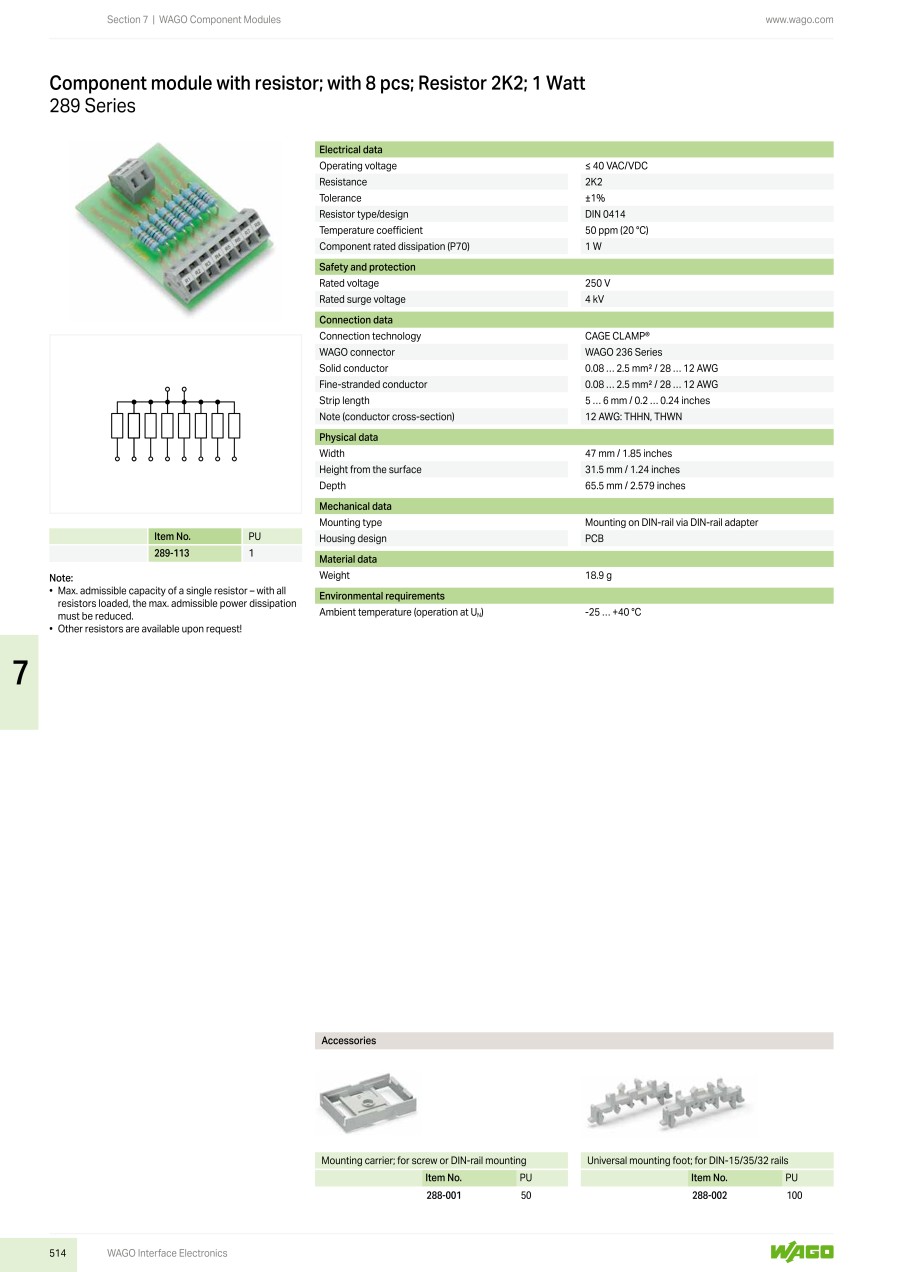

Resistor gate with 8 resistors
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
289-113
Basic information
| Cross section (max.)(mm²) | 2.5 | Min. cross section(mm²) | 0.08 | Max. temperature(°C) | +40 |
|---|---|---|---|---|---|
| Min. temperature(°C) | -25 | Operating voltage | 40 V/AC/DC | Product size (depth)(mm) | 65.5 |
| Product size (height)(mm) | 31.5 | Product size (width)(mm) | 47 | Compatible with series | CAGE CLAMP® Serie 236 |
| Connection (components) | Pull spring | Transfer module type (category) | Gate resistor module |
This page is Resistor gate with 8 resistors, part number 289-113.
You can find the detail information about specifications and dimensions on part number 289-113.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
