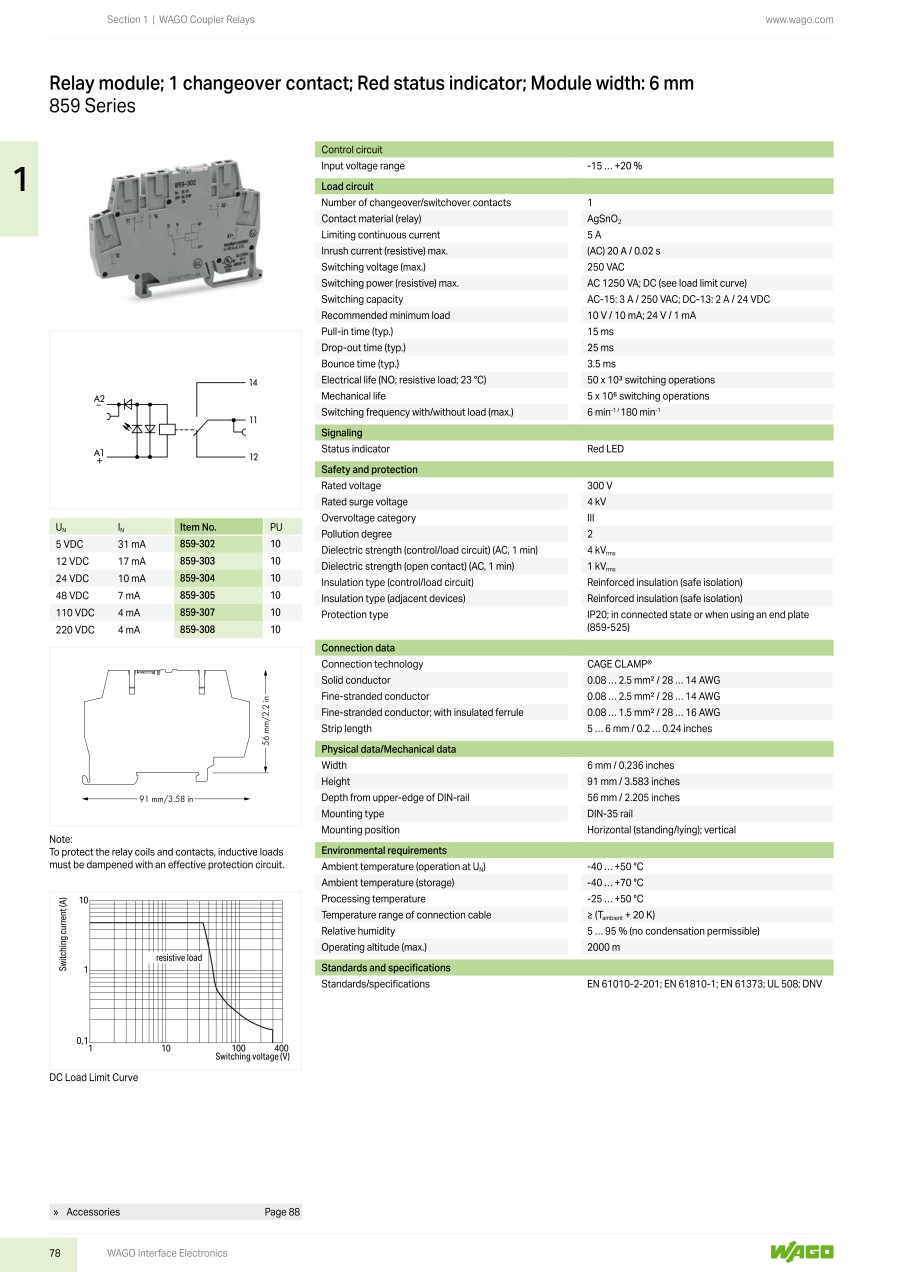

Switching relay terminal series 859【1-25 Pieces Per Package】
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 859-302 |
| 859-303 |
| 859-304 |
| 859-305 |
| 859-306 |
| 859-307 |
| 859-308 |
| 859-314 |
| 859-317 |
| 859-353 |
| 859-354 |
| 859-357 |
| 859-358 |
| 859-359 |
| 859-360 |
| 859-368 |
| 859-386 |
| 859-390 |
| 859-392 |
| 859-393 |
| 859-398 |
| 859-399 |
| Part Number | Related to |
Standard Unit Price
| Number of pc(s). included in pkg. | Minimum order quantity | Volume Discount | Nominal voltage (Vdc) | Switching voltage (max.) (Vdc) | Switching current (max.) (A) | Switching capacity (max.) (VA) | Weight (g) | Industrial goods | Contact type | Durability | Contact material | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
37.51 € | 1 | Available | 3 Days | 5 | 250 | 5 | 1250 | 22.5 | - | 1 change-over | 5 x 106 switching operations | AgNi | |||
40.72 € | 1 | Available | 3 Days | 12 | 250 | 5 | 1250 | 19.28 | - | 1 change-over | 5 x 106 switching operations | AgNi | |||
687.59 € | 25 Pieces Per Package | 1 pack | Available | 8 Days | 24 | 250 | 5 | 1250 | 22.277 | Yes | 1 change-over | 5 x 106 switching operations | AgNi | ||
35.36 € | 1 | Available | 8 Days | 48 | 250 | 5 | 1250 | 21.844 | - | 1 change-over | 5 x 106 switching operations | AgNi | |||
35.36 € | 1 | Available | 8 Days | 60 | 250 | 5 | 1250 | 19.28 | - | 1 change-over | 5 x 106 switching operations | AgNi | |||
44.44 € | 1 | Available | 8 Days | 110 | 250 | 5 | 1250 | 19.28 | - | 1 change-over | 5 x 106 switching operations | AgNi | |||
46.60 € | 1 | Available | 8 Days | 230 | 250 | 5 | 1250 | 22.684 | - | 1 change-over | 5 x 106 switching operations | AgNi | |||
32.15 € | 1 | Available | 3 Days | 24 | 36 | 50 | - | 22.8 | - | 1 change-over | 5 x 106 switching operations | - | |||
46.60 € | 1 | Available | 8 Days | 110 | 36 | 50 | - | 23 | - | 1 change-over | 5 x 106 switching operations | - | |||
36.43 € | 1 | Available | 8 Days | 12 | 250 | 5 | 1250 | 23.3 | - | 1 change-over | 5 x 106 switching operations | AgNi | |||
46.60 € | 1 | Available | 11 Days | 24 | 250 | 5 | 1250 | 22.9 | - | 1 change-over | 5 x 106 switching operations | AgNi | |||
47.68 € | 1 | Available | 8 Days | 115 | 250 | 5 | 1250 | 23.4 | - | 1 change-over | 5 x 106 switching operations | AgNi | |||
44.44 € | 1 | Available | 3 Days | 230 | 250 | 5 | 1250 | 23.6 | - | 1 change-over | 5 x 106 switching operations | AgNi | |||
43.35 € | 1 | Available | 25 Days | 230 | 36 | 50 | - | 22.644 | - | 1 change-over | 5 x 106 switching operations | - | |||
47.68 € | 1 | Available | 4 Days | 115 | 36 | 50 | - | 25 | - | 1 change-over | 5 x 106 switching operations | - | |||
37.51 € | 1 | Available | 3 Days | 230 | 250 | 5 | 1250 | 21.6 | - | 1 change-over | 5 x 106 switching operations | AgNi | |||
1,201.37 € | 25 Pieces Per Package | 1 pack | Available | 8 Days | 36 | 250 | 3 | 750 | 23.1 | Yes | 1 change-over | 5 x 106 switching operations | AgNi+Au | ||
698.52 € | 25 Pieces Per Package | 1 pack | Available | 8 Days | 24 | 250 | 3 | 750 | 22.4 | Yes | 1 change-over | 5 x 106 switching operations | AgNi | ||
42.27 € | 1 | Available | 3 Days | 24 | 36 | 3 | 750 | 22.7 | - | 1 change-over | 5 x 106 switching operations | - | |||
1,234.15 € | 25 Pieces Per Package | 1 pack | Available | 8 Days | 72 | 250 | 5 | 1250 | 25 | Yes | 1 change-over | 3 x 10 5 cycles | AgNi | ||
48.77 € | 1 | Available | 8 Days | 24 | 250 | - | 750 | 22.544 | - | - | 5 x 106 switching operations | AgNi | |||
1,175.12 € | 25 Pieces Per Package | 1 pack | Available | 8 Days | 110 | 250 | 3 | 750 | 22.5 | Yes | 1 change-over | 5 x 106 switching operations | AgNi |
Loading...
Basic information
| Product size (height)(mm) | 56 | Product size (width)(mm) | 6 | Product size (depth)(mm) | 91 |
|---|---|---|---|---|---|
| Fall time(ms) | 6 | Response time(ms) | 5 | Connection (components) | Pull spring |
| Colour | Grey |
Configure
Basic Attributes
-
Nominal voltage(Vdc)
-
Switching voltage (max.)(Vdc)
- 36
- 250
-
Switching current (max.)(A)
- 3
- 5
- 50
-
Switching capacity (max.)(VA)
- 750
- 1250
-
Weight(g)
-
Industrial goods
- Yes
-
Contact type
- 1 change-over
-
Durability
- 3 x 10 5 cycles
- 5 x 106 switching operations
-
Contact material
- AgNi
- AgNi+Au
Filter by standard shipping days
-
- All
- 3 Days or Less
- 4 Days or Less
- 8 Days or Less
- 11 Days or Less
- 25 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
