Configure

Connection direction
Other
build-in
AWG (min.)
- 28
AWG max.
- 16
Contact spacing(mm)
- 3.81
- 63.92
Cross section (max.)(mm²)
- 1.5
Min. cross section(mm²)
- 0.14
Pins per row
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 14
- 15
- 16
Product size (height)(mm)
- 22.01
- 25.82
- 29.40
Product size (length)(mm)
- 16.20
No. of rows
- 1
Product size (width)(mm)
- 29.40
- 29.63
- 33.44
- 37.25
- 41.06
- 44.87
- 48.68
- 52.49
- 56.30
- 60.11
- 63.92
- 67.73
- 71.54
- 75.35
Total number of pins
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
Connector features
- + screw lock
Actuation direction
- Perpendicular (to the PCB)
Connection (components)
- Solder tag
- Soldering
Connector type
- Socket
Contact material
- Tin plated
Contact surface
- Tin plated
Insulation material
- Thermoplastic
Pin strip type (category)
- Socket enclosure - PCB
- Socket enclosure - cable
Industrial goods
- Yes
Est. shipping days
- All
- Within 7 working days
- Within 25 working days

Base strip DFK-MC

Click image to view enlarged image

Catalog

Part number:

Still undefined. 15 possible part numbers found.

Part number list
Catalog

Part number list

Number of items

Part number

1827596
1829345
1829358
1829361
1829374
1829387
1829390
1829400
1829413
1829426
1829439
1829442
1829455
1829468
1829471

Connection direction

AWG (min.)

AWG max.

Contact spacing

(mm)

Cross section (max.)

(mm²)

Min. cross section

(mm²)

Pins per row

Product size (height)

(mm)

Product size (length)

(mm)

No. of rows

Product size (width)

(mm)

Total number of pins

Connector features

Actuation direction

Connection (components)

Connector type

Contact material

Contact surface

Insulation material

Pin strip type (category)

Industrial goods

Minimum order quantity

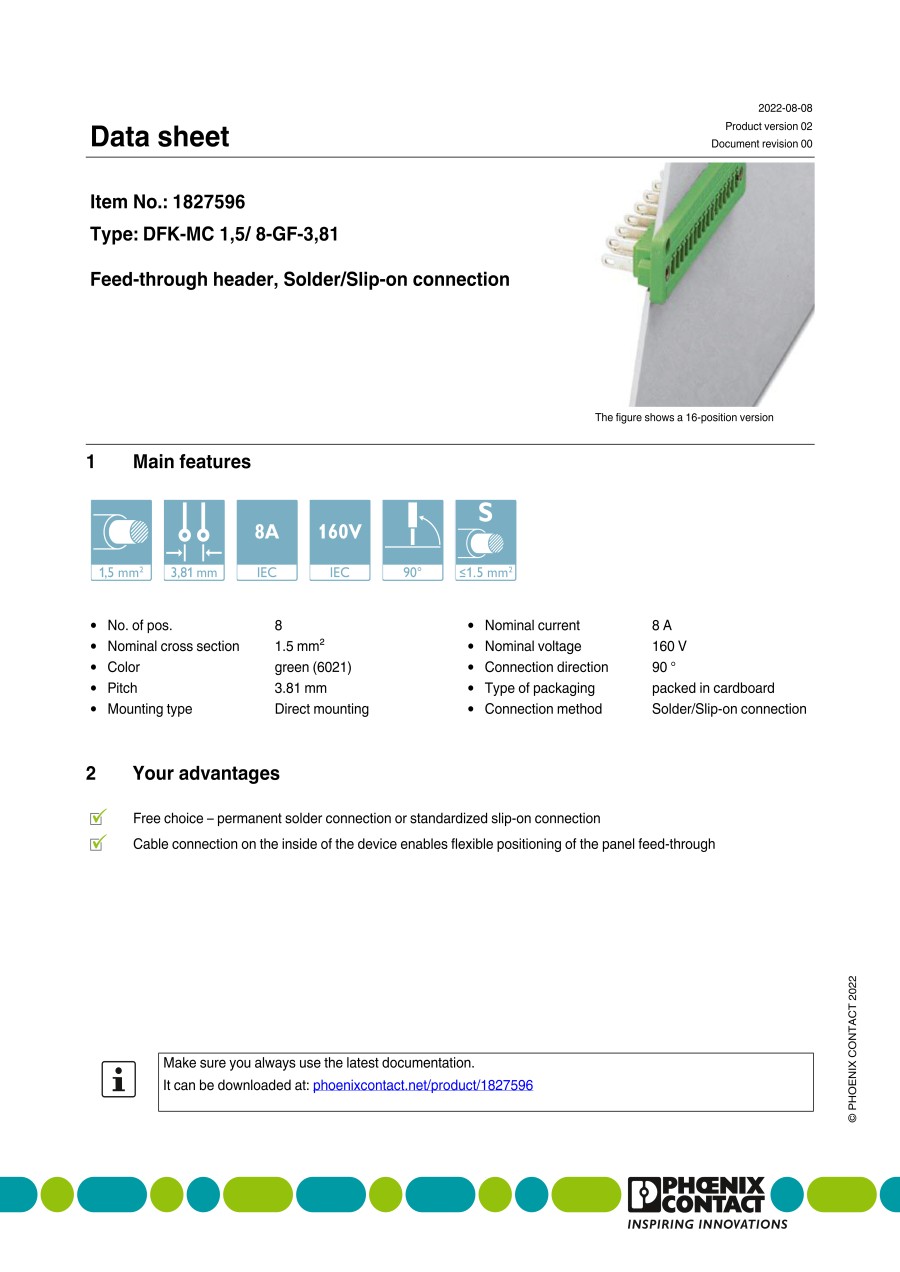

Data sheet	[Other] build-in	28	16	3.81	1.5	0.14	8	29.40	16.20	1	44.87	8	+ screw lock	Perpendicular (to the PCB)	Solder tag	Socket	Tin plated	Tin plated	-	Socket enclosure - cable	Yes	50 pieces
Data sheet	[Other] build-in	28	16	3.81	1.5	0.14	2	22.01	16.20	1	29.40	2	+ screw lock	Perpendicular (to the PCB)	Solder tag	Socket	Tin plated	Tin plated	-	Socket enclosure - cable	Yes	100 pieces
Data sheet	[Other] build-in	28	16	3.81	1.5	0.14	3	25.82	16.20	1	29.40	3	+ screw lock	Perpendicular (to the PCB)	Solder tag	Socket	Tin plated	Tin plated	-	Socket enclosure - cable	Yes	100 pieces
Data sheet	[Other] build-in	28	16	3.81	1.5	0.14	4	29.40	16.20	1	29.63	4	+ screw lock	Perpendicular (to the PCB)	Solder tag	Socket	Tin plated	Tin plated	-	Socket enclosure - cable	Yes	50 pieces
Data sheet	[Other] build-in	28	16	3.81	1.5	0.14	5	29.40	16.20	1	33.44	5	+ screw lock	Perpendicular (to the PCB)	Solder tag	Socket	Tin plated	Tin plated	-	Socket enclosure - cable	Yes	50 pieces
Data sheet	[Other] build-in	28	16	3.81	1.5	0.14	6	29.40	16.20	1	37.25	6	+ screw lock	Perpendicular (to the PCB)	Solder tag	Socket	Tin plated	Tin plated	-	Socket enclosure - cable	Yes	50 pieces
Data sheet	[Other] build-in	28	16	3.81	1.5	0.14	7	29.40	16.20	1	41.06	7	+ screw lock	Perpendicular (to the PCB)	Solder tag	Socket	Tin plated	Tin plated	-	Socket enclosure - cable	Yes	50 pieces
Data sheet	[Other] build-in	28	16	3.81	1.5	0.14	9	29.40	16.20	1	48.68	9	+ screw lock	Perpendicular (to the PCB)	Solder tag	Socket	Tin plated	Tin plated	-	Socket enclosure - cable	Yes	50 pieces
Data sheet	[Other] build-in	28	16	3.81	1.5	0.14	10	29.40	16.20	1	52.49	10	+ screw lock	Perpendicular (to the PCB)	Solder tag	Socket	Tin plated	Tin plated	-	Socket enclosure - cable	Yes	50 pieces
Data sheet	[Other] build-in	28	16	3.81	1.5	0.14	11	29.40	16.20	1	56.30	11	+ screw lock	Perpendicular (to the PCB)	Solder tag	Socket	Tin plated	Tin plated	-	Socket enclosure - cable	Yes	50 pieces
Data sheet	[Other] build-in	28	16	3.81	1.5	0.14	12	29.40	16.20	1	60.11	12	+ screw lock	Perpendicular (to the PCB)	Solder tag	Socket	Tin plated	Tin plated	-	Socket enclosure - cable	Yes	50 pieces
-	-	-	-	63.92	-	-	-	-	-	-	63.92	13	-	-	Soldering	-	-	-	Thermoplastic	Socket enclosure - PCB	-	50 pieces
Data sheet	[Other] build-in	28	16	3.81	1.5	0.14	14	29.40	16.20	1	67.73	14	+ screw lock	Perpendicular (to the PCB)	Solder tag	Socket	Tin plated	Tin plated	-	Socket enclosure - cable	Yes	50 pieces
Data sheet	[Other] build-in	28	16	3.81	1.5	0.14	15	29.40	16.20	1	71.54	15	+ screw lock	Perpendicular (to the PCB)	Solder tag	Socket	Tin plated	Tin plated	-	Socket enclosure - cable	Yes	50 pieces
Data sheet	[Other] build-in	28	16	3.81	1.5	0.14	16	29.40	16.20	1	75.35	16	+ screw lock	Perpendicular (to the PCB)	Solder tag	Socket	Tin plated	Tin plated	-	Socket enclosure - cable	Yes	50 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

6.47 € ( 7.70 € )	7 working days
2.65 € ( 3.15 € )	7 working days
3.29 € ( 3.92 € )	7 working days
3.92 € ( 4.66 € )	7 working days
4.56 € ( 5.43 € )	7 working days
5.20 € ( 6.19 € )	7 working days
5.84 € ( 6.95 € )	7 working days
7.11 € ( 8.46 € )	7 working days
7.75 € ( 9.22 € )	7 working days
8.39 € ( 9.98 € )	25 working days
9.02 € ( 10.73 € )	7 working days
9.66 € ( 11.50 € )	7 working days
10.30 € ( 12.26 € )	7 working days
10.93 € ( 13.01 € )	7 working days
11.57 € ( 13.77 € )	7 working days
