Sensor / actuator connector (pre-fab) Plug, straight, Socket, straight
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|

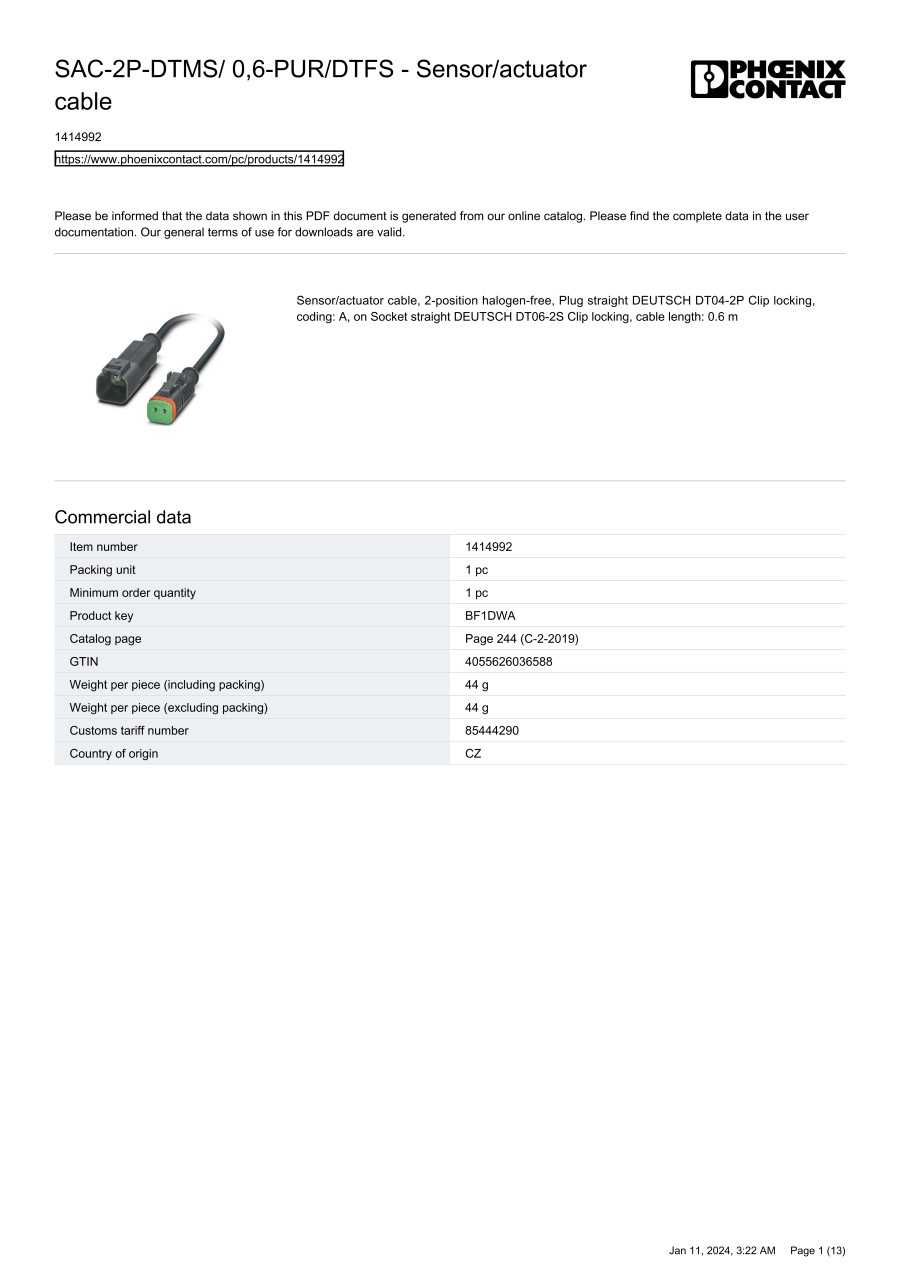

| 1414992 |
| 1415004 |
| 1415017 |
| 1415036 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Cable diameter (mm) | Max. temperature (°C) | Number of pins | Connection side A (sensors/actuators) | Sensor/actuator cable features | |
|---|---|---|---|---|---|---|---|---|---|---|
32.75 € | 6 | Quote | 4.8 | +85 | 2 | DEUTSCH DT04 | Halogen-free | |||
38.13 € | 5 | Quote | 5.2 | +80 | 3 | DEUTSCH DT06 | Halogen-free | |||
42.72 € | 5 | Quote | 5.7 | +80 | 4 | DEUTSCH DT06 | Halogen-free | |||
66.14 € | 3 | Quote | 6.5 | +80 | 6 | DEUTSCH DT06 | - |
Loading...
Basic information
| Connector Shape | straight | Cable length(m) | 0.60 | Outside diameter(mm) | 1.69 |
|---|---|---|---|---|---|
| Cross-section (sensor/actuator wiring)(mm²) | 0.75 | Min. temperature(°C) | -20 | Nominal current(A) | 8 |
| Nominal voltage(V) | 48 | IP rating | IP67 | Cable colour | Black |
| Coding | A | Jacket material | PUR | Contact material | Nickel plated |
| Connection side B (sensors/actuators) | DEUTSCH DT06 | Connector standard | DEUTSCH | Connector type | Socket |
| Seal type | Snap-in | Sensor/actuator wiring type (category) | Sensor/actuator connector (pre-fab) |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
