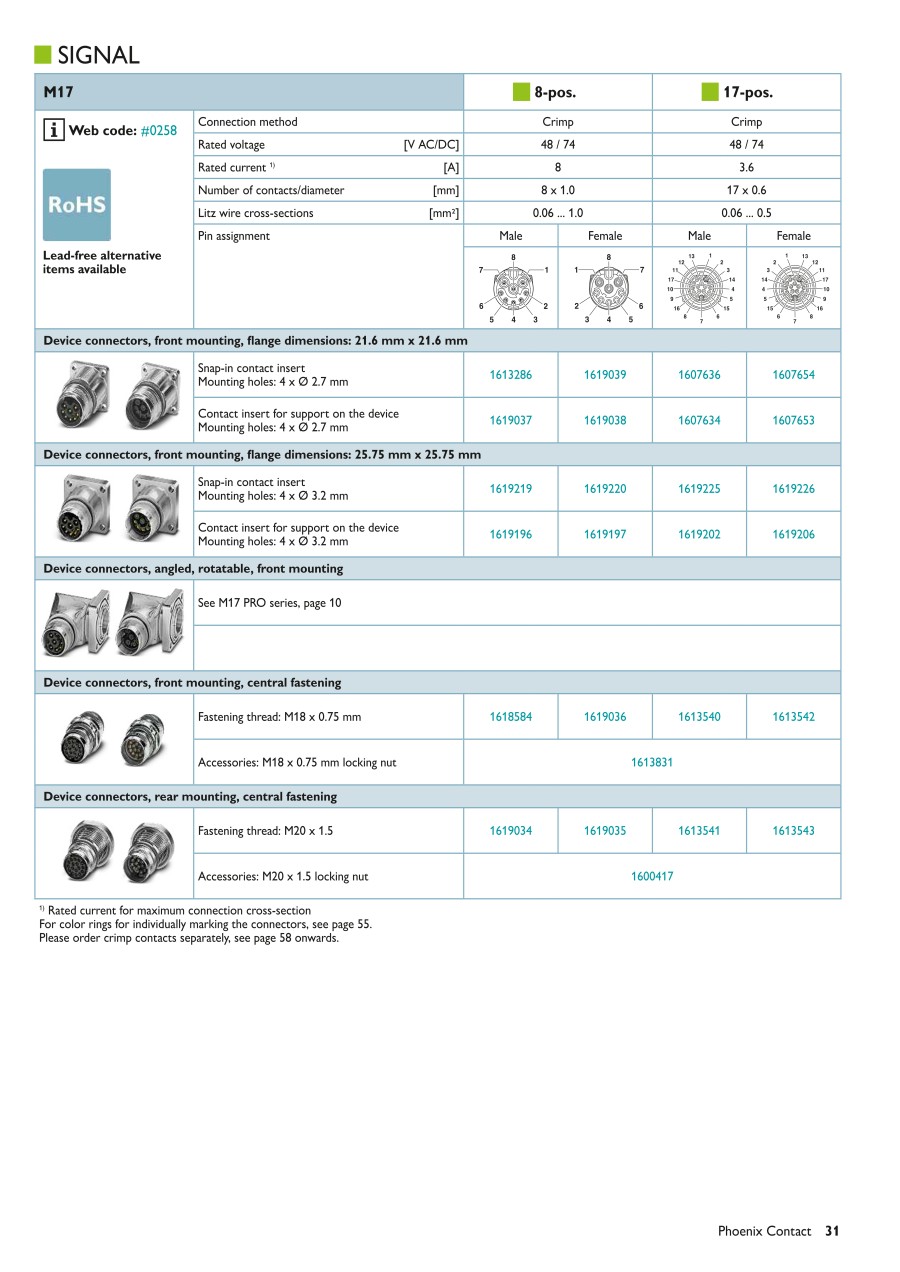

M17 Compact connector front wall mounting
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 1607653 |
| 1607654 |
| 1613286 |
| 1619037 |
| 1619038 |
| 1619039 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Number of pins | Connector type | Type (misc.) | |
|---|---|---|---|---|---|---|---|---|
9.74 € | 19 | 61 Days | 17 | Sleeve socket | Contact insert to support on the device | |||
9.74 € | 19 | 61 Days | 17 | Sleeve socket | Contact insert fits | |||
15.20 € | 12 | 82 Days | 8 | Sleeve plug | Contact insert fits | |||
9.08 € | 21 | 93 Days | 8 | Sleeve plug | Contact insert to support on the device | |||
9.56 € | 20 | 93 Days | 8 | Sleeve socket | Contact insert to support on the device | |||
9.56 € | 20 | 93 Days | 8 | Sleeve socket | Contact insert fits |
Loading...
Basic information
| Connection direction | straight pins | IP rating | IP67 | Contamination level | 3 |
|---|---|---|---|---|---|
| Test current(A) | Each Power Contact: 3.6 | Rated voltage | 60 V/AC/DC | Colour | Silver |
| Case material | Metal | Connection (components) | Crimp | Thread type connection side | M17 |
| Seal type | Speedcon |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
