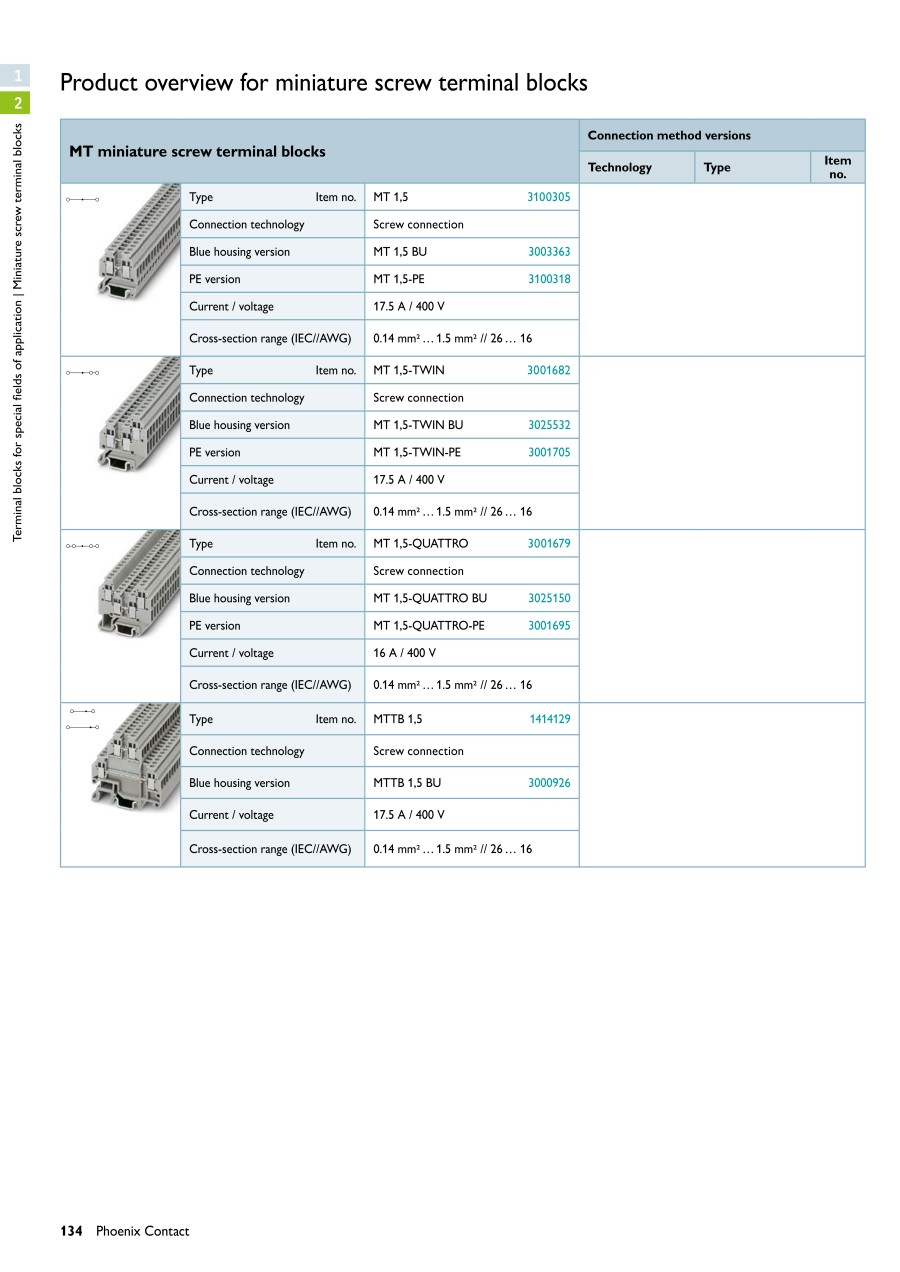

Micro terminal MT 1,5-QUATTRO
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Basic information
| Total number of pins(Pole) | 4 | AWG | 26 - 16 | Clamp width(mm) | 4.2 |
|---|---|---|---|---|---|
| Connector cross section (fixed)(mm²) | 0.14 - 1.5 | Connector cross-section (flexible)(mm²) | 0.14 - 1.5 | Nominal voltage(V) | 400 |
| Nominal voltage (details)(V) | 400 | Nominal current(A) | 16 | No. of rows | 2 |
| Product size (height)(mm) | 30 | Product size (length)(mm) | 33.5 | Product size (width)(mm) | 4.2 |
| Stripping length(mm) | 6(max.) | Connection (components) | Screws | Connector type (category) | Micro terminal |
| Insulation material | PA | Industrial goods | No |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
