Potential distributors ZPV
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
3031047
Basic information
| Total number of pins(Pole) | 2 | Color | Grey | AWG | 26 - 14 |
|---|---|---|---|---|---|
| Clamp width(mm) | 5.2 | Connector cross section (fixed)(mm²) | 0.14 - 4 | Connector cross-section (flexible)(mm²) | 0.14 - 2.5 |
| Contamination level | 3 | Nominal voltage(V) | 500 | Nominal current(A) | 24 |
| No. of rows | 2 | Product size (height)(mm) | 51 | Product size (length)(mm) | 141 |
| Product size (width)(mm) | 5.2 | Stripping length(mm) | 10(max.) | Flammability rating | V0 |
| Connection (components) | Pull spring | Connector type (category) | Potential distributor | Insulation material | PA |
| Industrial goods | Yes |

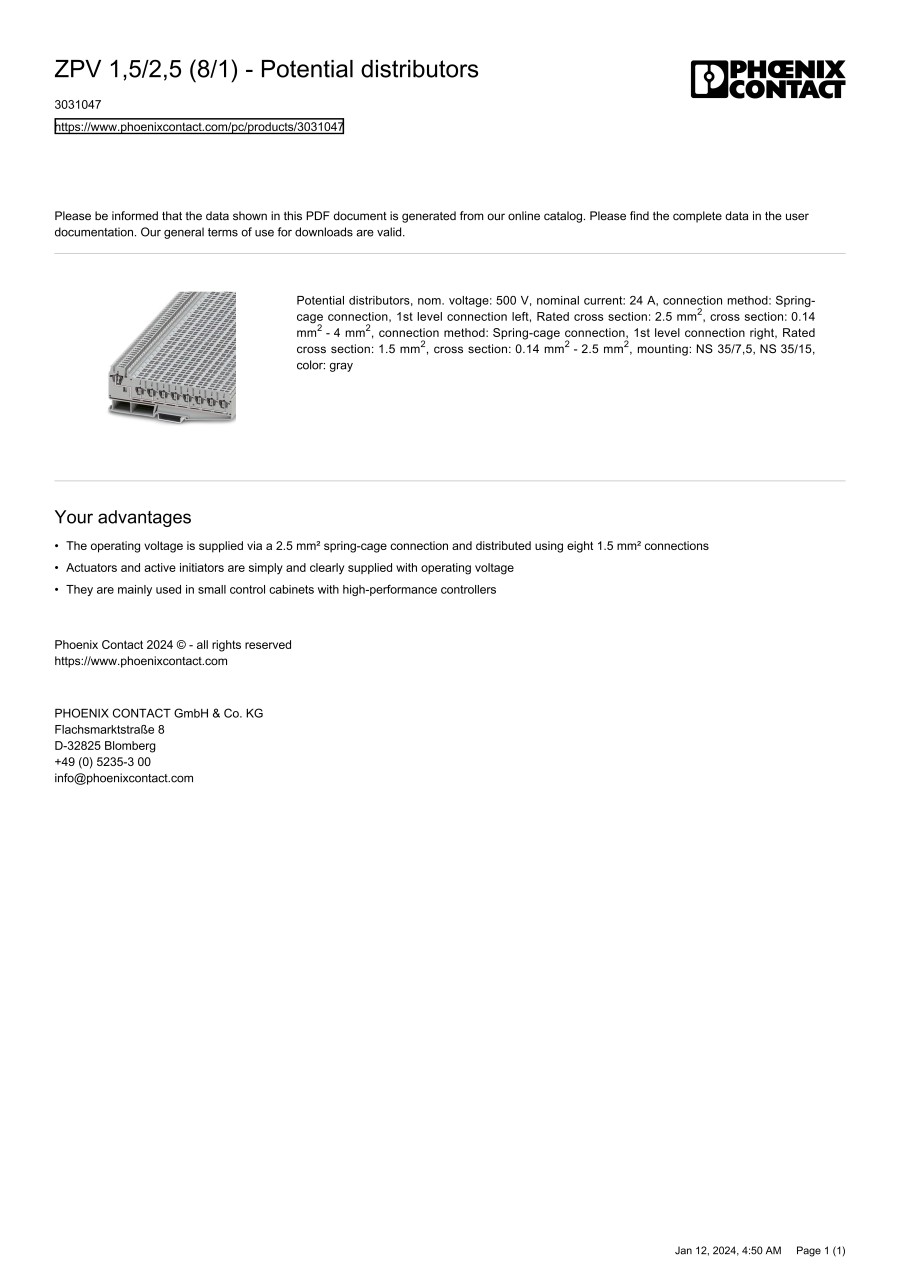

This page is Potential distributors ZPV, part number 3031047.
You can find the detail information about specifications and dimensions on part number 3031047.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
