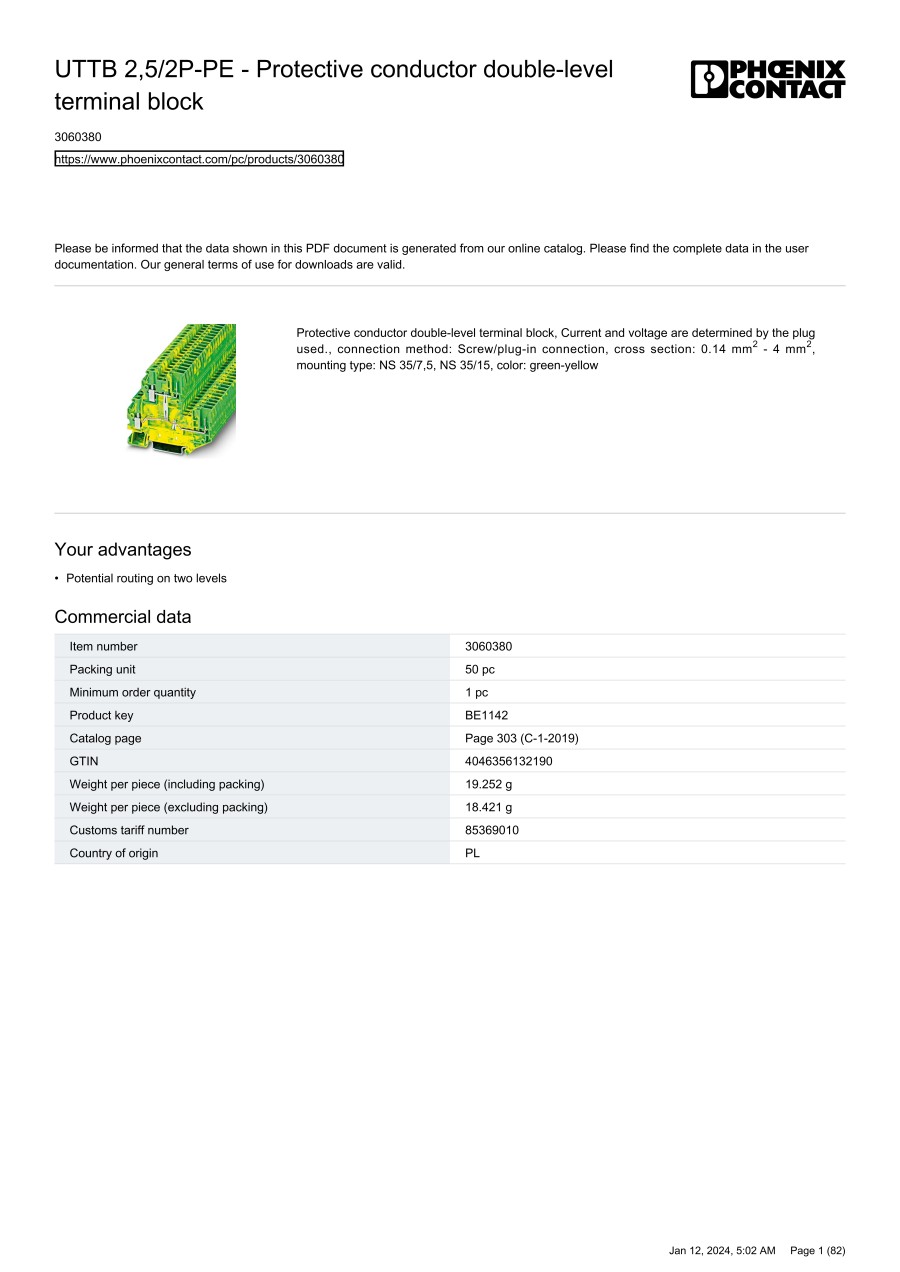

Protective conductor double-level terminal block UTTB 2,5
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
3060380
Basic information
| Total number of pins(Pole) | 4 | Color | Green-yellow | AWG | 26 - 12 |
|---|---|---|---|---|---|
| Clamp width(mm) | 5.2 | Connector cross section (fixed)(mm²) | 0.14 - 4 | Connector cross-section (flexible)(mm²) | 0.14 - 4 |
| No. of rows | 2 | Product size (height)(mm) | 65 | Product size (length)(mm) | 69.9 |
| Product size (width)(mm) | 5.2 | Stripping length(mm) | 9(max.) | Flammability rating | V0 |
| Connection (components) | Screws | Connector type (category) | Dualport PG terminal | Insulation material | PA |
| Industrial goods | Yes |
This page is Protective conductor double-level terminal block UTTB 2,5, part number 3060380.
You can find the detail information about specifications and dimensions on part number 3060380.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
