Ground modular terminal block UKH 50-PE / N【5 Pieces Per Package】
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
3009163
Basic information
| Total number of pins(Pole) | 2 | Color | Green-yellow | AWG | 6 - 1 |
|---|---|---|---|---|---|
| Clamp width(mm) | 40 | Connector cross section (fixed)(mm²) | 16 - 50 | Connector cross-section (flexible)(mm²) | 25 - 50 |
| Nominal voltage(V) | 1000 | Nominal current(A) | 150 | No. of rows | 1 |
| Product size (height)(mm) | 83.5 | Product size (length)(mm) | 70.5 | Product size (width)(mm) | 40 |
| Stripping length(mm) | 24(max.) | Flammability rating | V2 | Connection (components) | Screws |
| Connector type (category) | PG terminal | Insulation material | PA | Industrial goods | Yes |

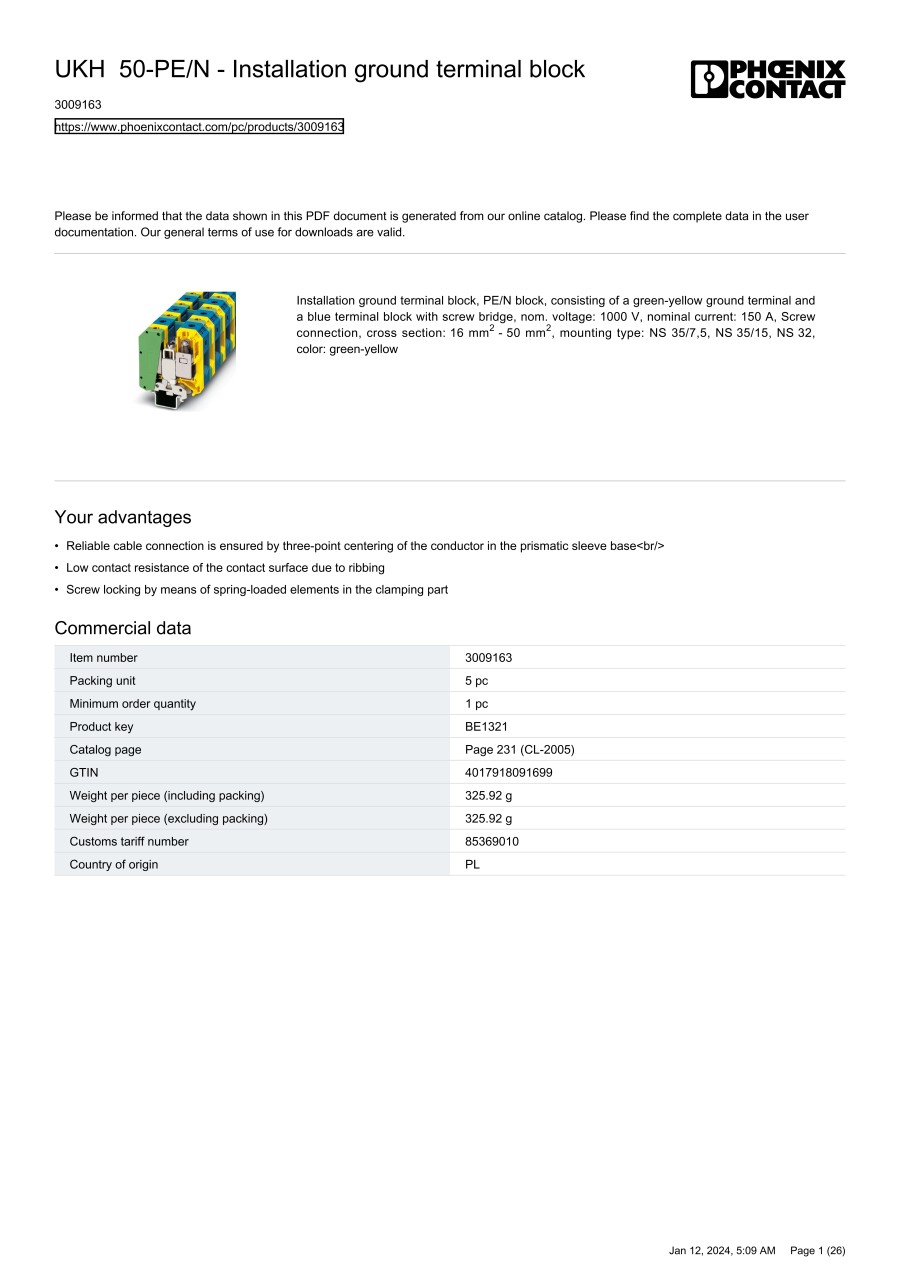

This page is Ground modular terminal block UKH 50-PE / N, part number 3009163.
You can find the detail information about specifications and dimensions on part number 3009163.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
