Configure

Total number of pins(Pole)
- 2
AWG
- 16 - 4
Clamp width(mm)
- 18
- 36
- 54
Connector cross section (fixed)(mm²)
- 1.5 - 25
- 1.50 - 25
Connector cross-section (flexible)(mm²)
- 1.5 - 25
- 1.50 - 25
Nominal voltage(V)
- 60
- 600
- 690
Product size (width)(mm)
- 18
- 54
Stripping length(mm)
- 12(max.)
Connector type (category)
- Fuse box feed-trough terminal
- Fuse serial terminal
Insulation material
- PA
Industrial goods
- Yes
Est. shipping days
- All
- Within 7 working days
- Within 75 working days

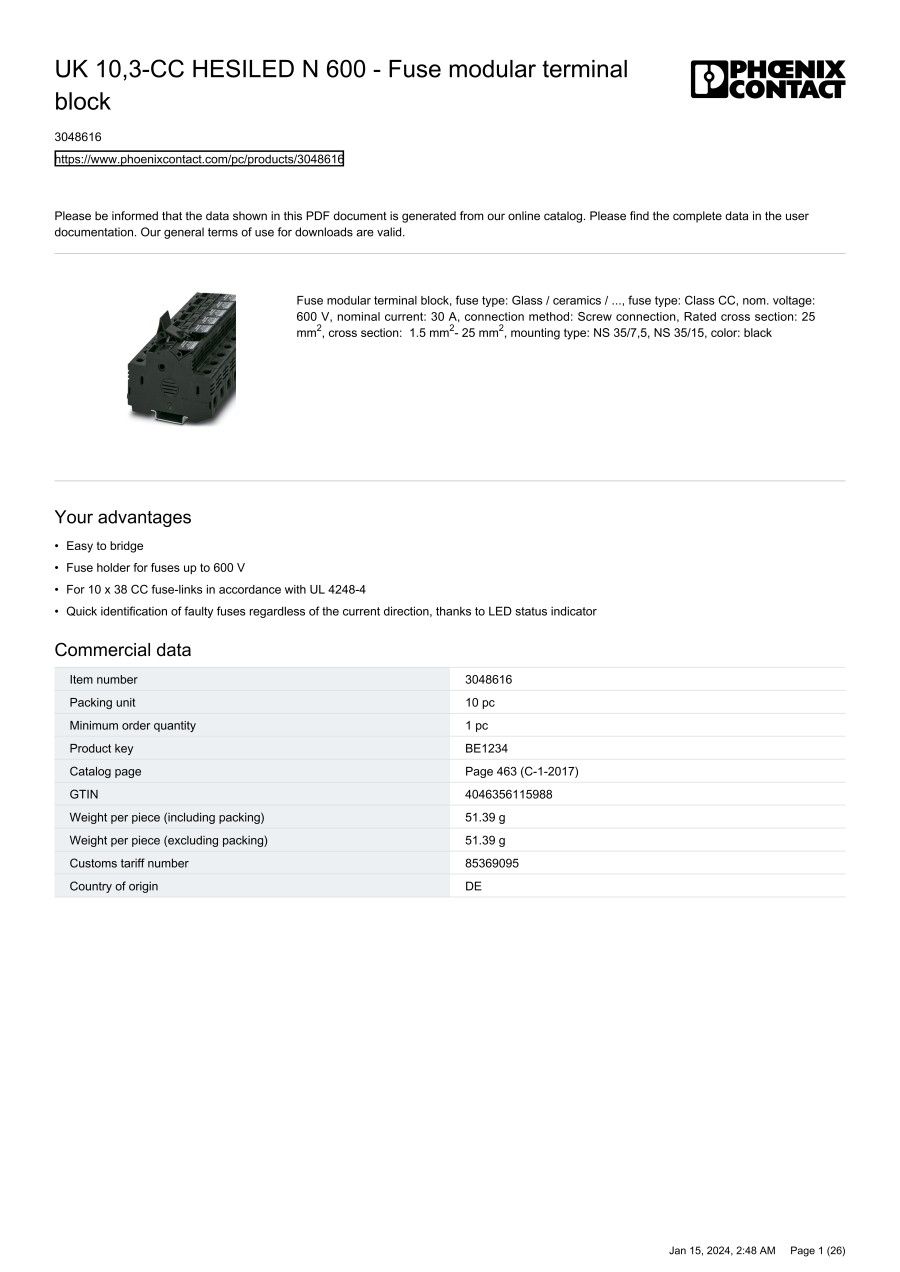

Fuse modular terminal block UK 10,3 CC HESILED

Catalog

Part number:

Still undefined. 4 possible part numbers found.

Part number list
Catalog

Part number list

Number of items

Part number

Total number of pins

(Pole)

AWG

Clamp width

(mm)

Connector cross section (fixed)

(mm²)

Connector cross-section (flexible)

(mm²)

Nominal voltage

(V)

Product size (width)

(mm)

Stripping length

(mm)

Connector type (category)

Insulation material

Industrial goods

Minimum order quantity

Data sheet	2	16 - 4	18	1.5 - 25	1.5 - 25	600	18	12(max.)	Fuse serial terminal	PA	Yes	10 pieces
Data sheet	-	-	36	1.50 - 25	1.50 - 25	60	-	-	Fuse box feed-trough terminal	-	-	5 pieces
Data sheet	2	16 - 4	54	1.5 - 25	1.5 - 25	600	54	12(max.)	Fuse serial terminal	PA	Yes	3 pieces
Data sheet	2	16 - 4	18	1.5 - 25	1.5 - 25	690	18	12(max.)	Fuse serial terminal	PA	Yes	10 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

38.48 € ( 45.79 € )	75 working days
79.58 € ( 94.70 € )	75 working days
118.72 € ( 141.28 € )	7 working days
34.98 € ( 41.63 € )	75 working days
